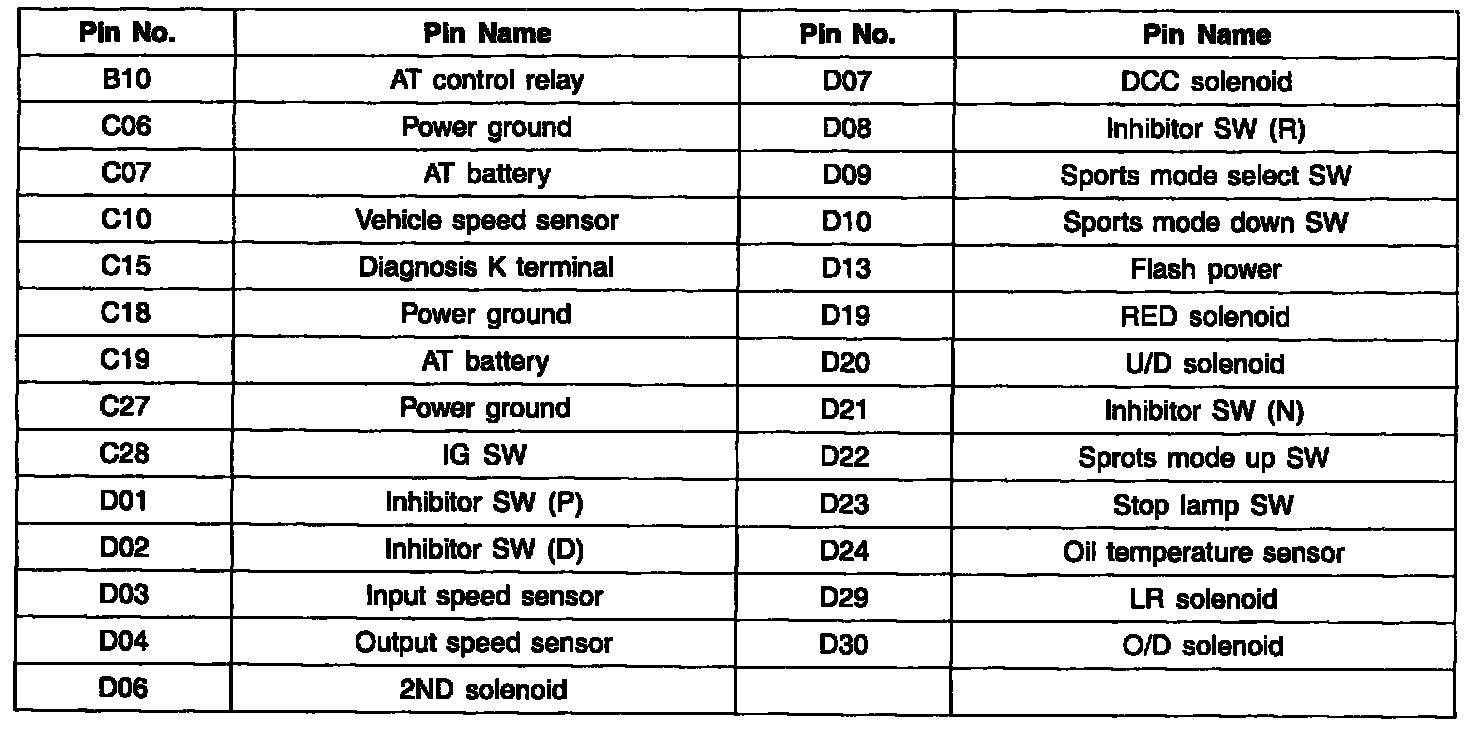

Combined ECM (Only at) Connector Pin No. and Name
Combined ECM (Only at) Connector Pin No. and Name
COMBINED ECM (ONLY AT) CONNECTOR PIN NO. AND NAME
