Vehicle Speed Sensor Check
CHECKING VEHICLE SPEED SENSOR1. The sensor will detect the vehicle running speed at speedometer's gear part.

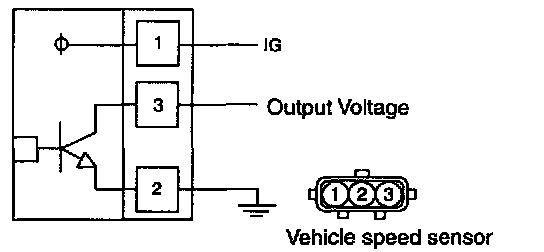

2. Remove the speed sensor and measure resistance as shown on fig.
Standard value: 3 - 10 kOhms
3. Turn axis of the speed sensor and check the output voltage between terminal No.2 and 1. (1 rev=4pulses)
