In/Output Shaft Speed Sensor Check

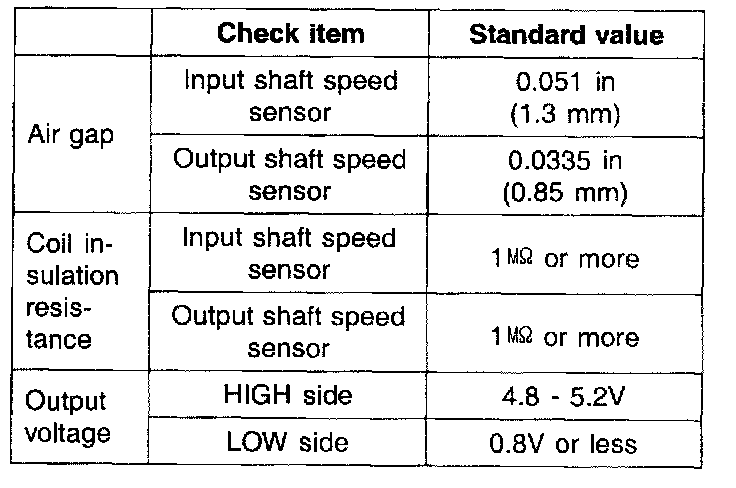

CHECKING INPUT AND OUTPUT SHAFT SPEED SENSOR
1.

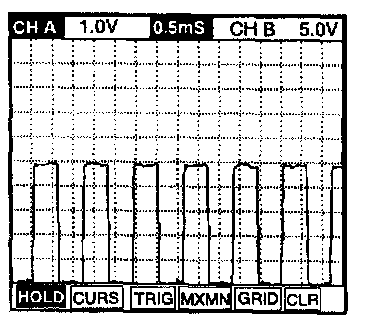

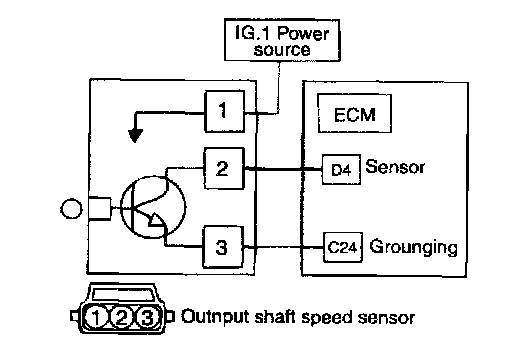

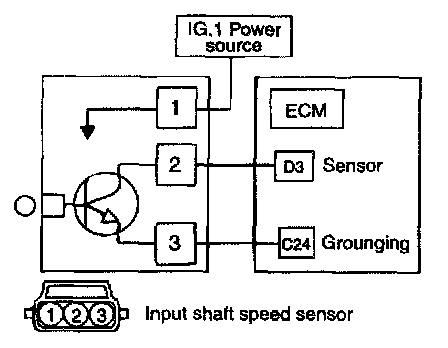

Measure the wave pattern between No.2 and 3 using Hi-Scan.
