A/T Control Relay Checking

A/T CONTROL RELAY CHECKING
1. Remove the A/T control relay in the fuse box.





2. Use jumper wires to connect A/T control relay terminal (1) to the battery (-) terminal and terminal (3) to the battery (+) terminal.

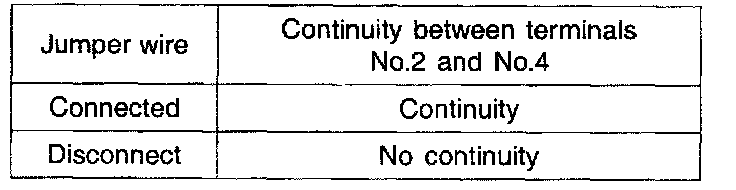

3. Check the continuity between terminal (2) and terminal (4) of the A/T control relay when the jumper wires are connected to and disconnected from the battery. Jumper wires are connected to and disconnected from the battery.
4. If there is a problem, replace the A/T control relay.
