Mechanical Specifications
SPECIFICATIONS

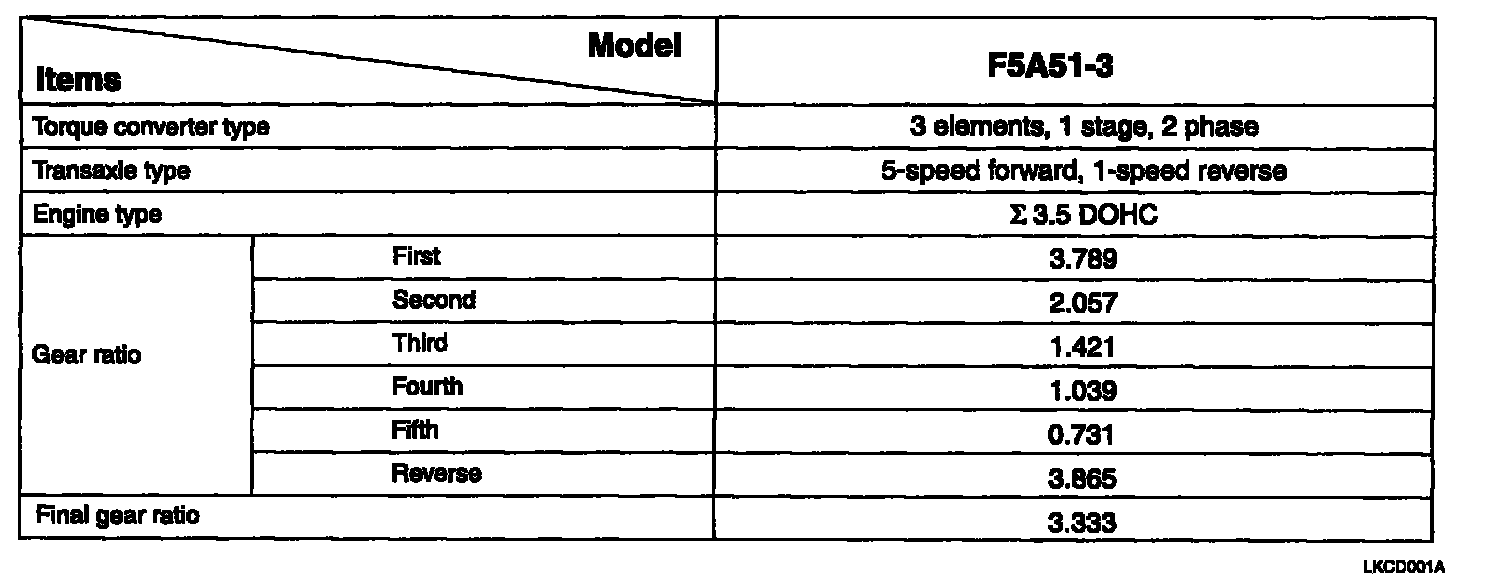

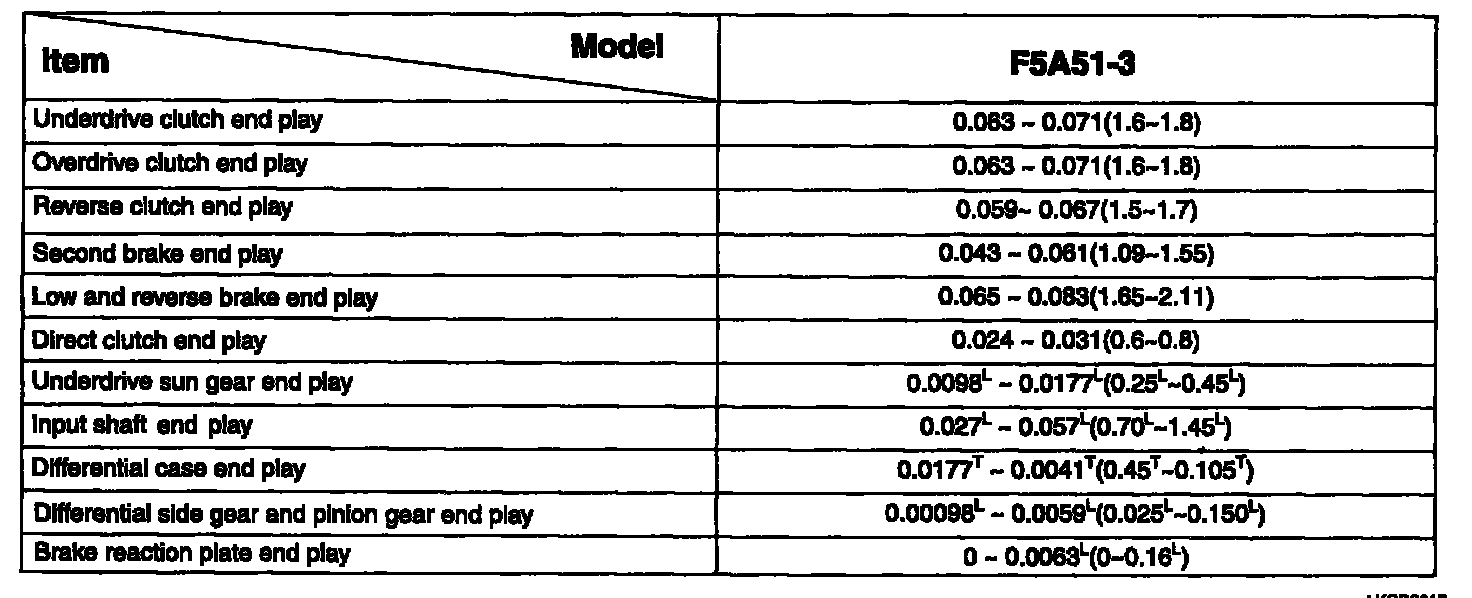

SERVICE SPECIFICATIONS

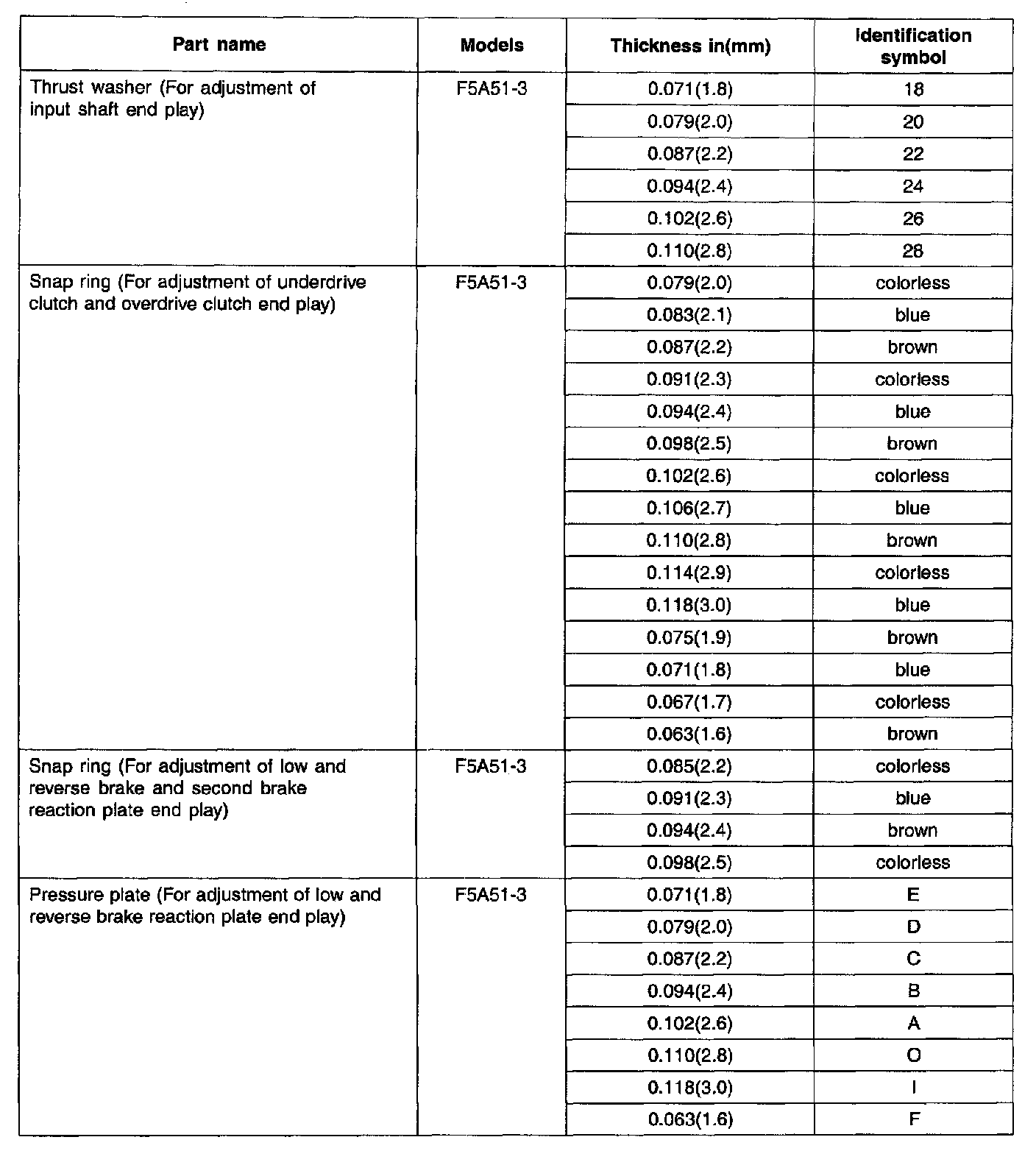

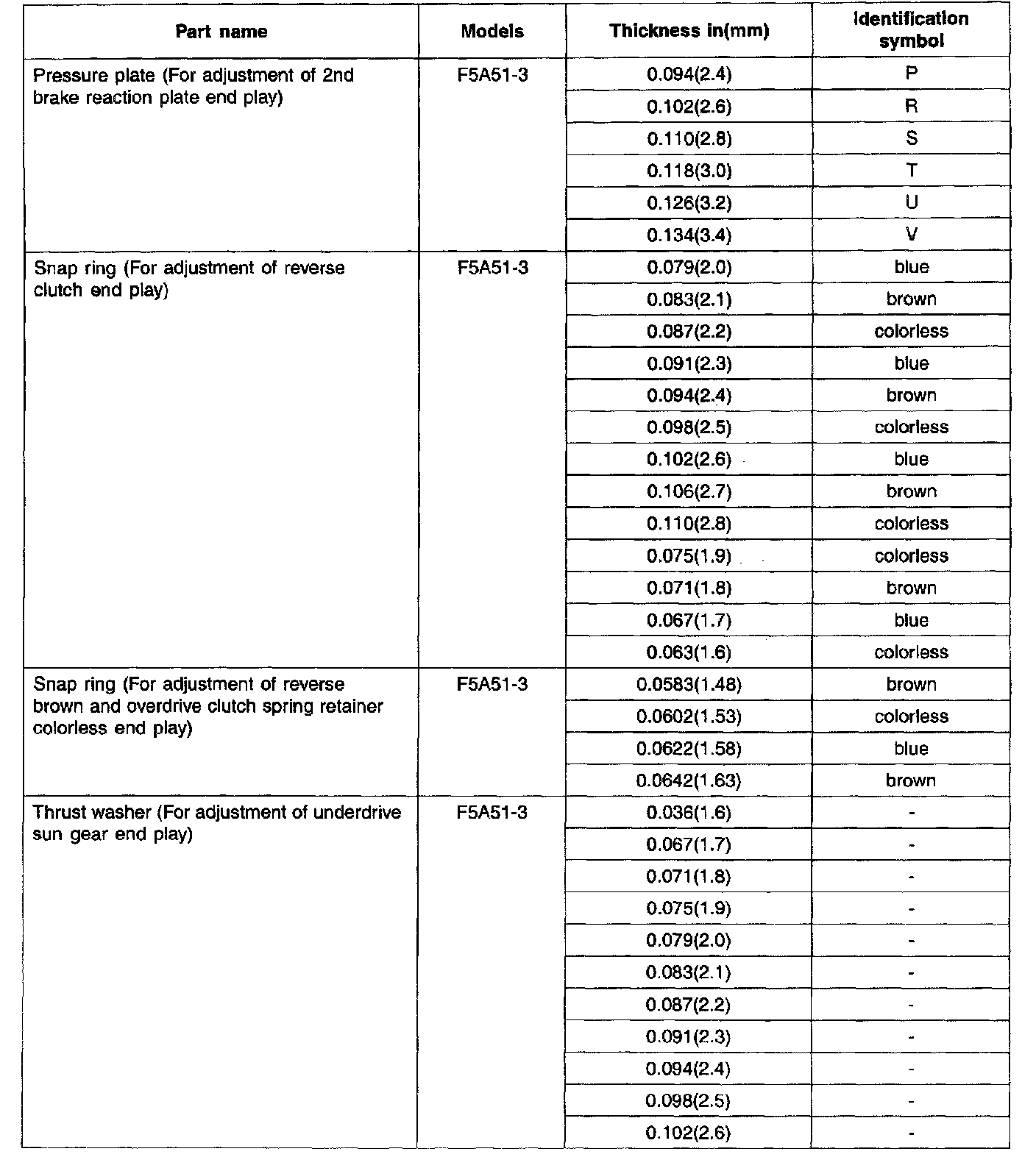

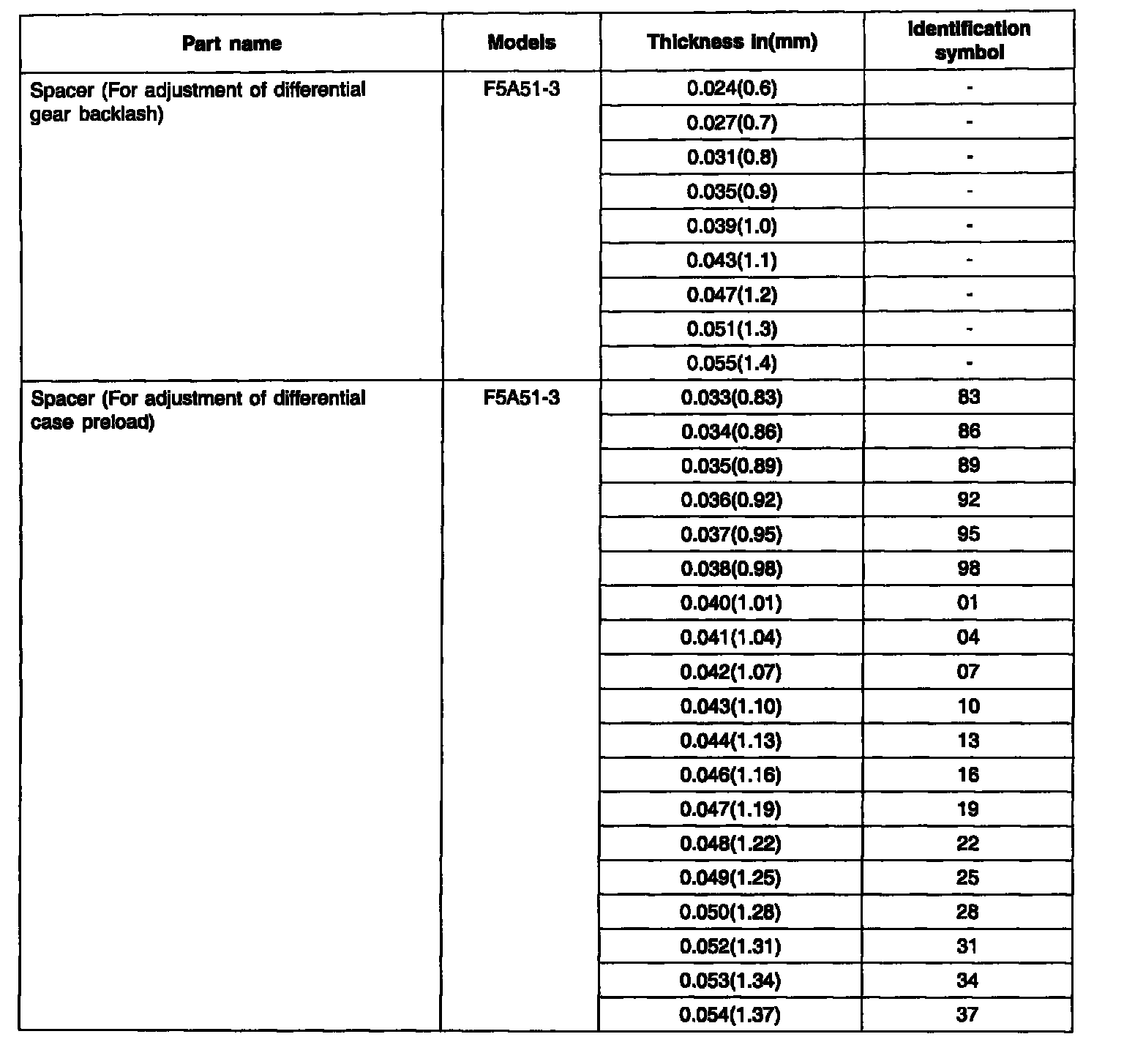

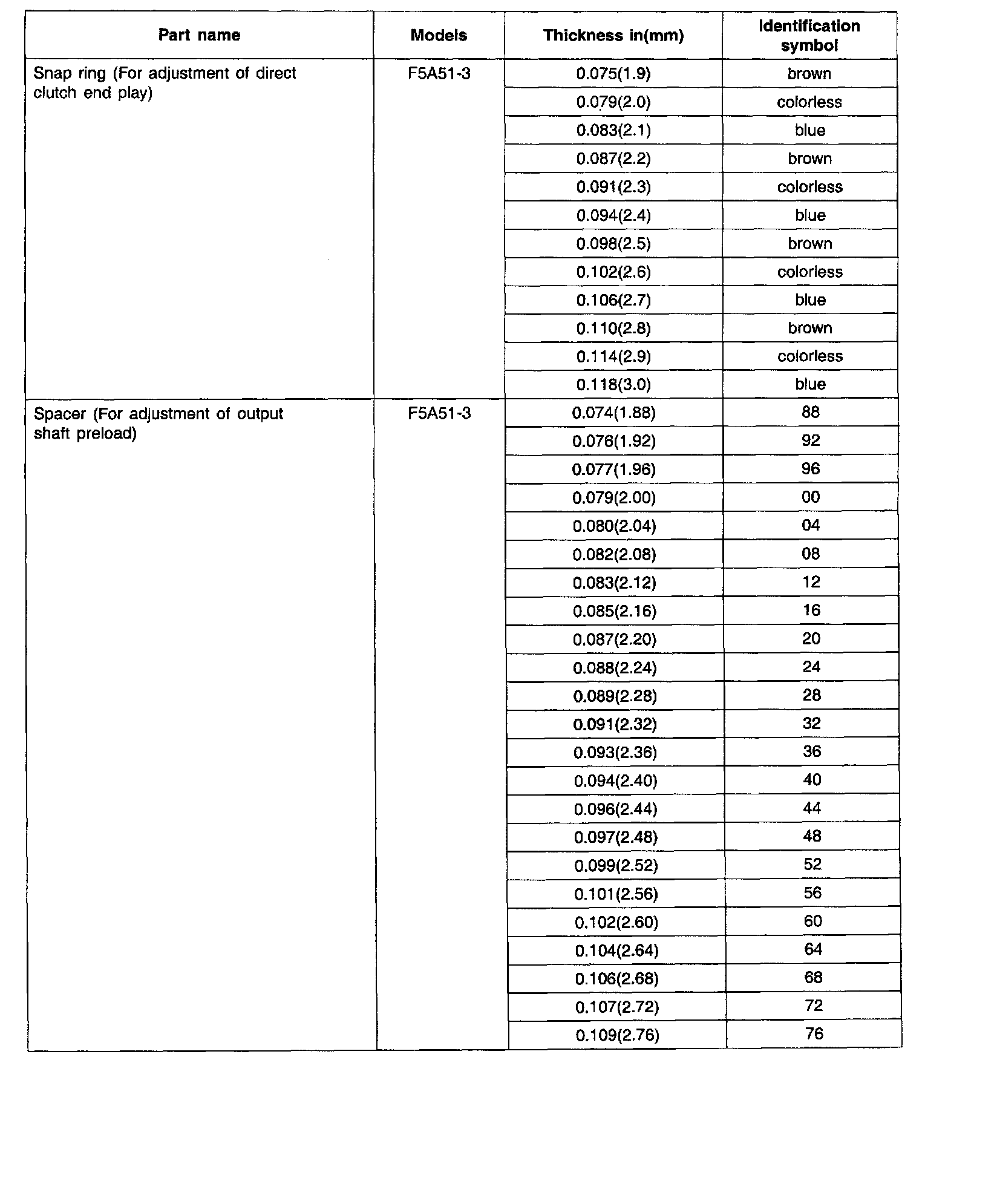

SNAP RING, SPACER, THRUST WASHER AND

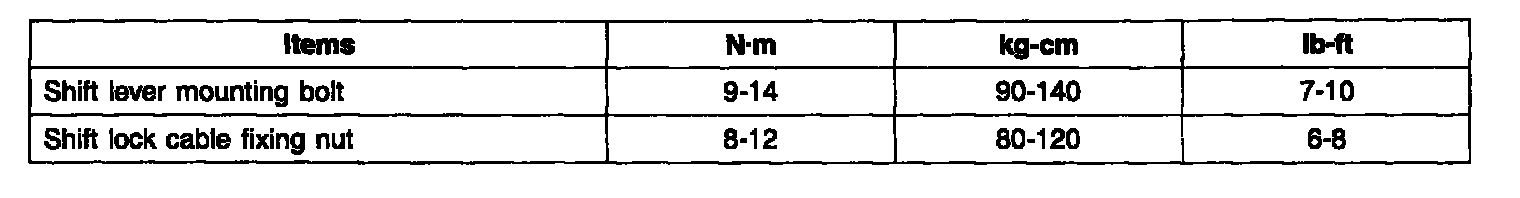

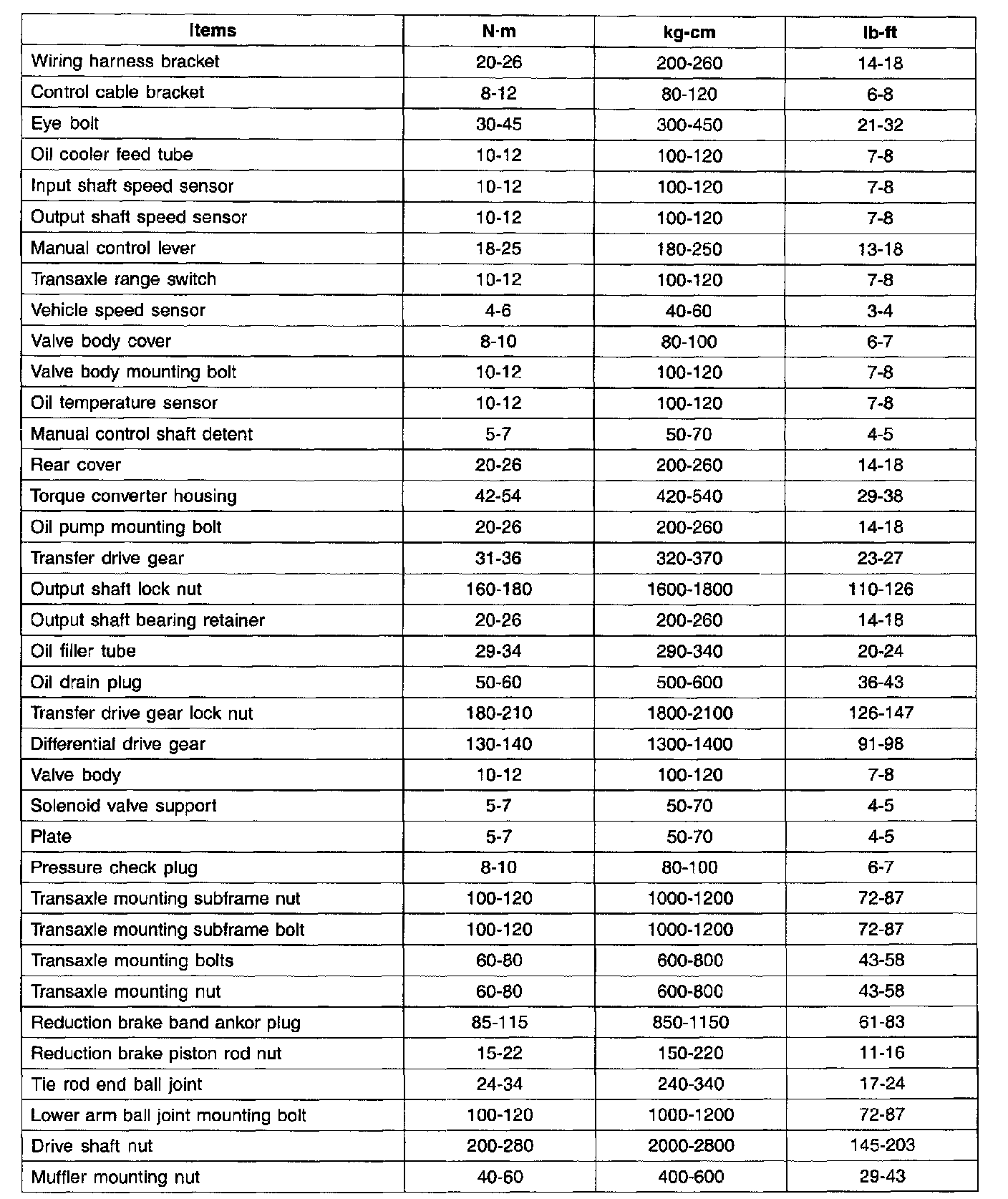

TIGHTENING TORQUE
WARNING: ALWAYS FOLLOW TORQUE TIGHTENING LEVELS. FAILURE TO FOLLOW SUCH LEVELS CAN RESULT IN PARTS BREAKING IF OVER-TIGHTENED OR LOOSENING IF UNDER-TIGHTENED. IN EITHER CASE, SERIOUS PERSONAL INJURY OR DEATH COULD RESULT TO THE VEHICLE OCCUPANTS.
