Shifter A/T: Testing and Inspection
SHIFT LEVERINSPECTION
1. Adjusting method for control cable.
1) Connect "P"shift lock cable according to adjusting procedure for "P" shift lock cable.
2) As shown in fig. 1 set room side lever and T/M side lever to N position.
3) Connect the end part of ATM cable to at lever.
4) Connect T/M side lever to cable in following orders.
1. Push cable at the transmission side slightly and cable must have no free play.
2. Tighten nut with specified torque.
5) After adjusting according to (2)-(4), check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.
2. Installation procedure of lock cam and check item

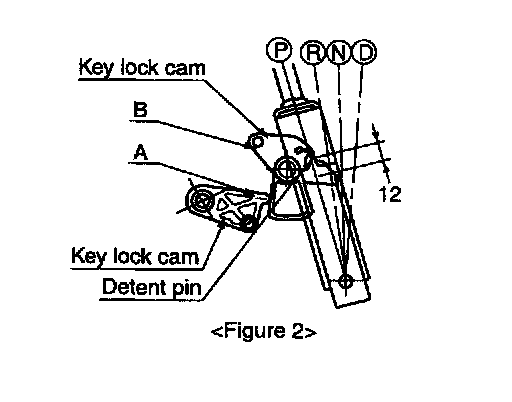

1) Move A/T lever to "P" position to set key lock cam and shift lock cam as shown Fig.2.
1. Check that key lock cam is located at "B" by detent pin.
2. Check that shift lock cam is located at "A".
3. Adjusting procedure for "P" shift lock cable
1) Check that each lock cam is shown in fig.2.
2) Install shift lock cable in position according to this drawing. In this case, shift lock cable must be fixed to brake pedal in position.

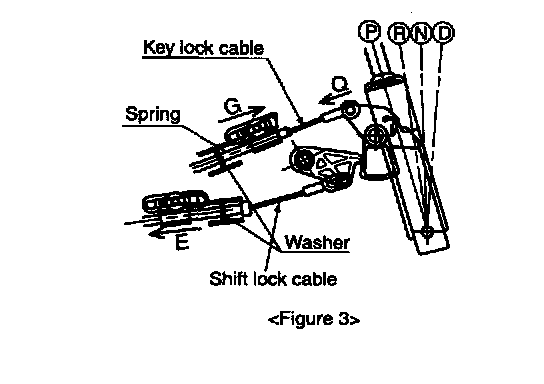

3) Temporarily install shiftlock cable to A/T lever assy as shown in Fig. 3. Securely insert cable end into fixing point of shift lock cam.
4) Doing the work of (3), slightly pull outer casing of shift lock cable to direction "E" to stretch cable. In this case, shift lock cam must not move.
5) After checking portion of cable end touches cable fixing pin of shift lock cam. Fix outer casing with nut.
6) Check the installation condition of the shift lock cam as shown Fig. 4.
4. Adjusting and install procedure for key inter lock cable
1) Install key inter lock cable in position according to this drawing.
2) After assembling C/PAD module and inserting the key into the lock cylinder insert the lock cylinder into the lock body through the C/PAD key hole with "ACC" condition.
3) After assembling key inter lock cable and lock body assembly. Fix the key inter lock cable with set screw.
4) Change the key "LOCK" state. And check at the lever is located at "P" position. At this time, slightly push the key lock cam to direction "Q".

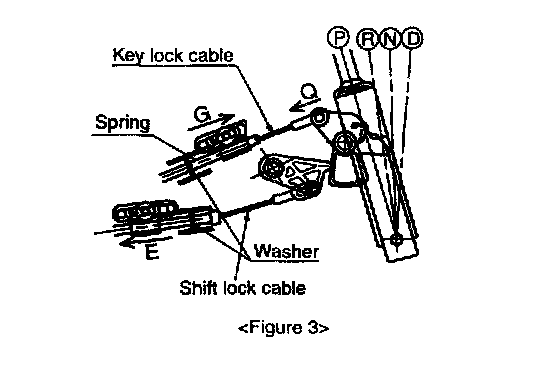

5) After setting the key inter lock cable as Fig 3. Fix the cable with nut. At this moment, the key inter lock cable shall not be pulled to direction "Q".
5. Check points of shift lock system
1) With shift lever at "P" position and brake pedal not depressed Push button cannot be operated.(Shift lever cannot be shifted to other positions from P0 push button can be operated at the positions except P.
2) With IG key at the position other than "LOCK" (May be at "ACC") and brake pedal stroke 0.6 - 0.98 inch (15 - 25 mm) (With shift lever at P position). Push button can be operated and shift lever can be shifted smoothly to other from P.
3) With brake pedal not depressed. Shift lever can be shifted smoothly to "P" positions from other positions.
4) Brake pedal must be operated smoothly without catching at all positions.
6. Check points of key interlock system.
1) With IG. Key at "LOCK" position and brake pedal depressed, push button cannot be operated.
2) IG. Key must not be turned to "LOCK" position.
3) When Shift lever shifted to "P" position again. IG. Key must be turned to "LOCK" position smoothly.
