Shift Cable: Adjustments

CONTROL CABLE ADJUSTMENT
1. Move the shift lever to position "N".





2. Release the adjusting nut at the connection between the transaxle control cable and the manual control lever and separate them.
3. Move the manual control lever to position "N".

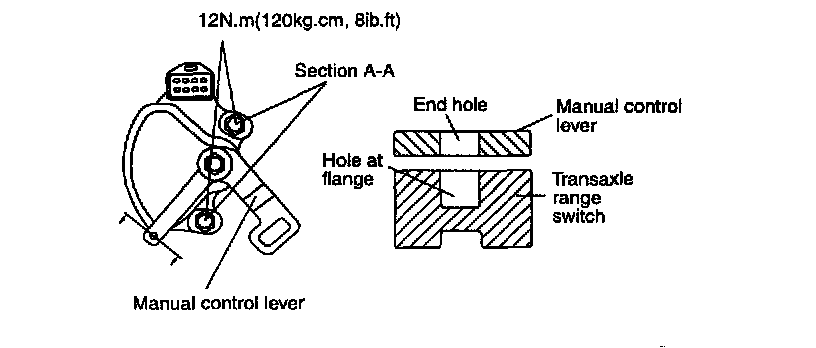

4. Insert +0.197 inch (+5 mm) pin into holes +0.1 97 inch (+5 mm) transaxle range switch and the manual control lever. Adjust the transaxle range switch and manual control lever at position "N" correctly.

CAUTION: If you do not insert ±0.197inch (±5 mm) pin, position "N" may move when tightening the adjusting nut.
