Valve Body

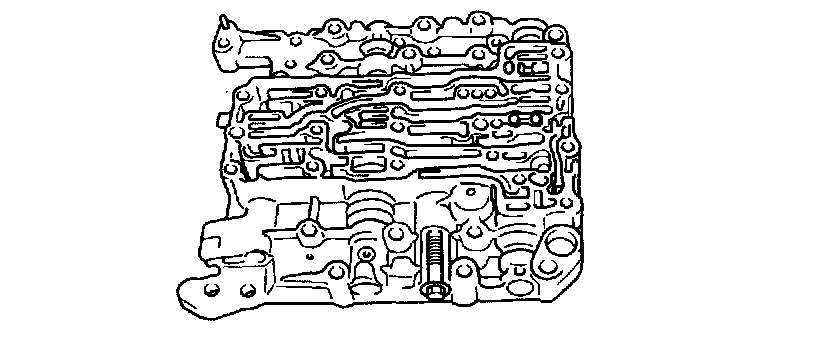

VALVE BODY

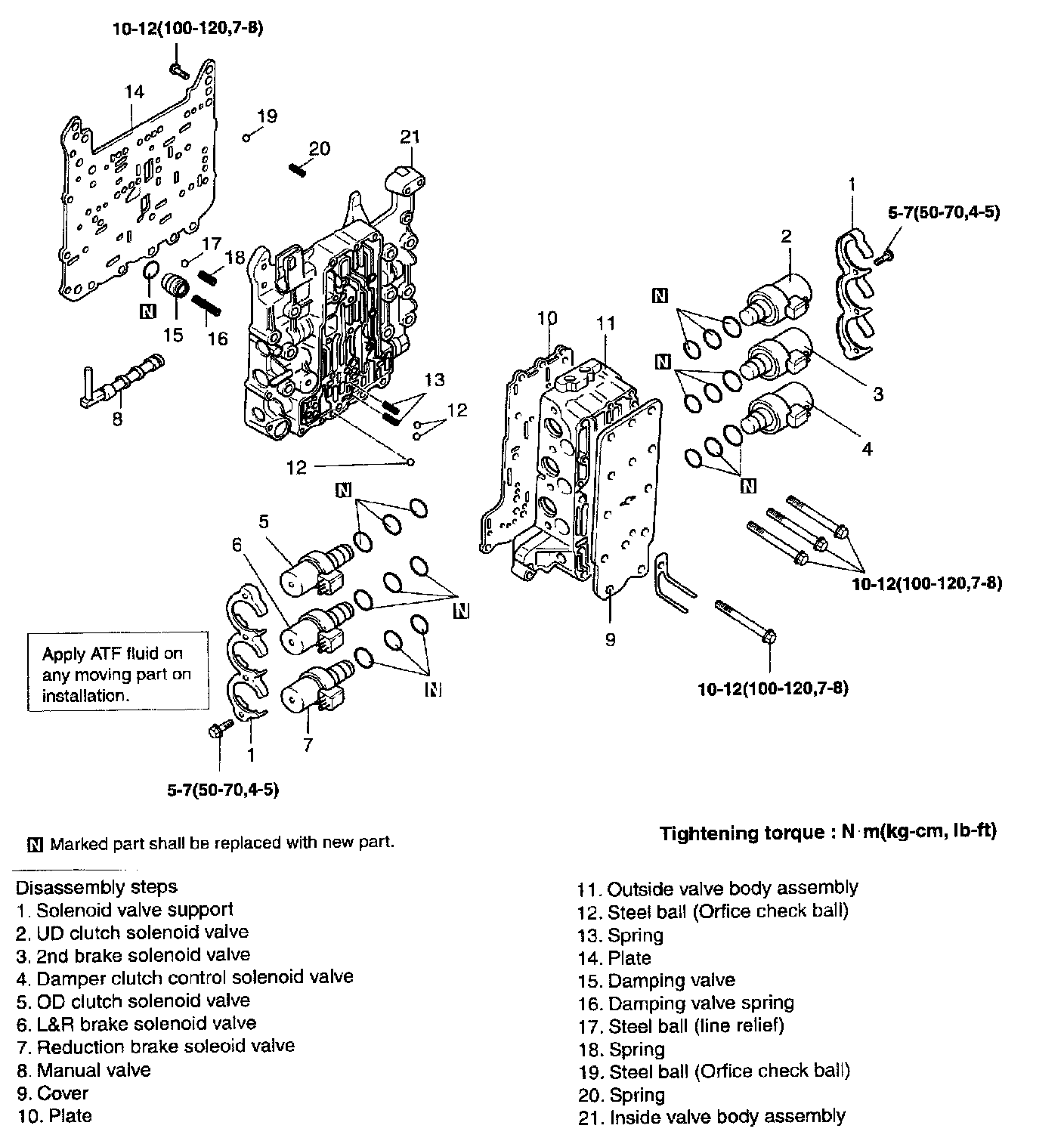

COMPONENTS(A)

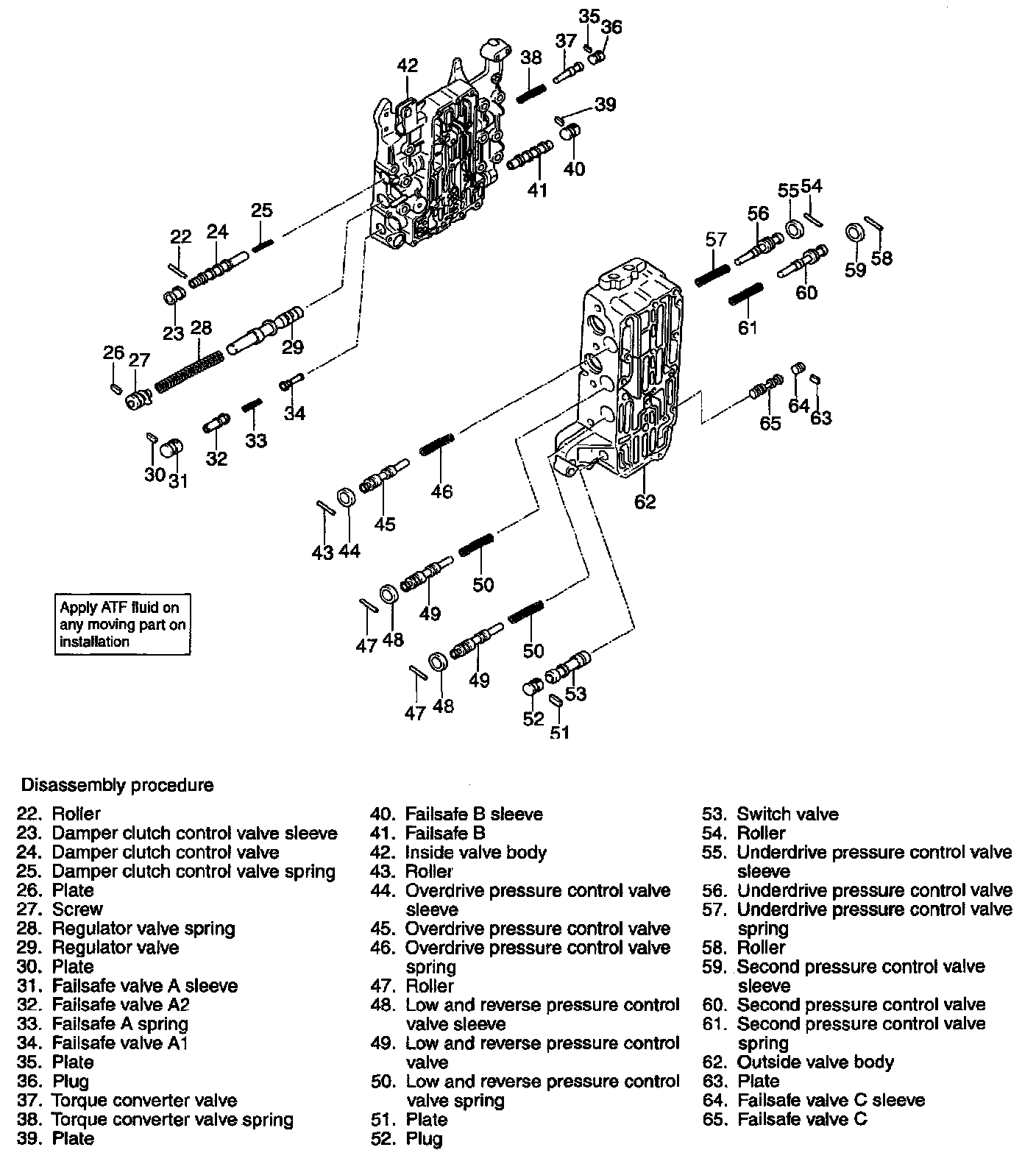

COMPONENTS(B)

DISASSEMBLY

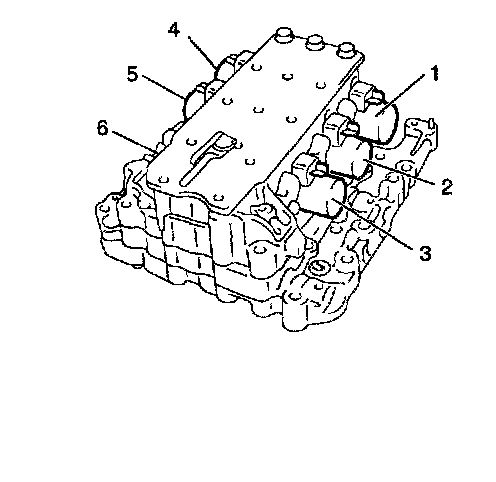

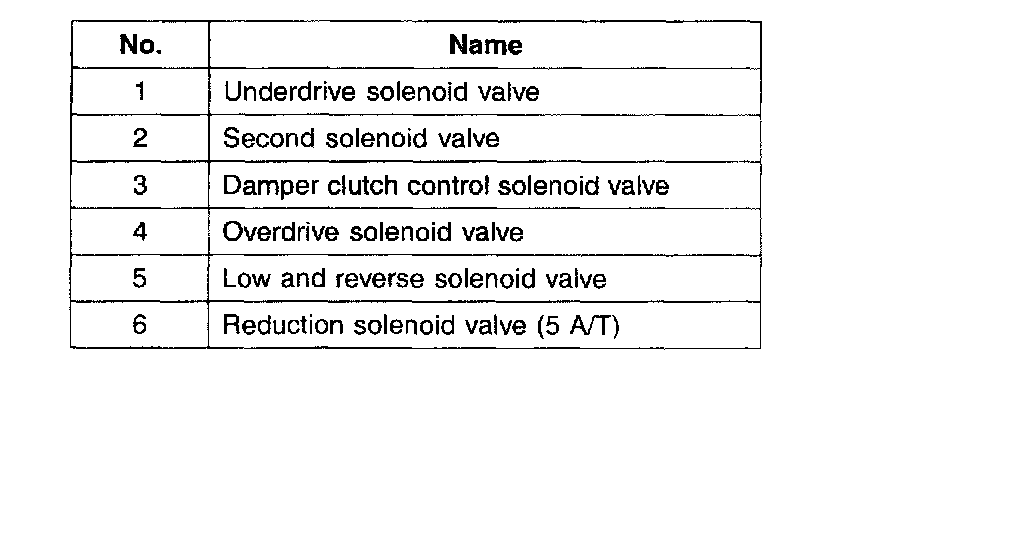

1. Remove each solenoid valve.
Mark each installation point with white paint or so.

REASSEMBLY

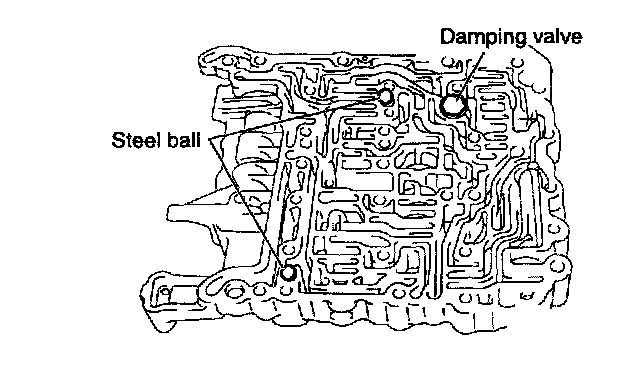

1. Install the spring/steel ball/damping valve/damping





2. Install the spring/steel ball.
3. Install each solenoid valve.
1) Apply ATF or white Vaseline on the O-ring and assemble it caring not to damage it.








2) Remove the marking made in disassembly and install them.
