Second Brake

SECOND BRAKE

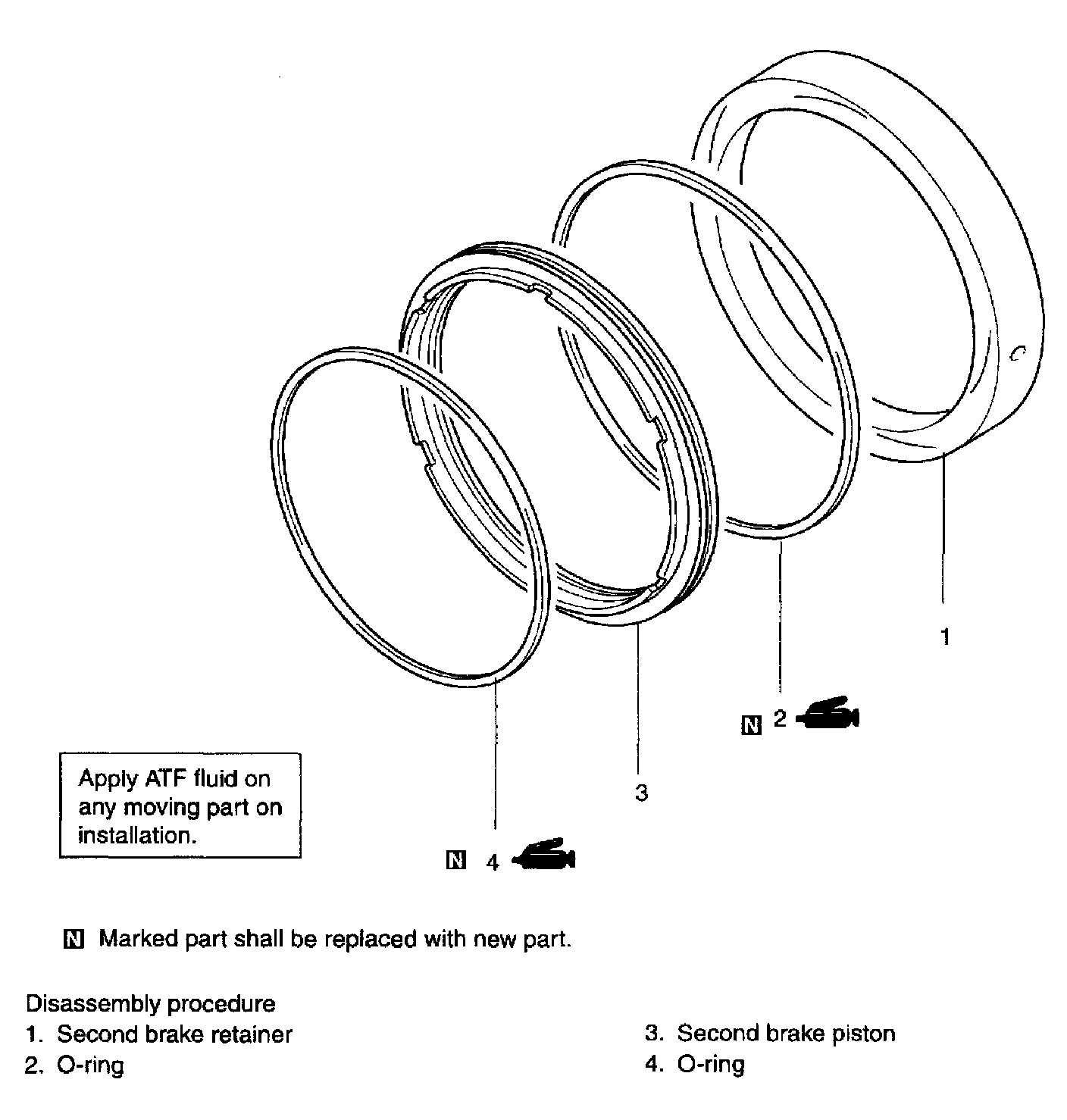

COMPONENTS

ASSEMBLY
1. Install the O-ring.
Apply ATF or white Vaseline on the seal ring and install it caring not to damage it.
