Planetary Gear Set

PLANETARY GEAR SET

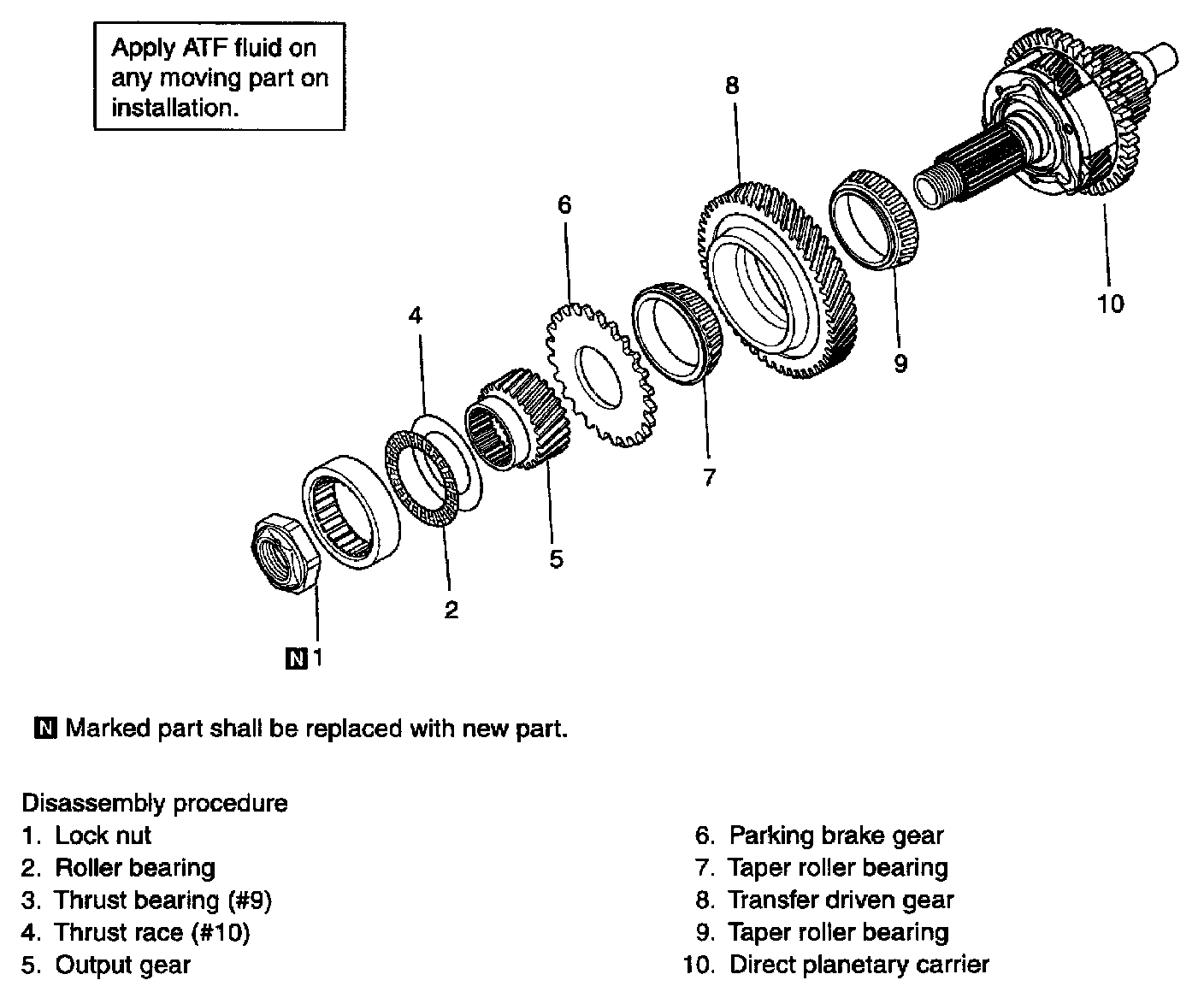

COMPONENTS

DISASSEMBLY

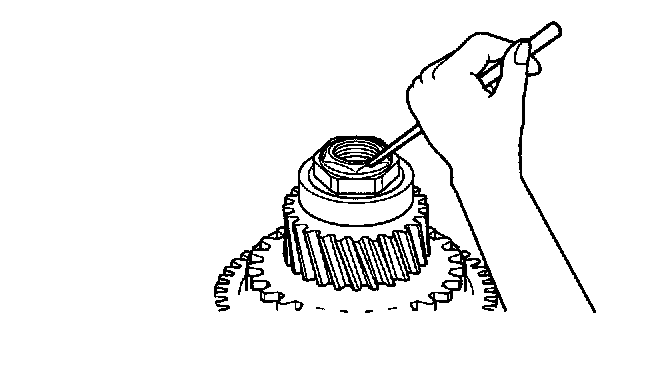

1. Cock the lock nut only enough to turn.

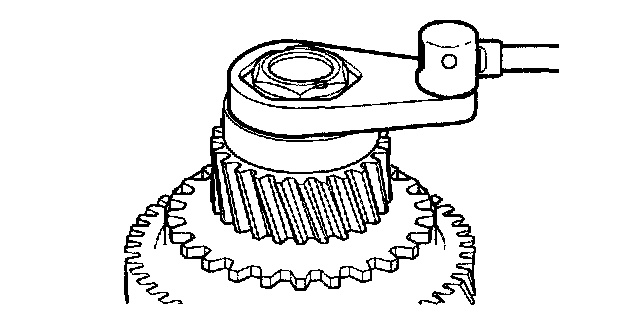

2. Remove the lock nut.

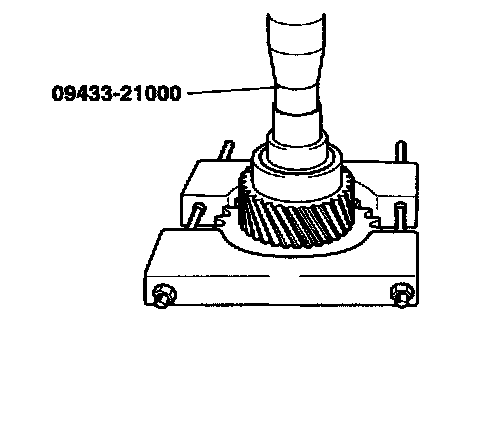

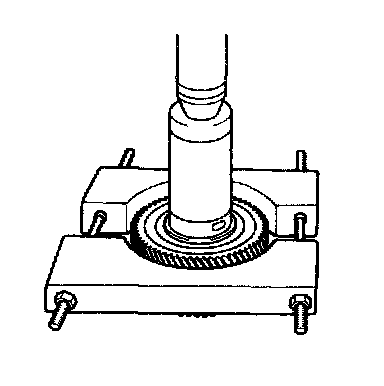

3. Remove the output gear and the parking brake gear using the special tool (09433-21000).

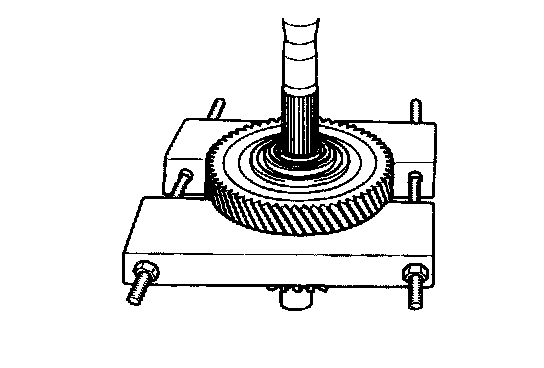

4. Remove the taper roller bearing and the transfer driven gear.





5. Remove the inner taper roller bearing.

REASSEMBLY

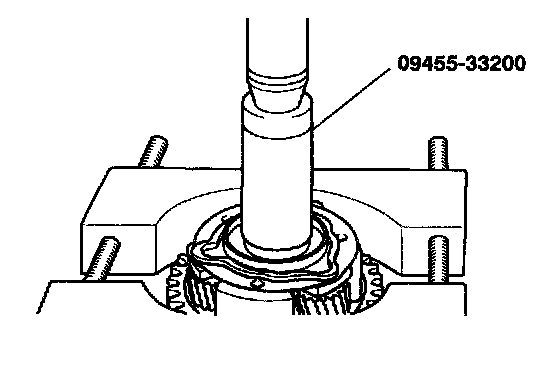

1. Install the inner taper roller bearing using the special tool (09455-33200).

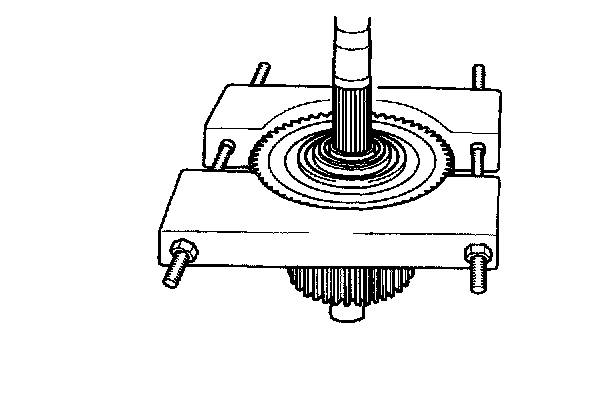

2. Install the transfer driven gear and the taper roller bearing.

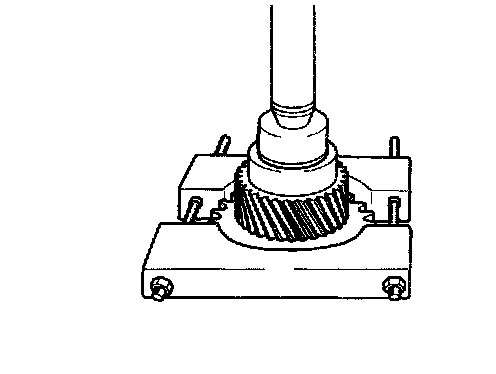

3. Install the parking brake gear and the output gear.





4. Install the roller bearing and tighten the lock nut with tightening torque.
Tightening torque: 160 - 180 Nm (1600 - 1800 kg-cm, 110 - 126 ft. lbs.)

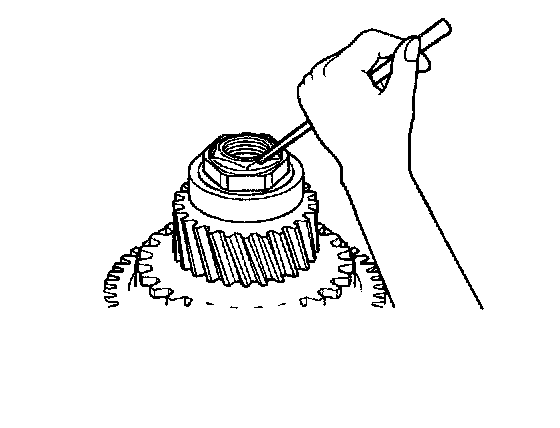

5. Cock the lock nut (two points) not to move.
