Electronic Control System

ELECTRONIC CONTROL SYSTEM
SUMMARY
It has integrated nervous network and artificial intelligence onto Hyundai Intelligent Vehicle Electronic Control (HIVEC) Control System. HIVEC System will provide optimum shift control in accordance with driver's habit and driving condition. Each clutch or brake has its own solenoid valve to implement clutch-to-clutch control, and then most comfortable shifting and durability are ensured.

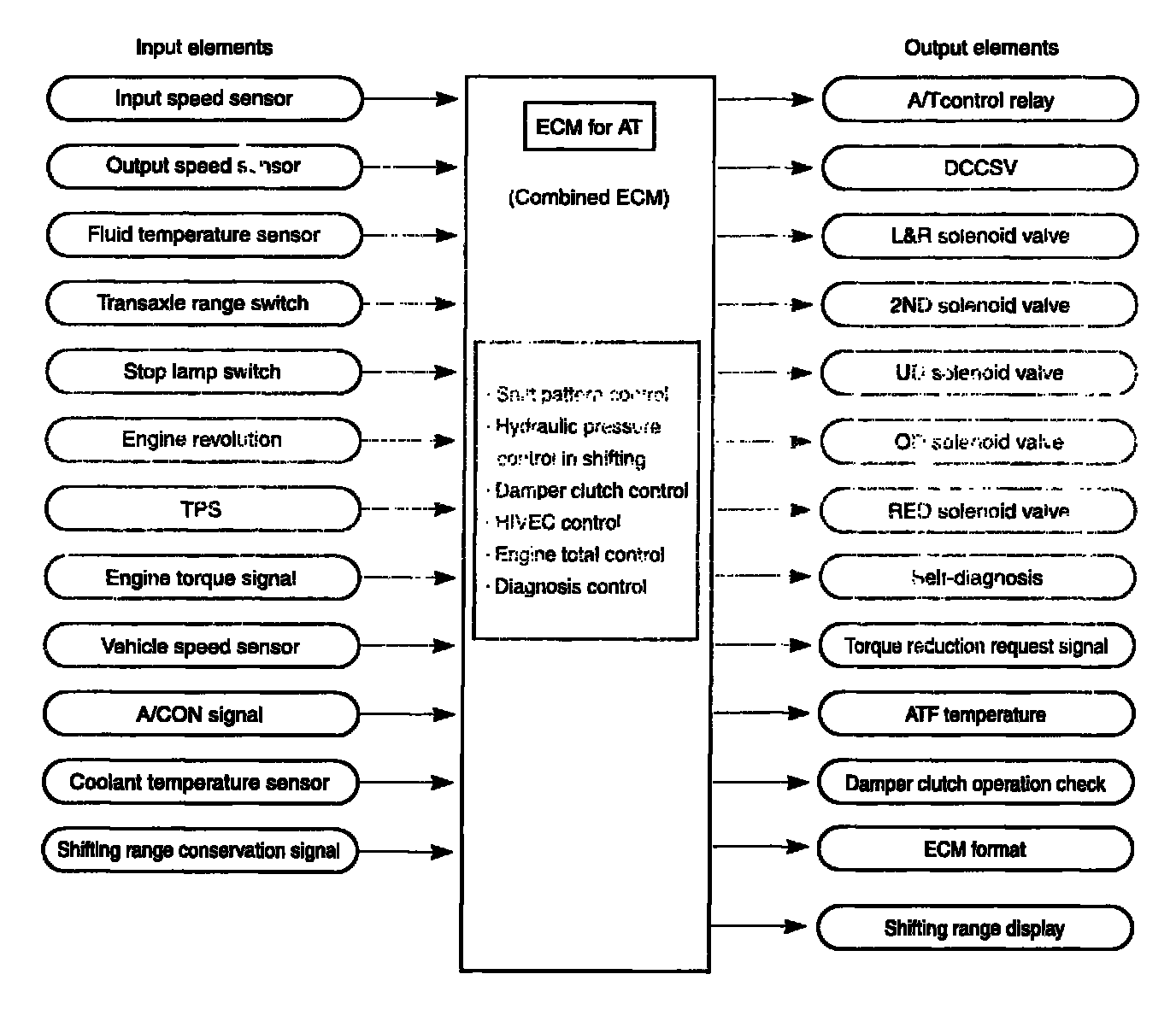

INPUT/OUTPUT CHART

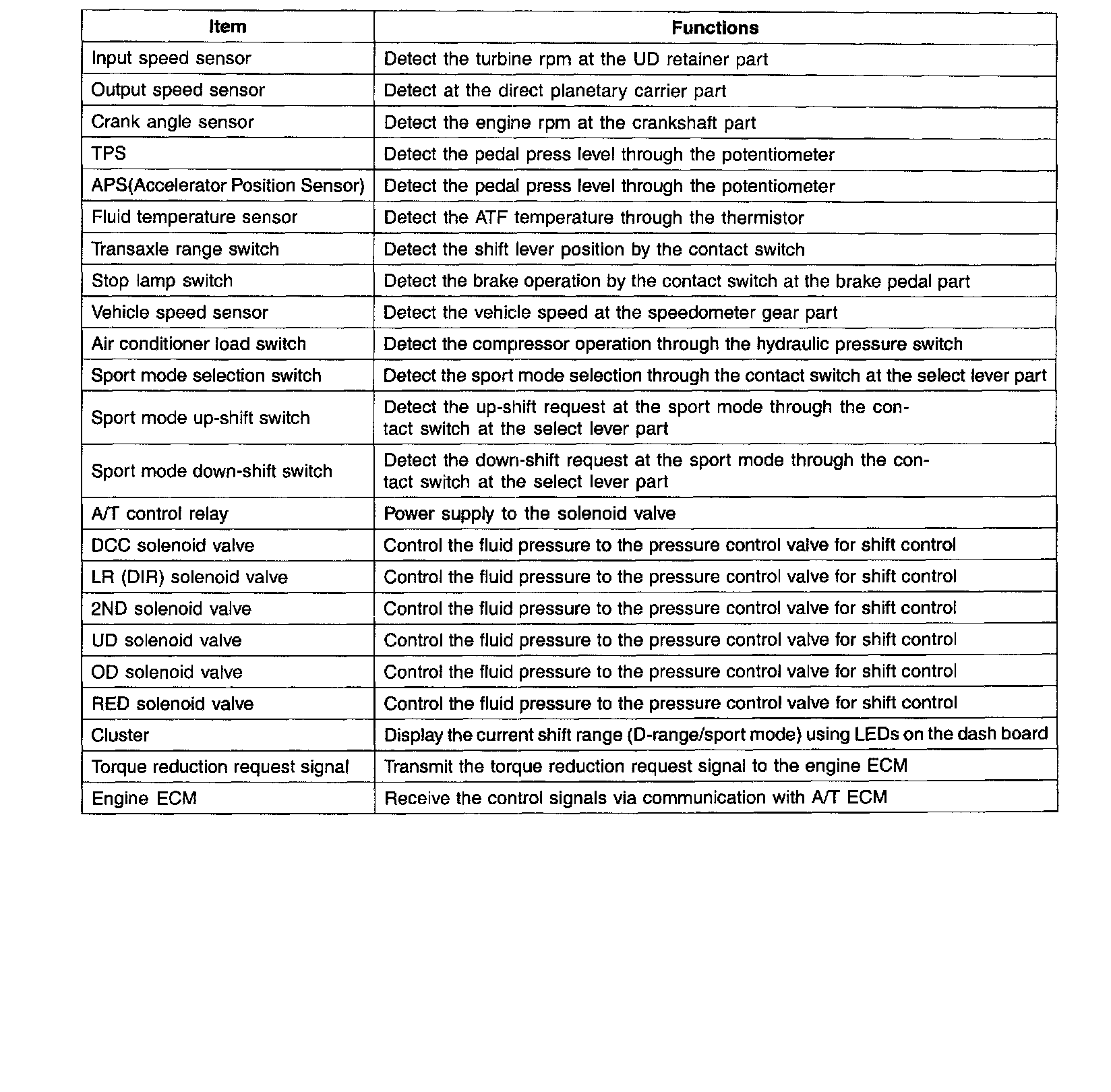

SENSOR AND ACTUATOR FUNCTIONS
