Clutch and Brake Operating Elements of Each Shifting Range

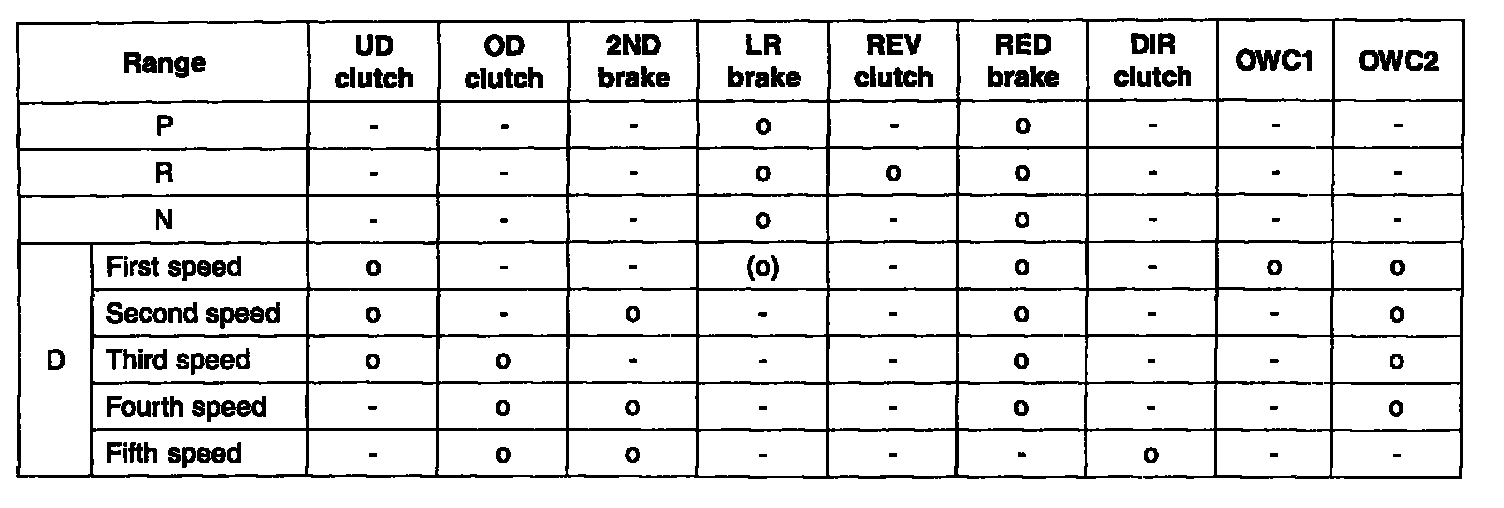

CLUTCH AND BRAKE OPERATING ELEMENTS OF EACH SHIFTING RANGE

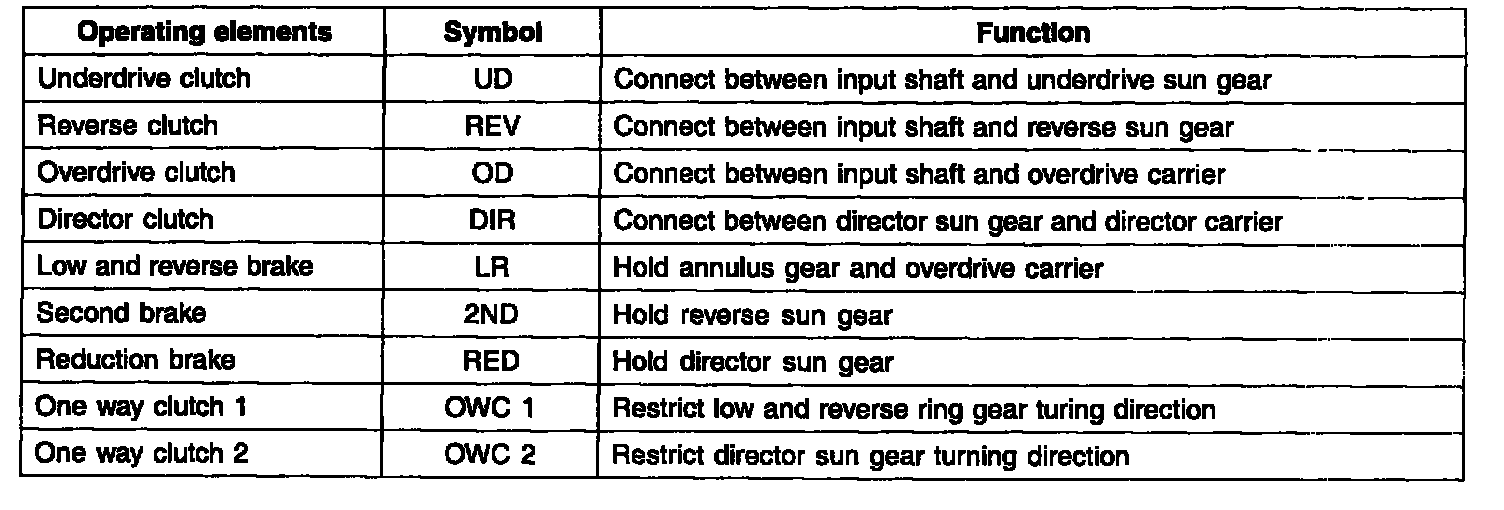

CLUTCH AND BRAKE FUNCTION

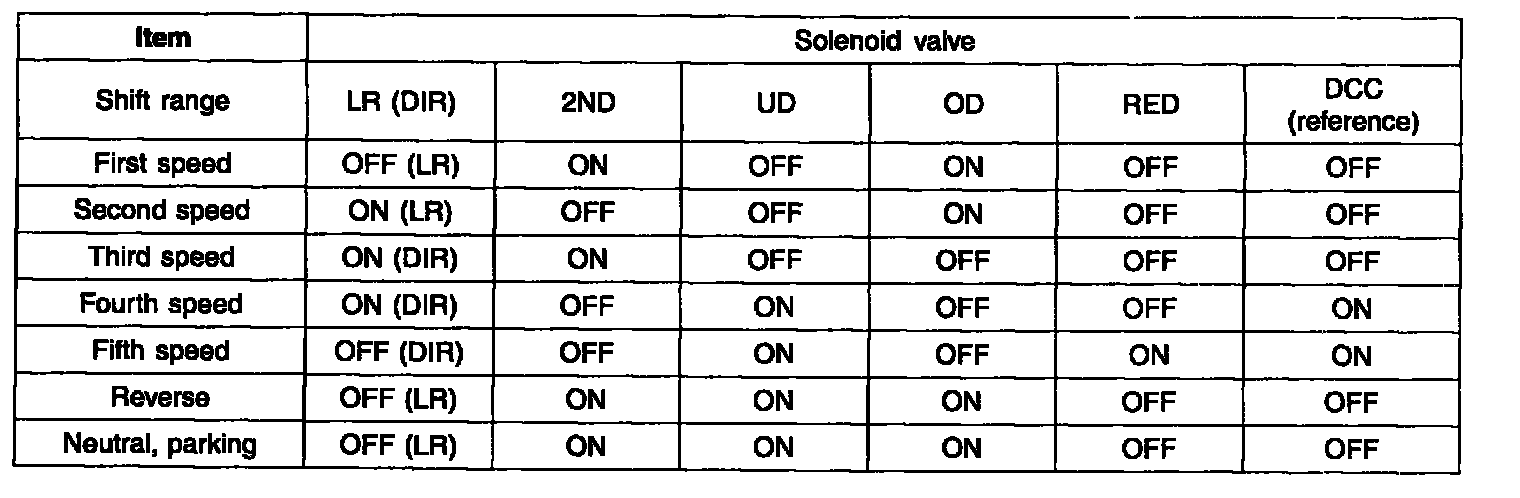

SOLENOID VALVE OPERATING ELEMENTS OF EACH SHIFT RANGE
