Electrical Diagrams

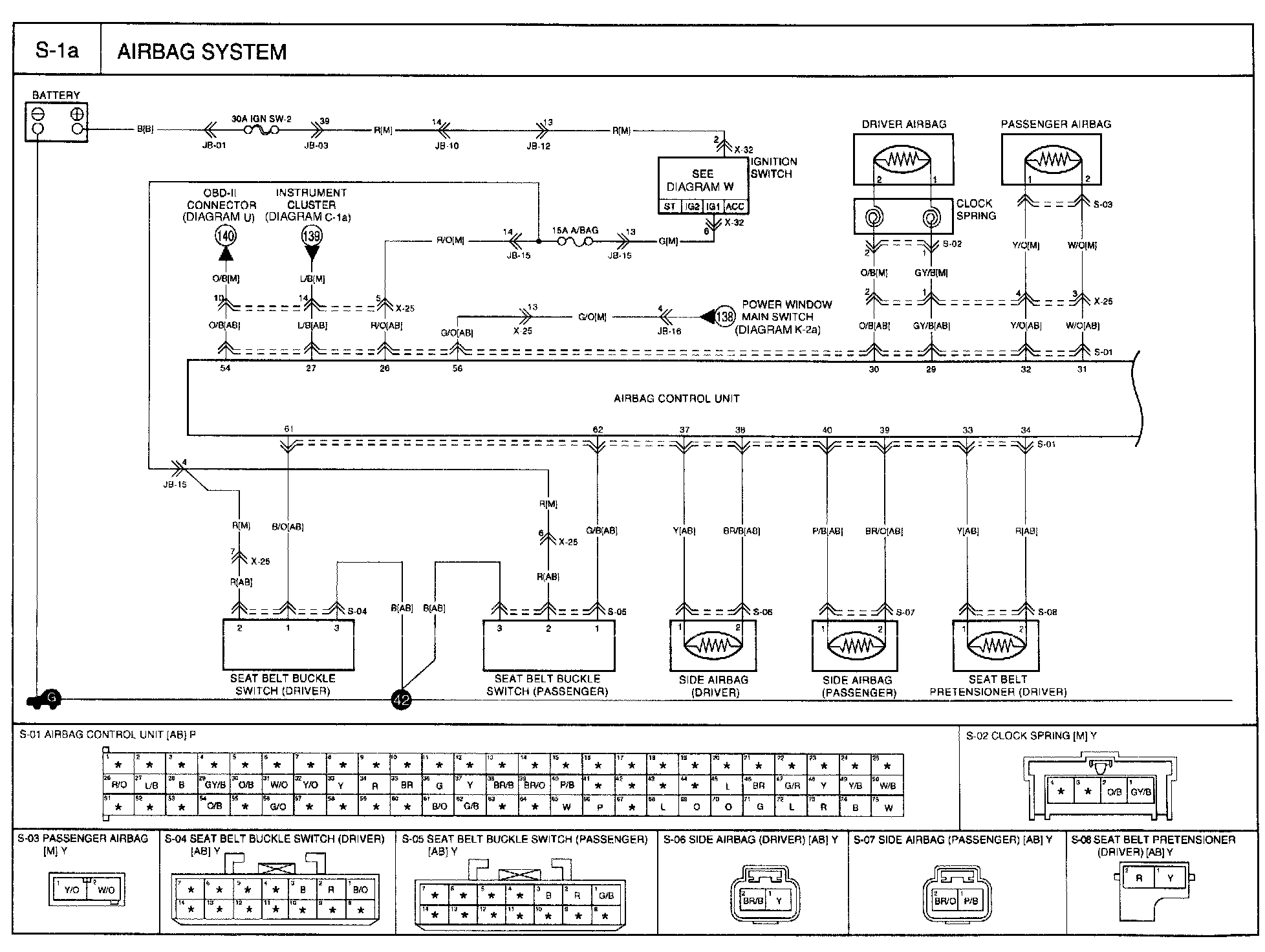

Diagram S-1a:

Routing View S-1a:

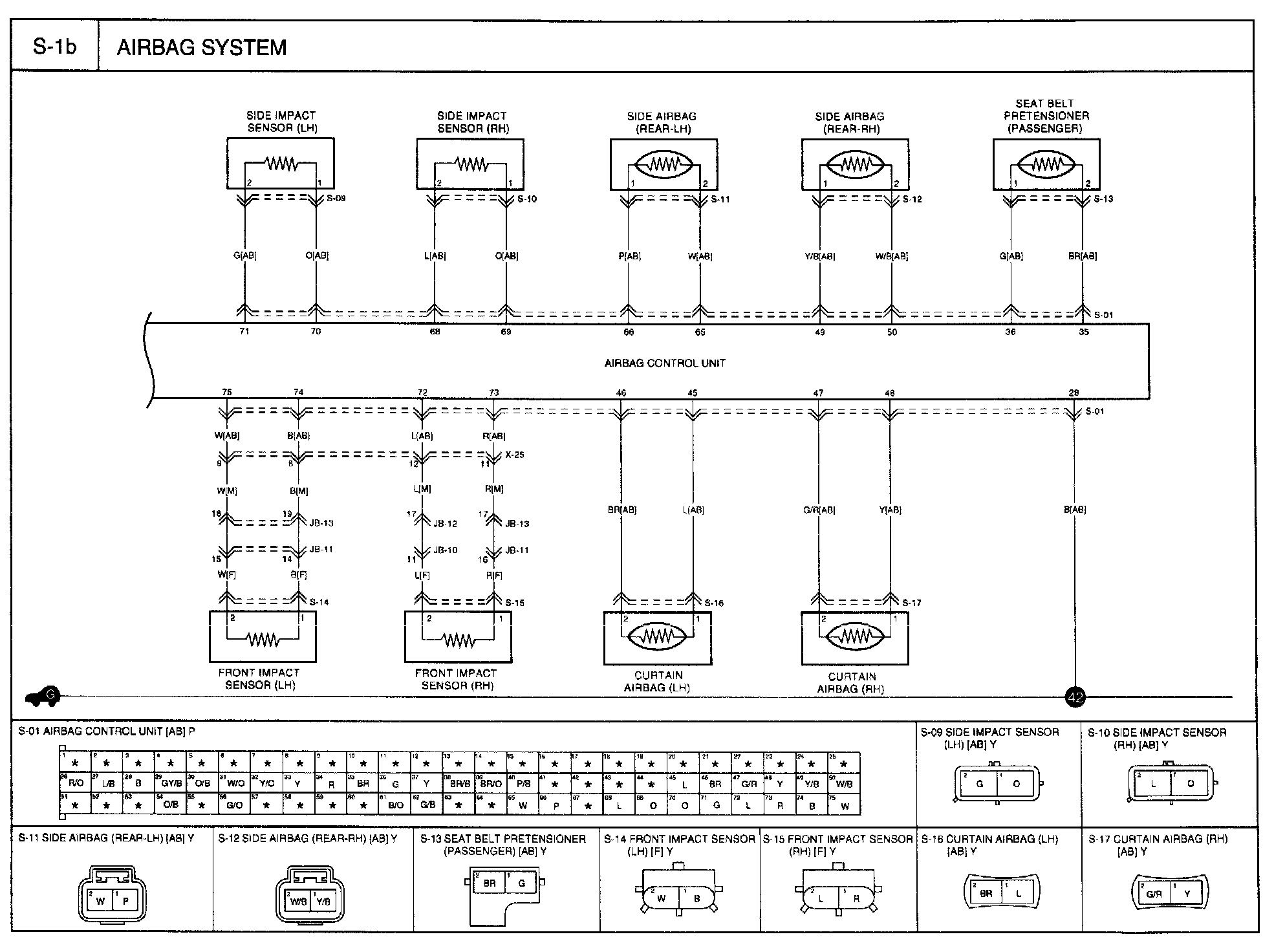

Diagram S-1b:

Routing View S-1b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
