Side Air Bag

REMOVAL

REMOVAL (1) - FRONT SIDE AIRBAG (FSAB)

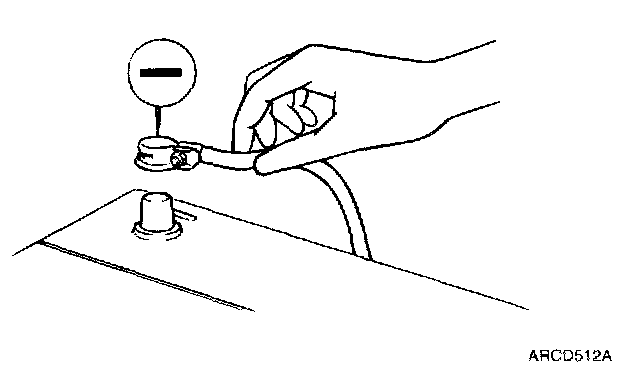

1. Disconnect the battery negative (-) terminal and remove the ignition key from the vehicle.

CAUTION: Wait at least 30 seconds.

2. Remove the driver and passenger seat.
3. Disconnect the FSAB connector.

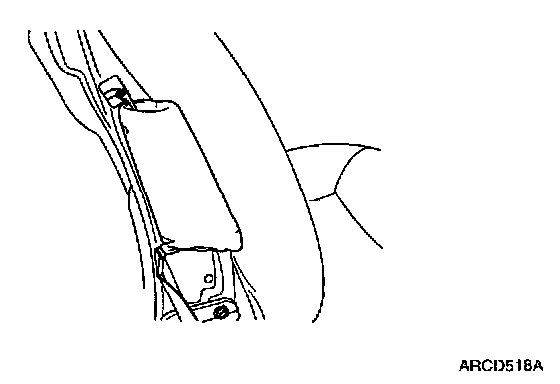

4. Unscrew the FSAB mounting nut and remove the FSAB modules.

CAUTION
- Never attempt to disassemble or repair the airbag module.
- Do not drop the airbag module or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
- The airbag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it.
- Do not expose the airbag module to temperature over 93 °C (200 °F)
- An undeployed airbag module should only be disposed in accordance with the procedures.
- Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.
- Whenever the FSAB is deployed it should be replaced with a new one assembled with an extension wire. The squib is melt down if the FSAB is deployed making the extension wire useless.

REMOVAL (2) - REAR SIDE AIRBAG (RSAB)




1. Disconnect the battery negative (-) terminal and remove the ignition key from the vehicle.

CAUTION: Wait at least 30 seconds.

2. Remove the rear seat cushion.

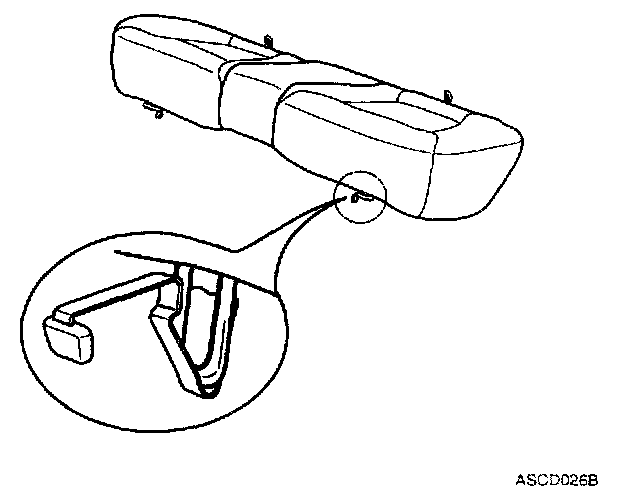

1. Release the seat cushion stopper.

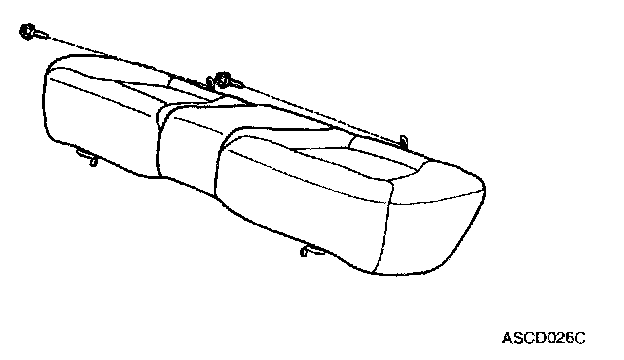

2. Remove the seat cushion mounting bolts (2).
3. Disconnect the seat cushion connector.

3. Remove the rear seatback.

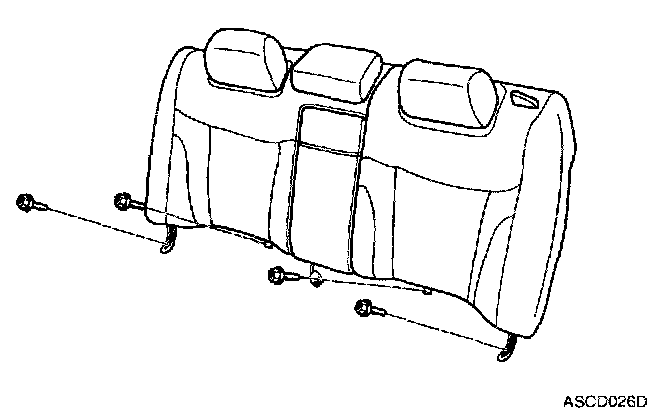

1. Unscrew the seatback mounting bolts (4)
2. Disconnect the seatback connector and RSAB connector.

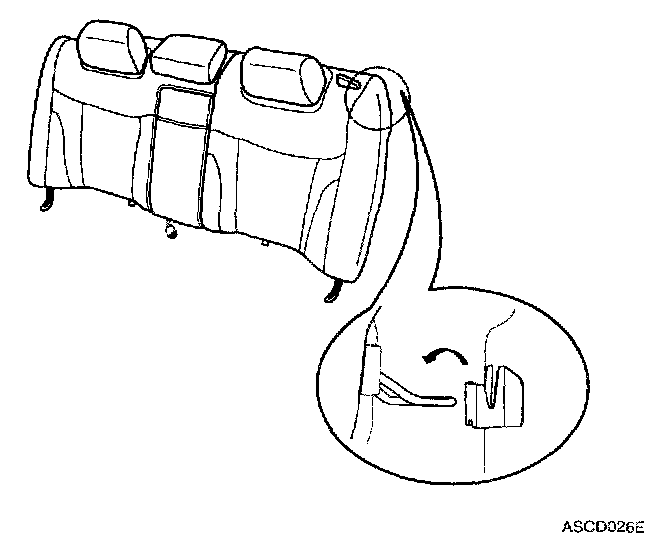

3. Remove the seatback stopper.

CAUTION:
- Never attempt to disassemble or repair the airbag module.
- Do not drop the airbag module or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
- The airbag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it
- Do not expose the airbag module to temperature over 93 °C (200 °F)
- An undeployed airbag module should only be disposed in accordance with the procedures.
- Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.
- Whenever the RSAB is deployed it should be replaced with a new one assembled with an extension wire. The squib is melt down if the RSAB is deployed making the extension wire useless.

4. Installation is performed according to the opposite order of Removal Procedure.

INSTALLATION

1. Installation procedure is reverse order of REMOVAL.
