Fuel Temperature Sensor: Testing and Inspection

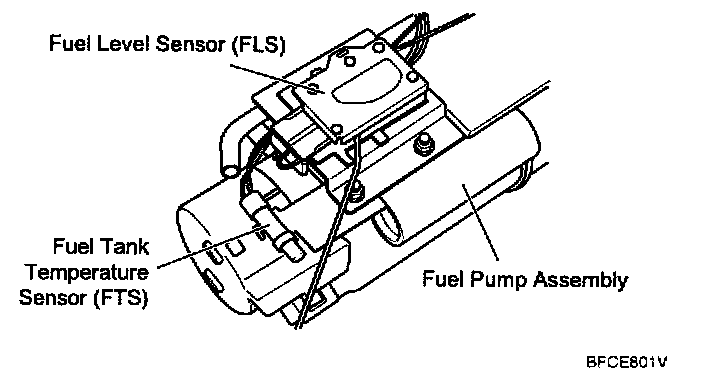

FUEL TANK TEMPERATURE SENSOR (FTS)
Circuit Diagram (FTS):
Harness Connector:

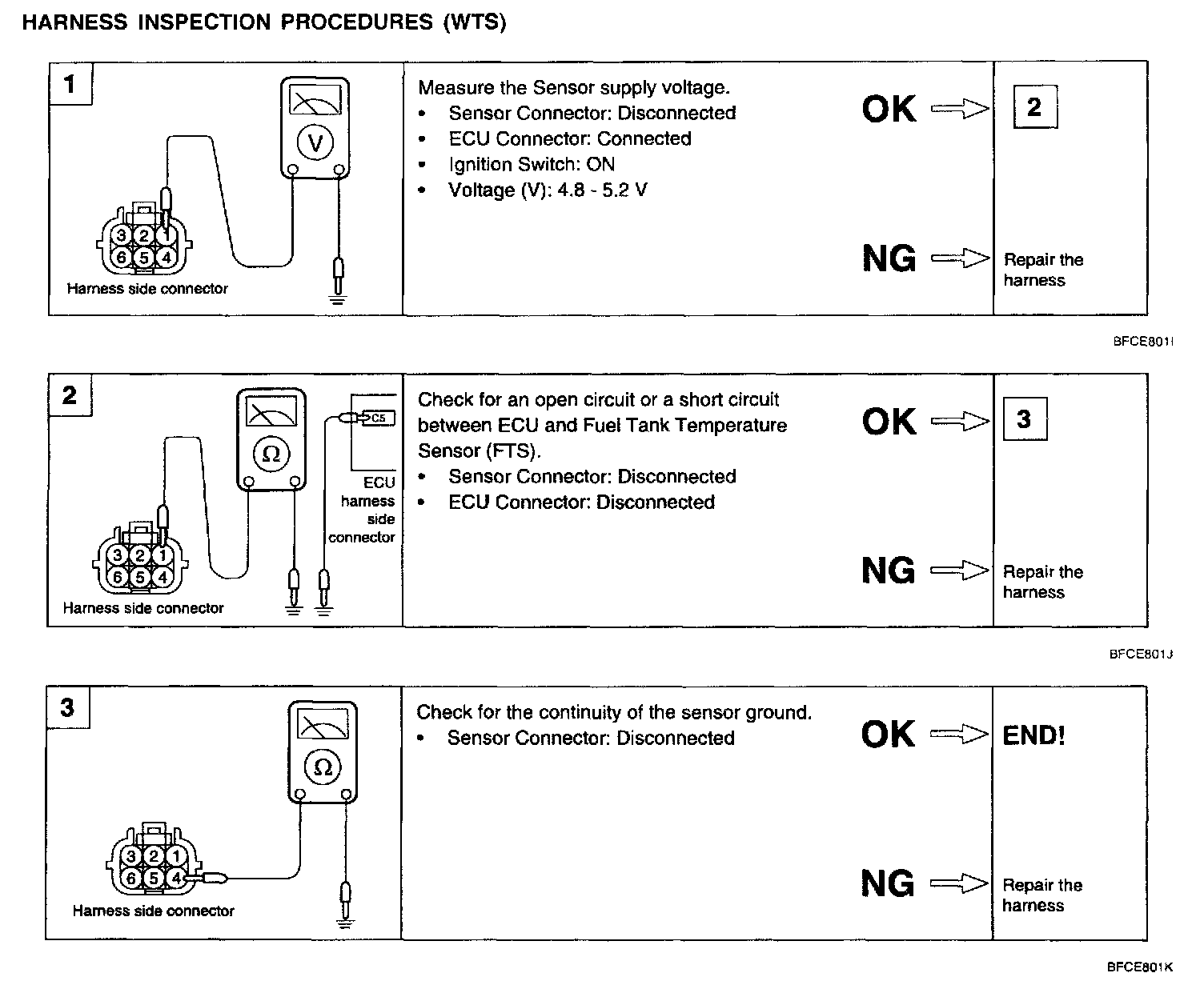

Harness Inspection Procedures (WTS):
