Limp Home Throttle Valve: Testing and Inspection

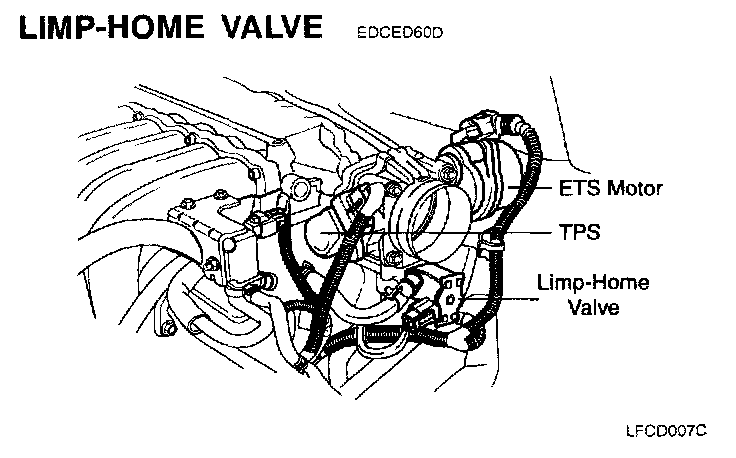

LIMP-HOME VALVE
Circuit Diagram (Limp-Home Valve):
Harness Connector:

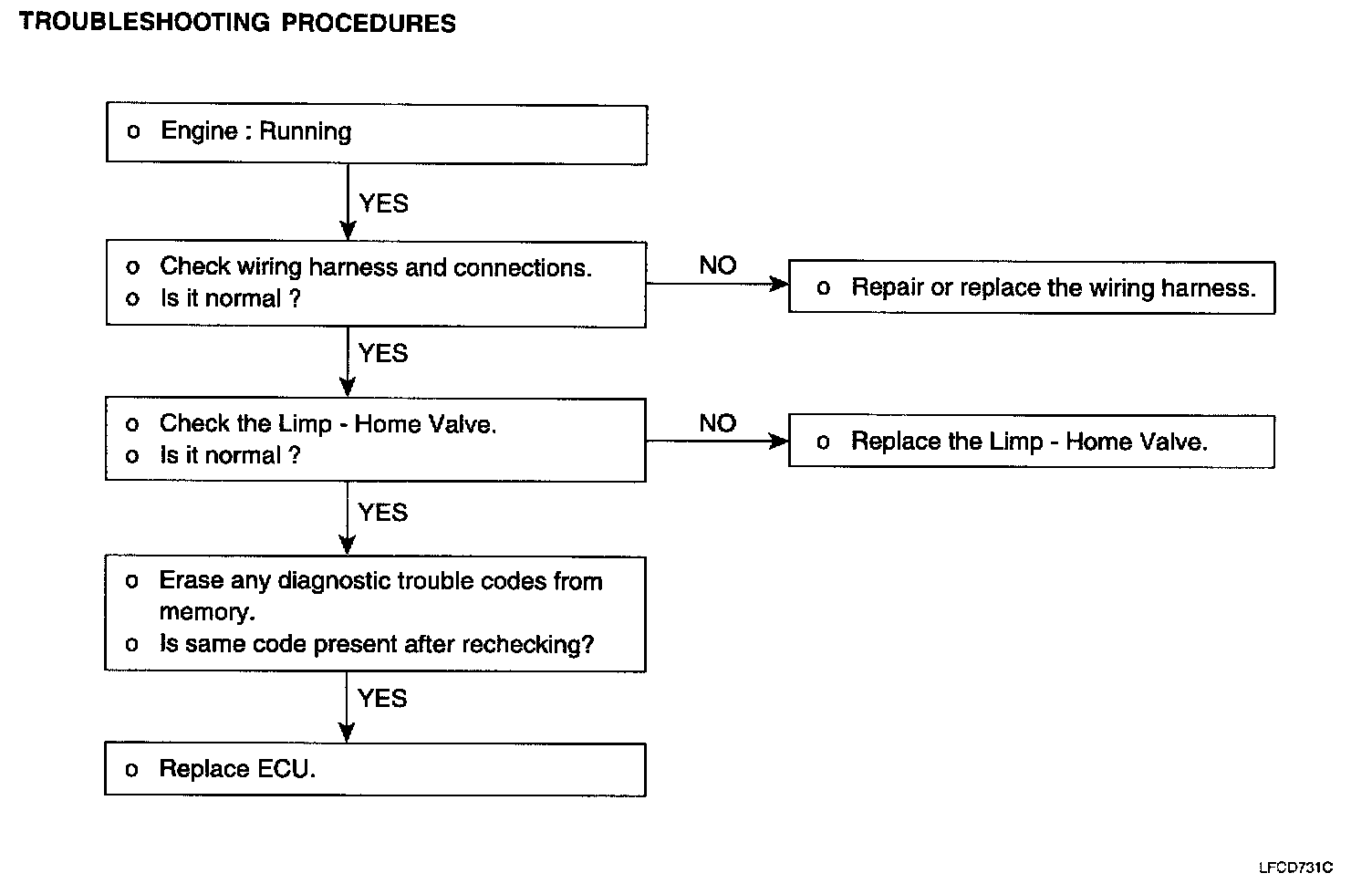

Troubleshooting Procedures:

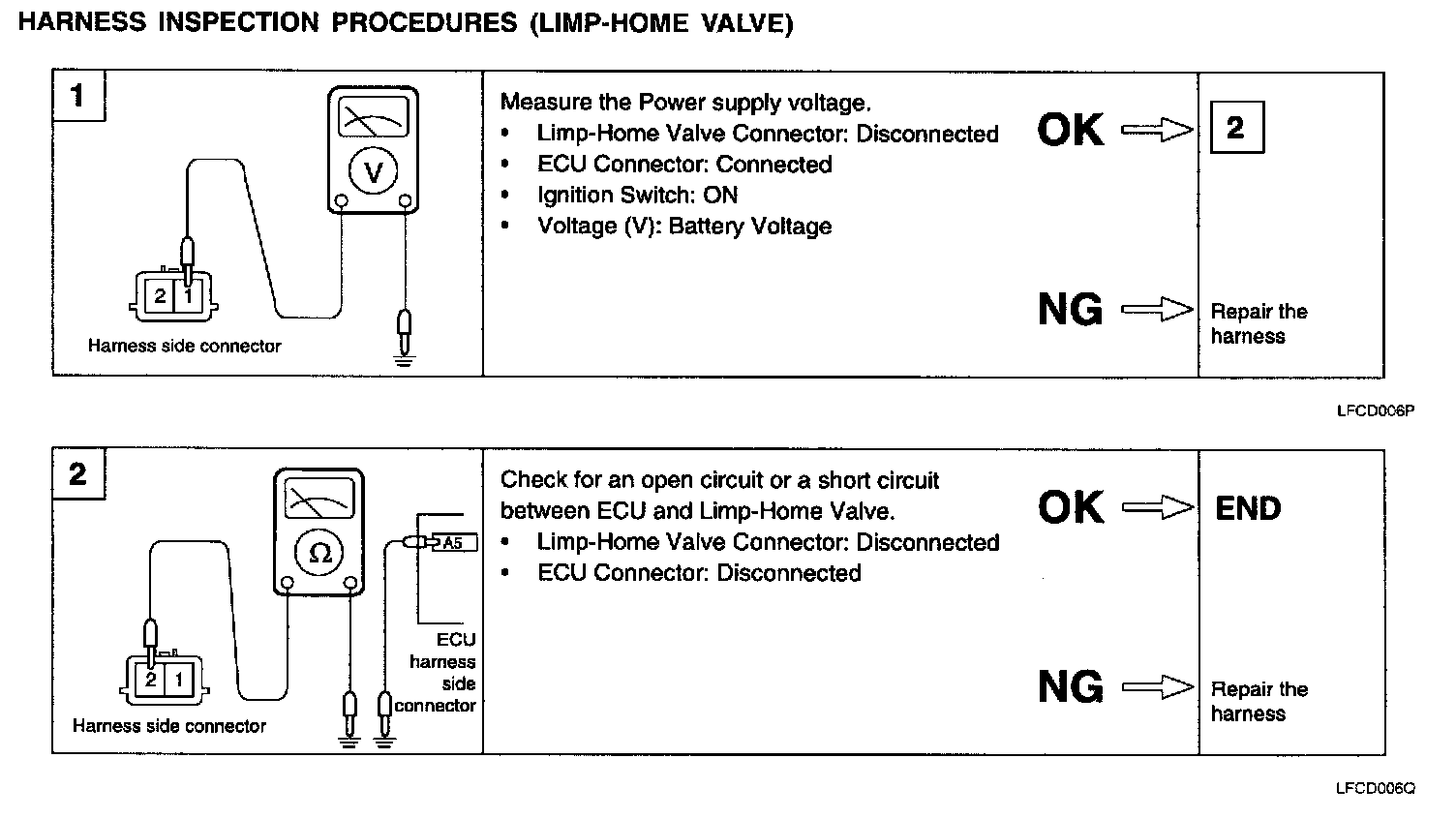

Harness Inspection Procedures (Limp-Home Valve):
