Canister Close Valve (CCV)

CANISTER CLOSE VALVE (CCV)




The Canister Close Valve (CCV) is for monitoring of evaporative leakage detection. While the leakage monitoring is operated, the CCV become closed but it is normally open.

Circuit Diagram (CCV):

Harness Connector:

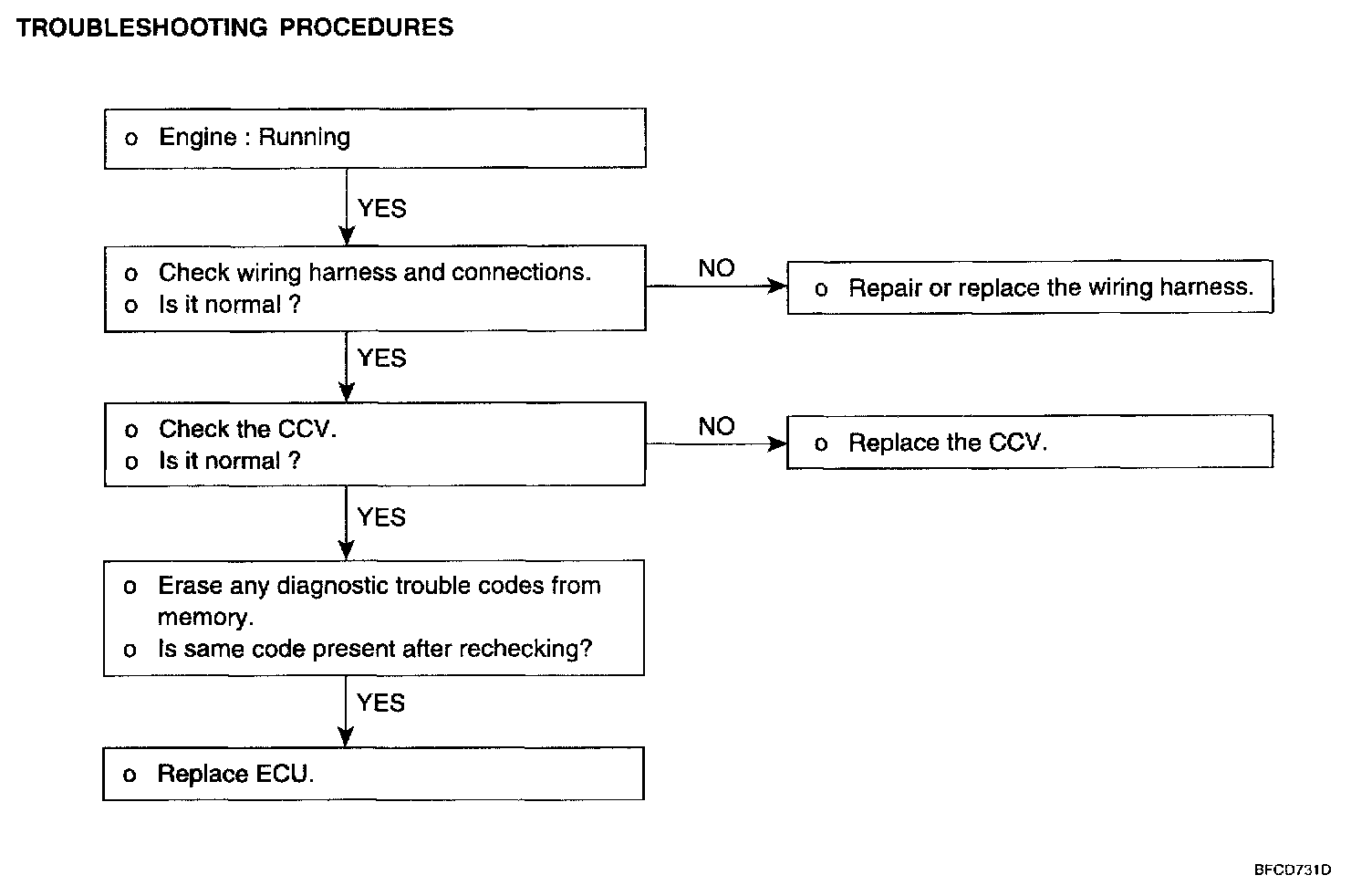

Troubleshooting Procedures:

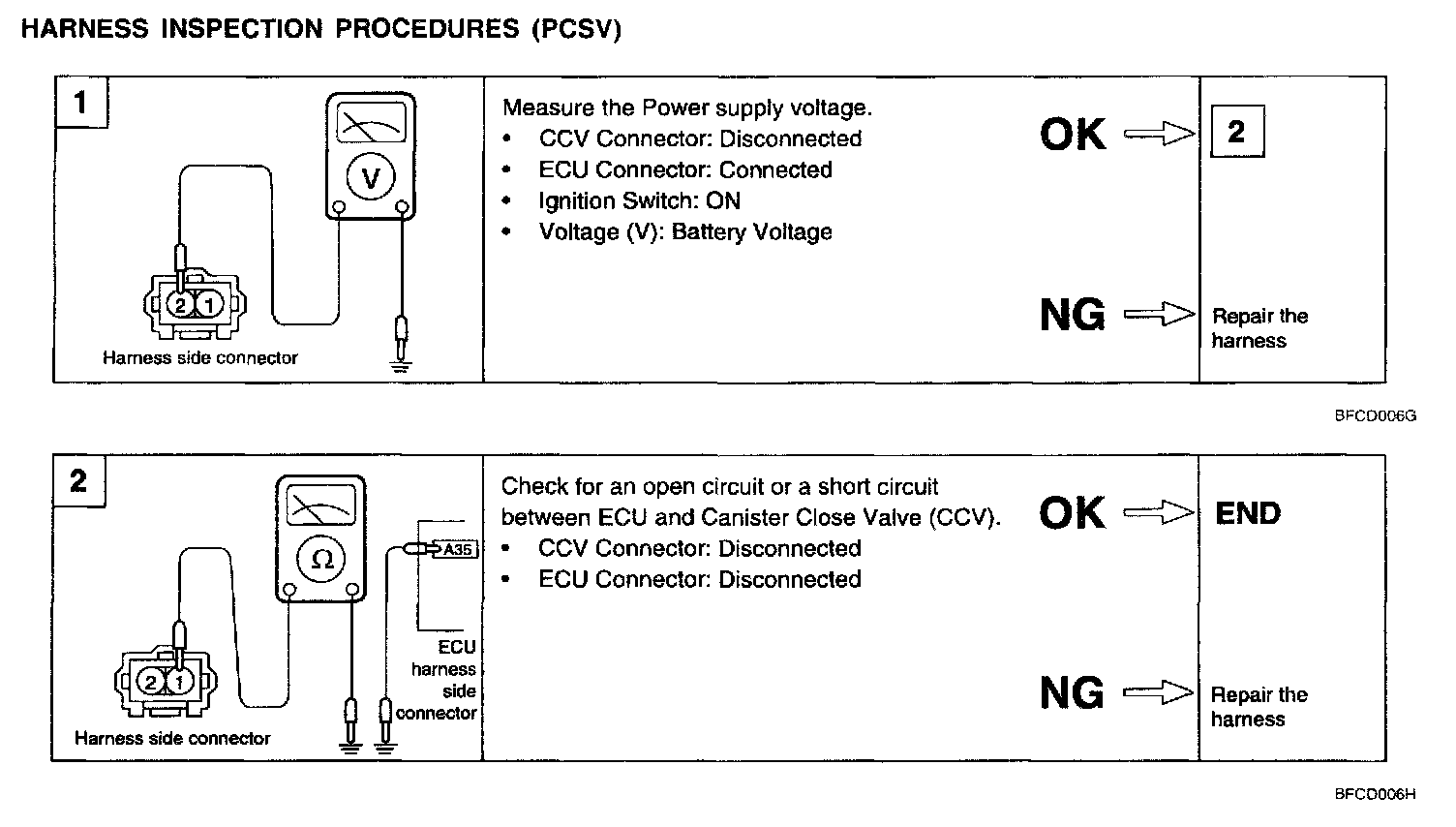

Harness Inspection Procedures (PCSV):
