Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
ECU Terminal In/Out Check Sheet
ECU Terminal In/Out Check Sheet
ECU Terminal Layout:
Terminal A1 - A20:

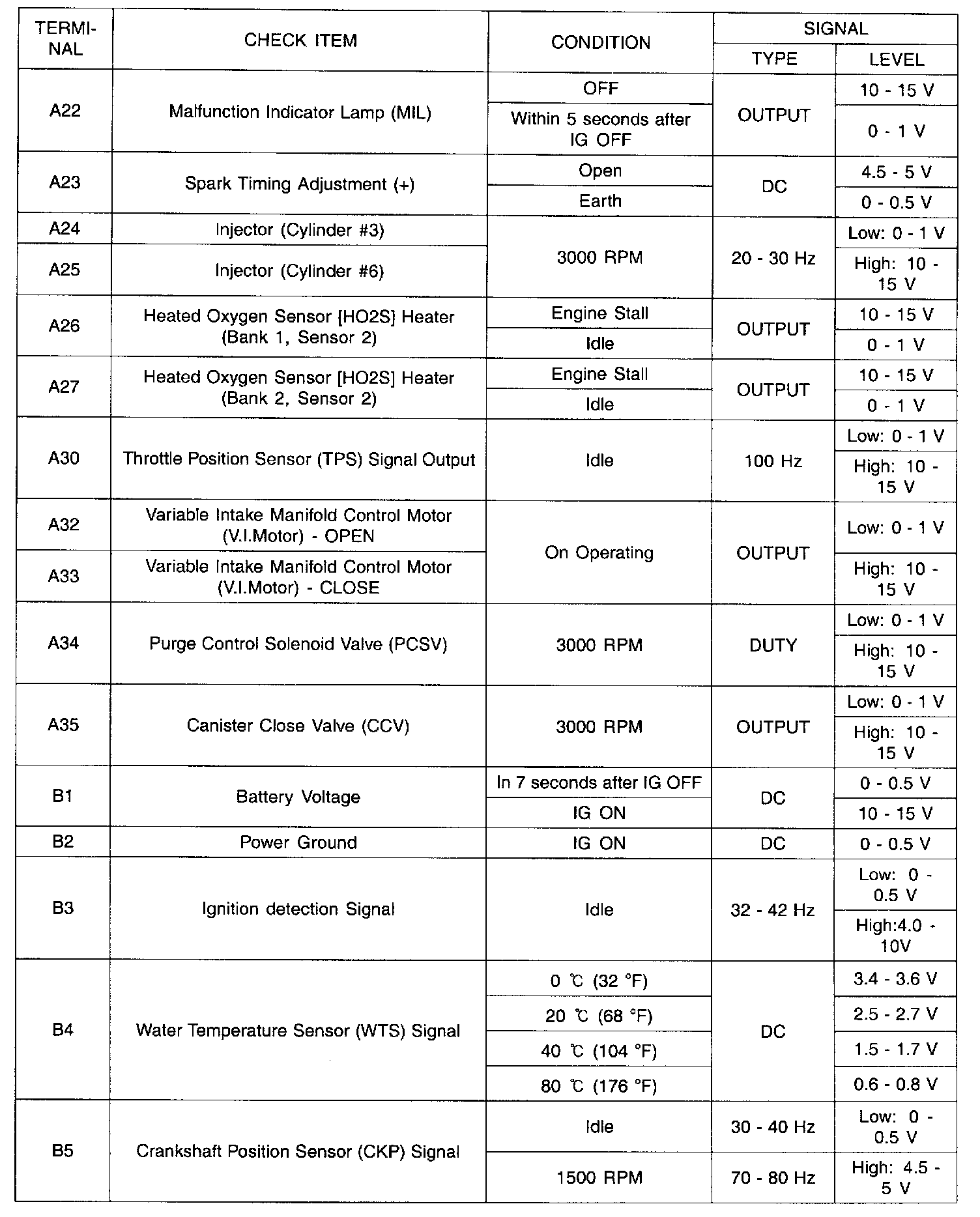

Terminal A22 - B5:

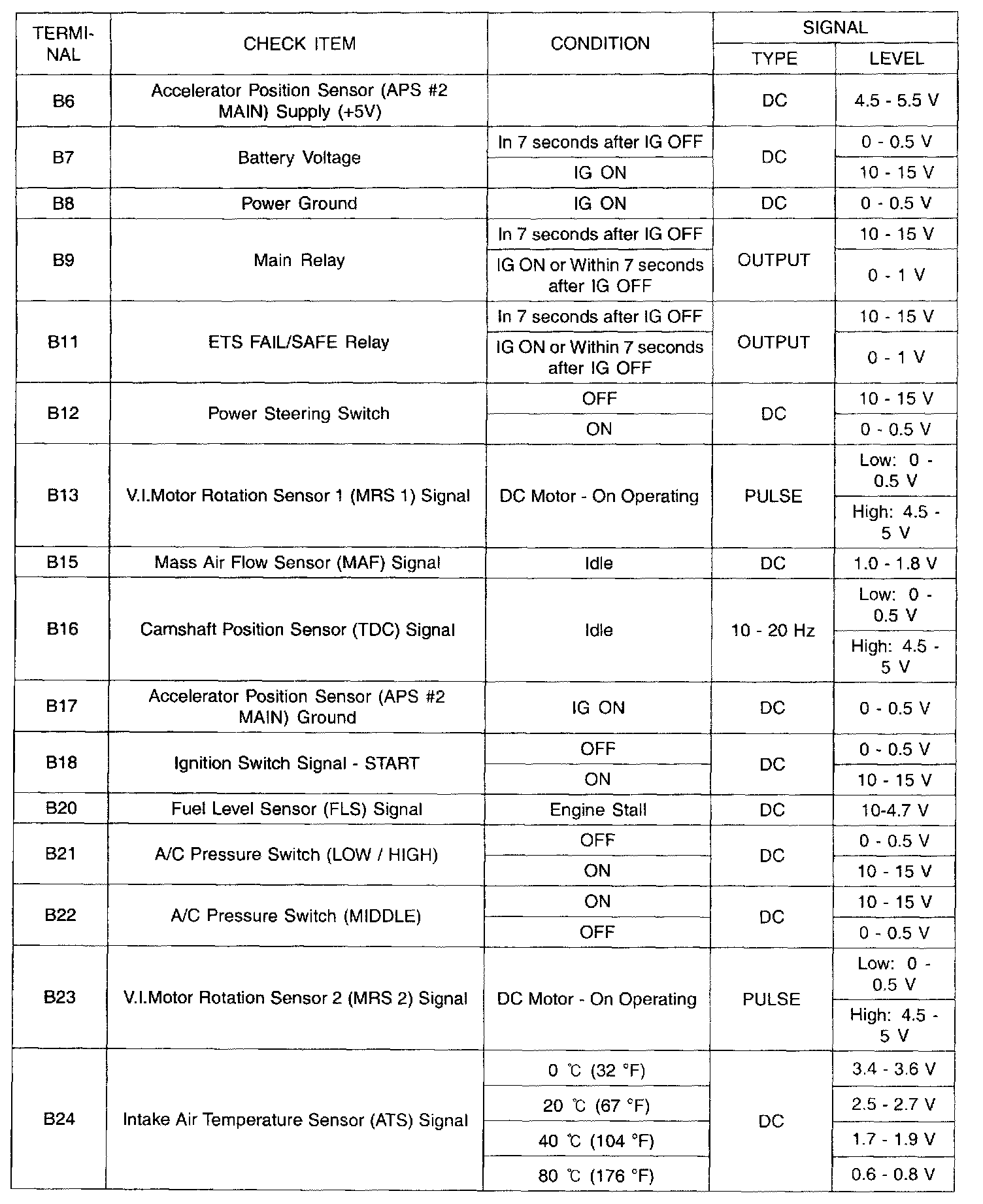

Terminal B6 - B24:

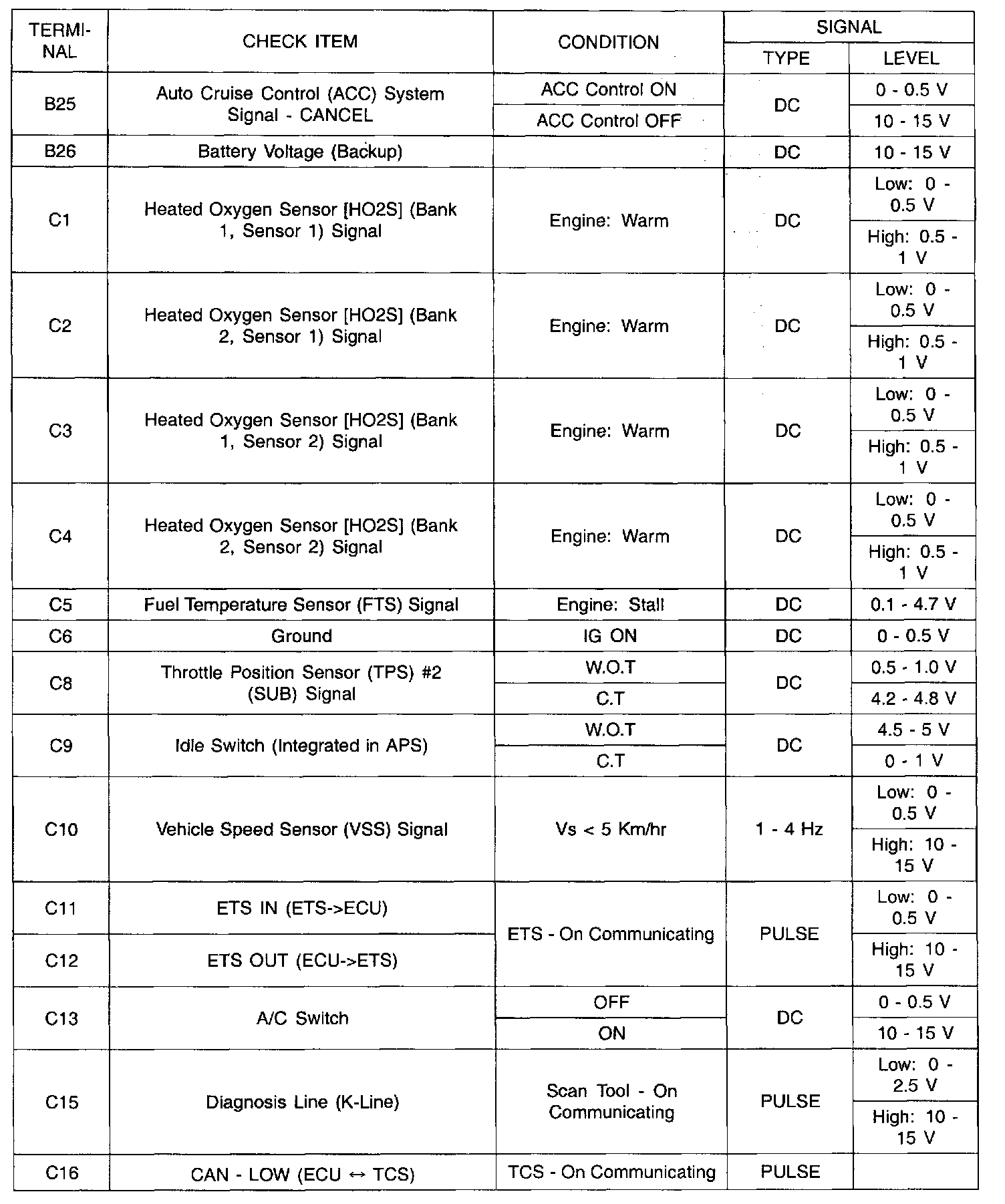

Terminal B25 - C16:

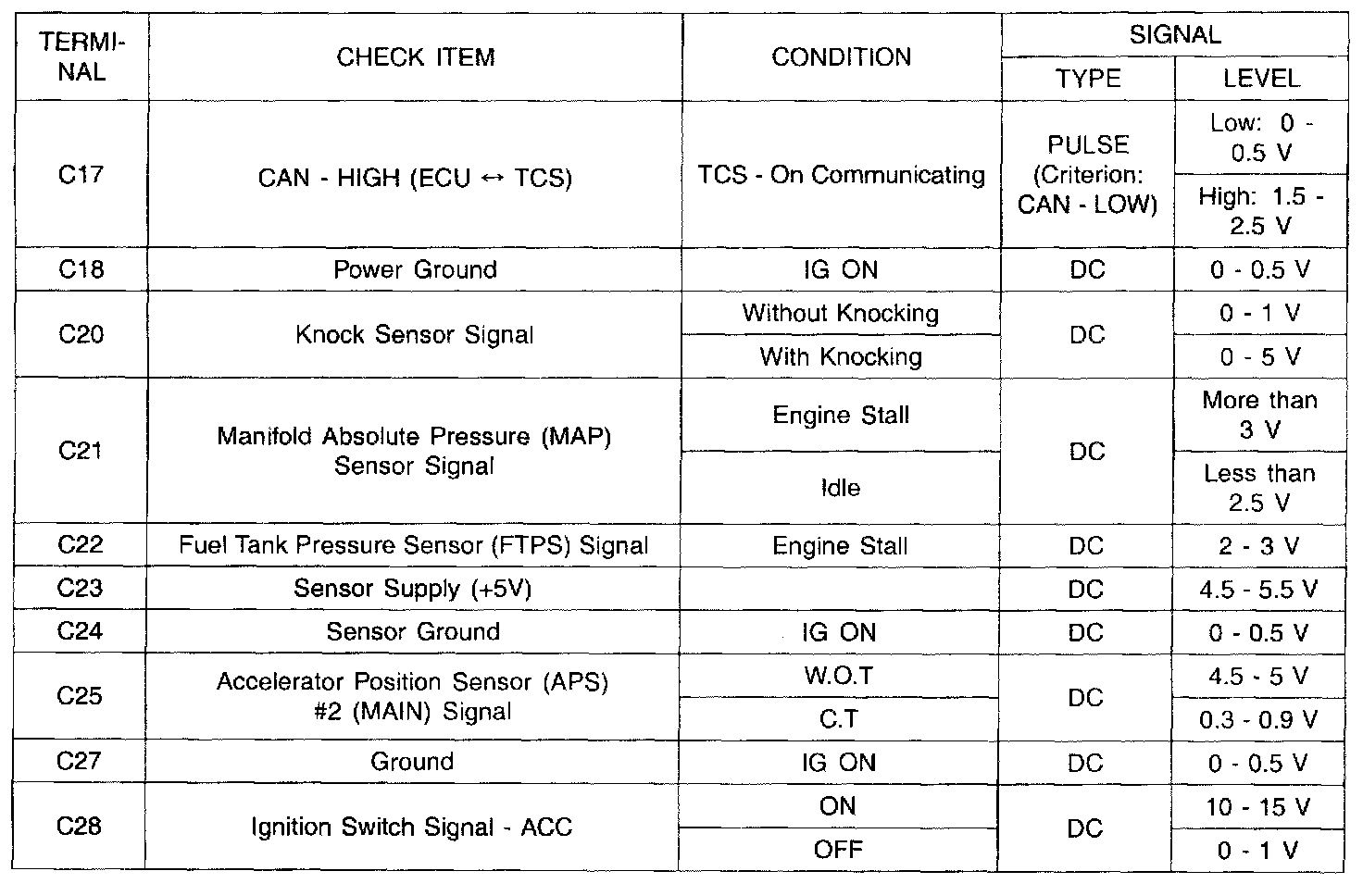

Terminal C17 - C28:
