Home >> Kia >> 2004 >> Amanti V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

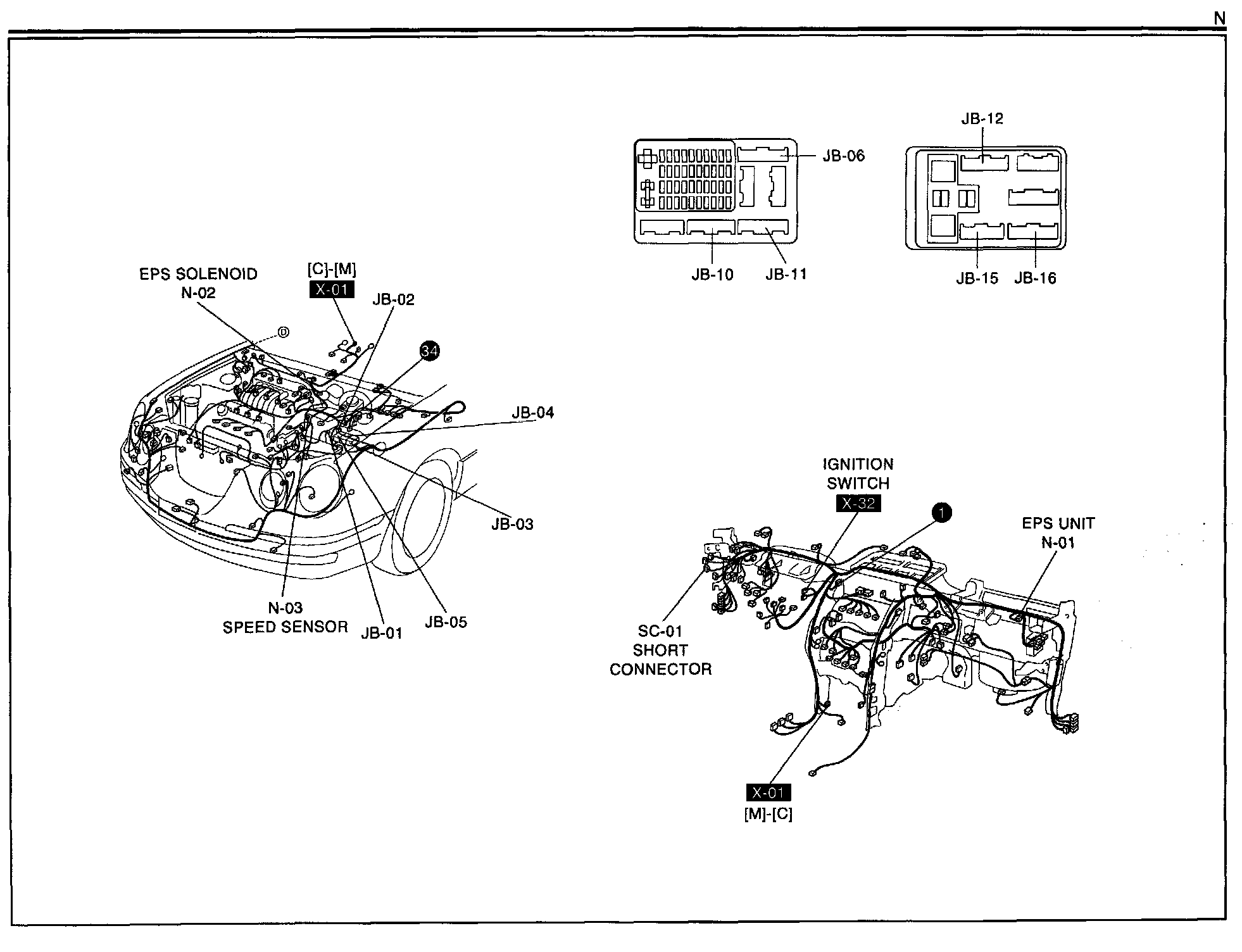

Routing View N:

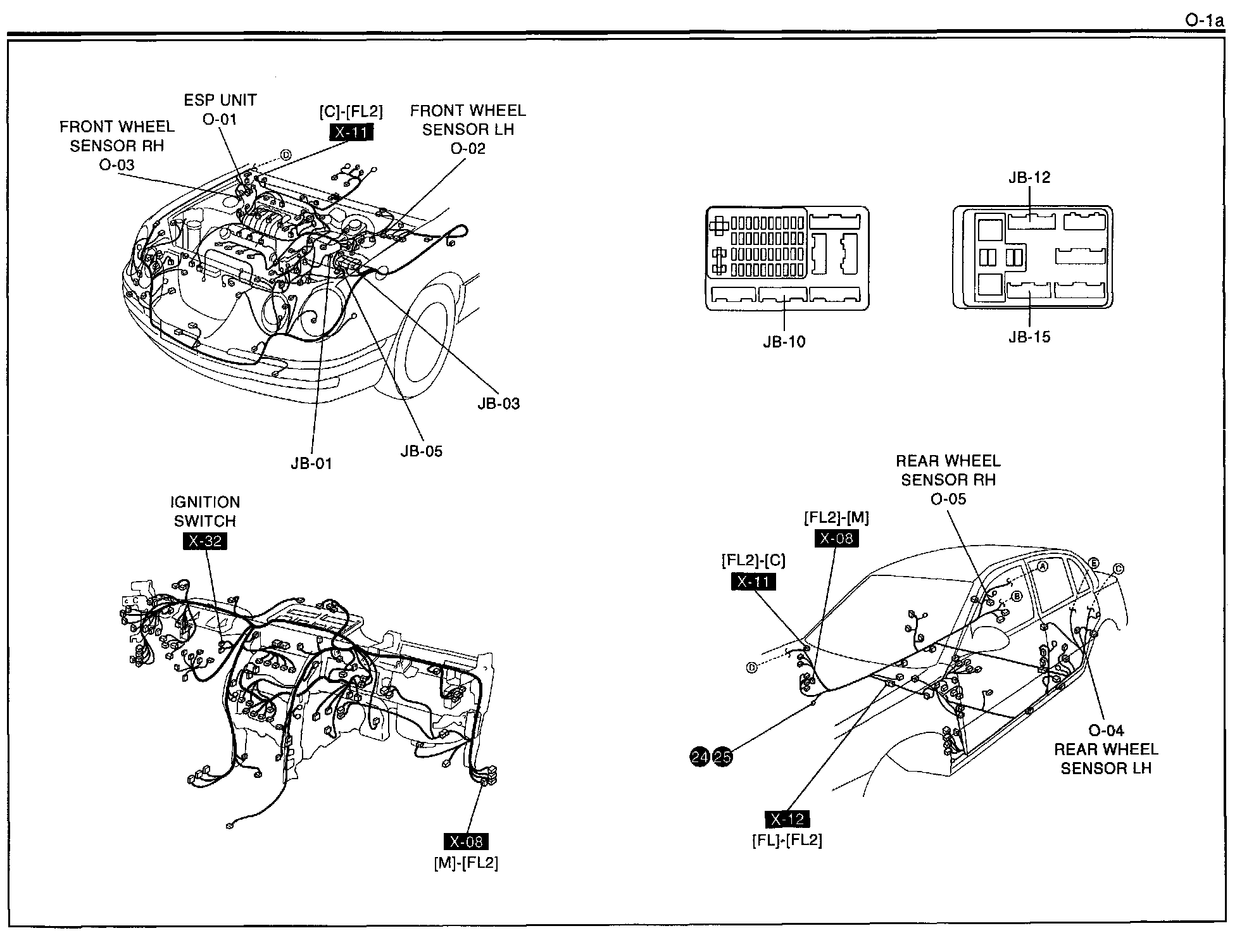

Routing View O-1a:
