Electrical Diagrams

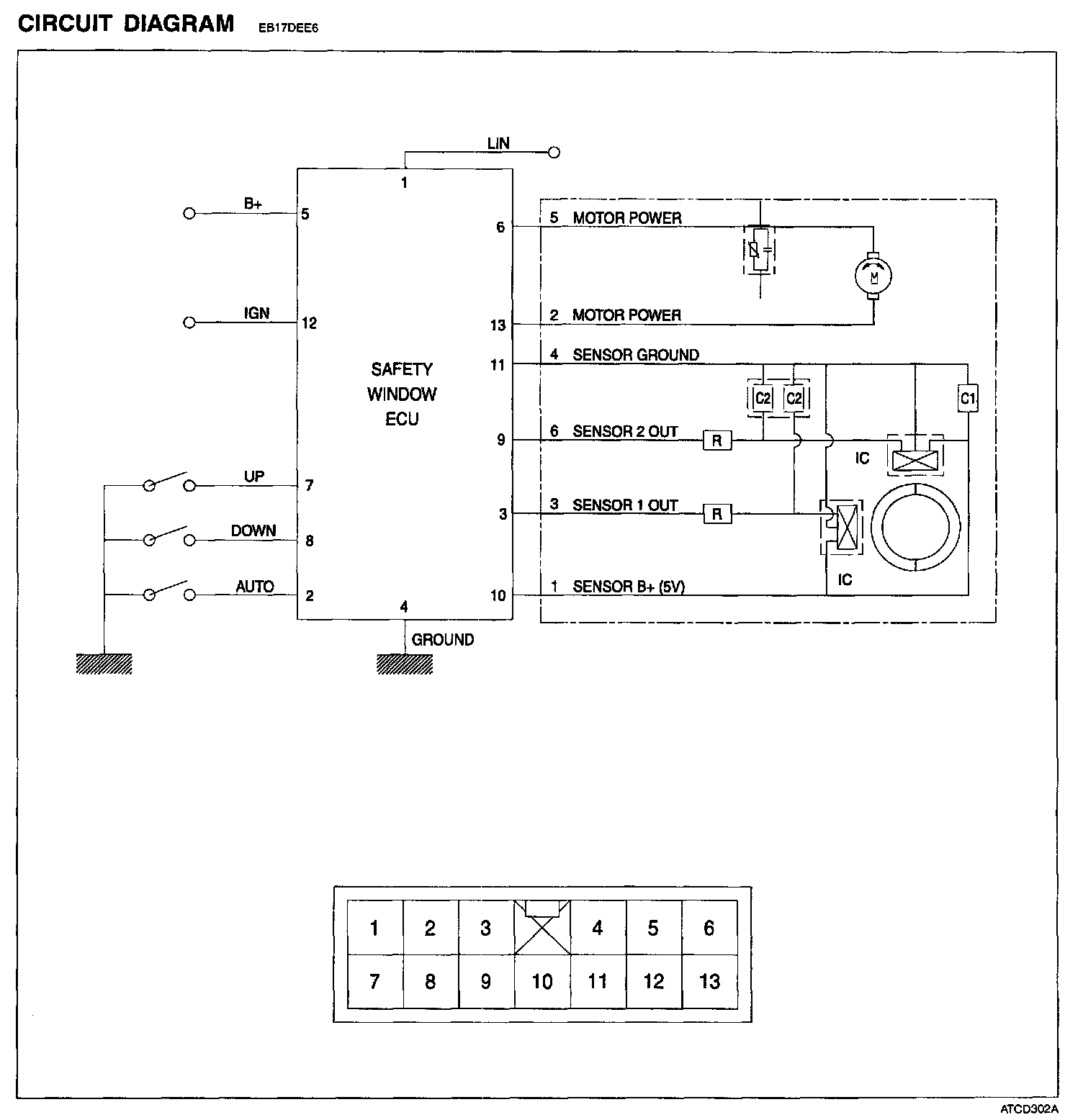

Safety Window ECU - Circuit Diagram:

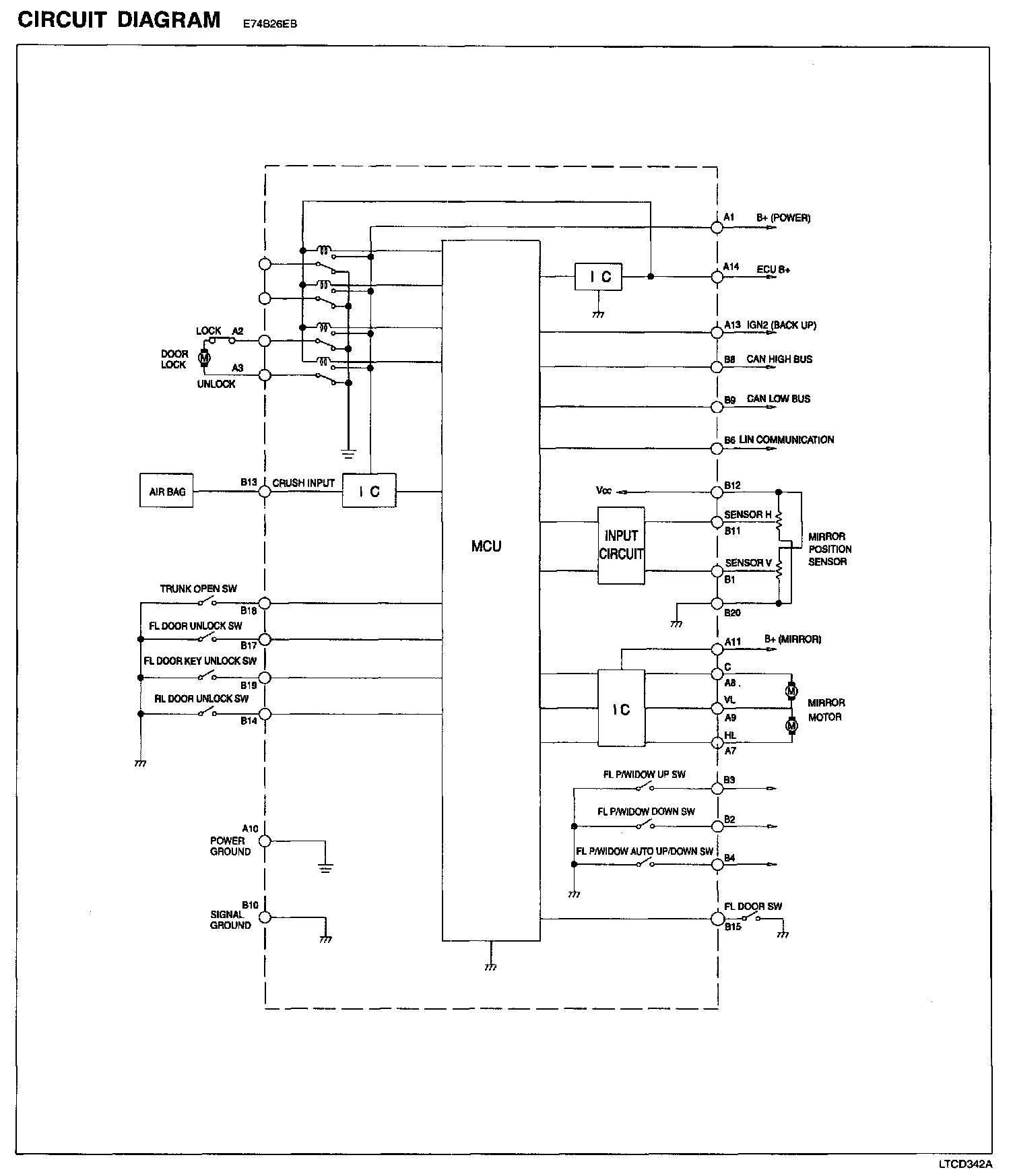

Driver Door Module - Circuit Diagram:

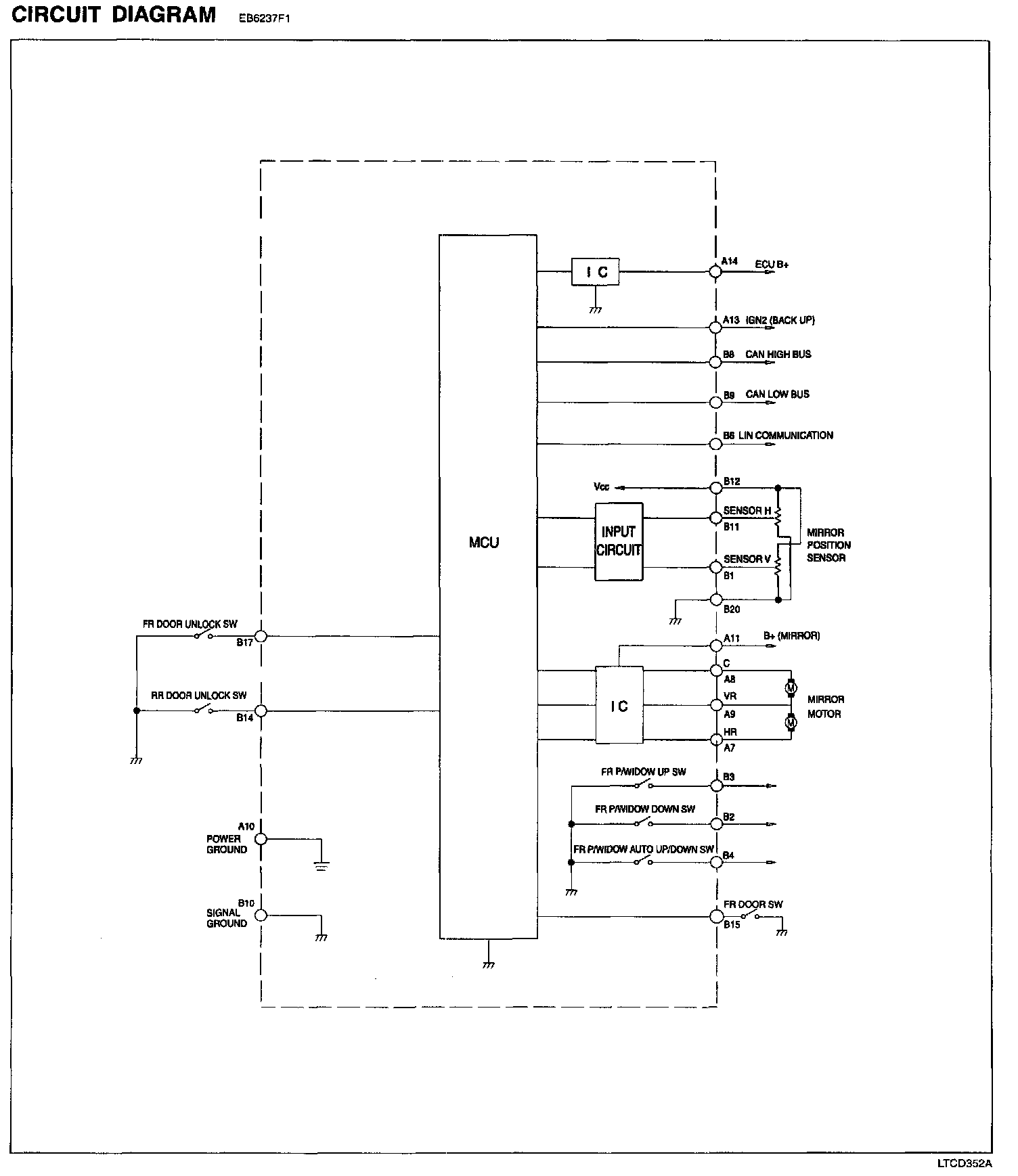

Assist Door Module - Circuit Diagram:
