Automatic Transmission/Transaxle
>>
System Diagram

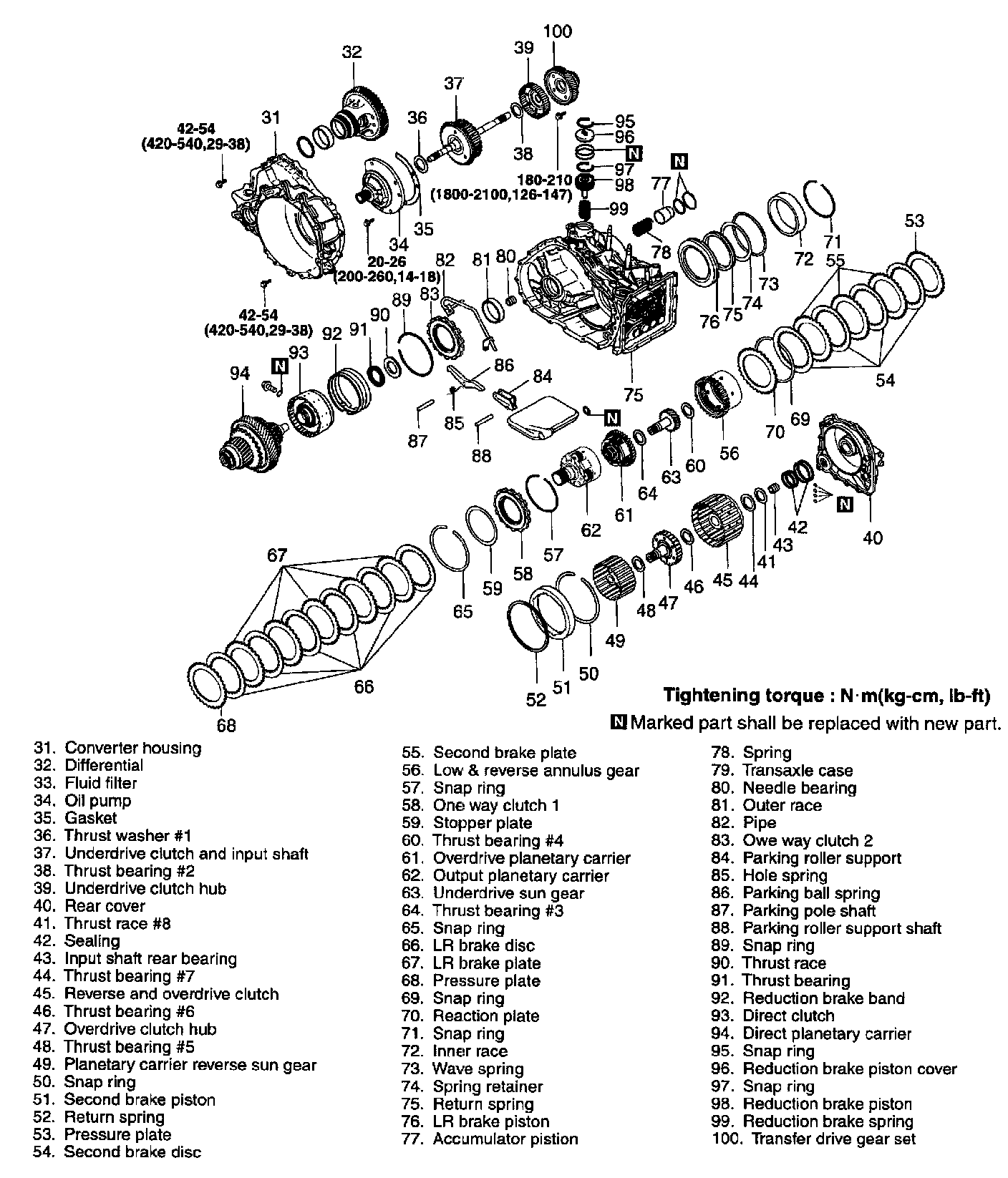

System Diagram

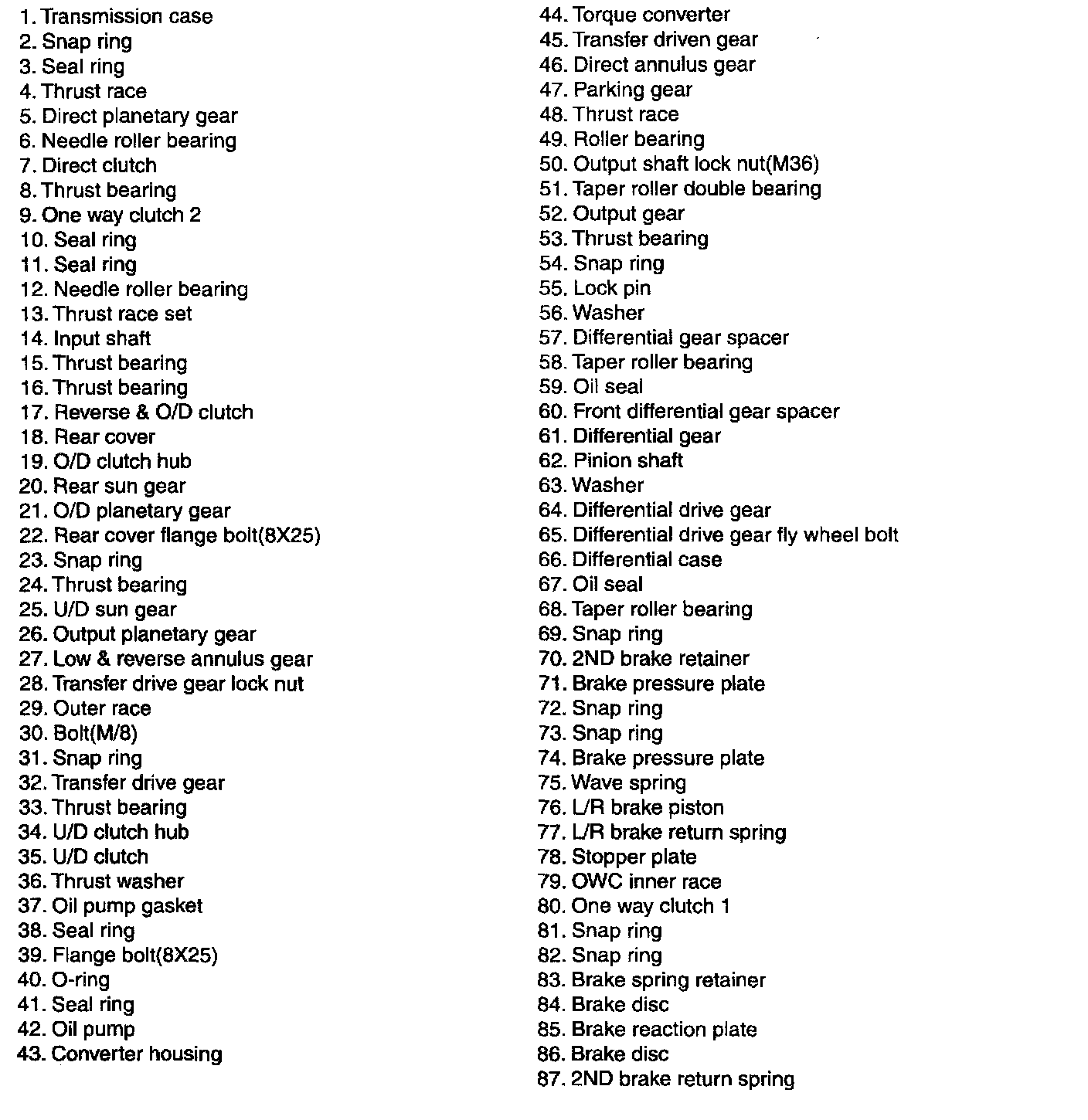

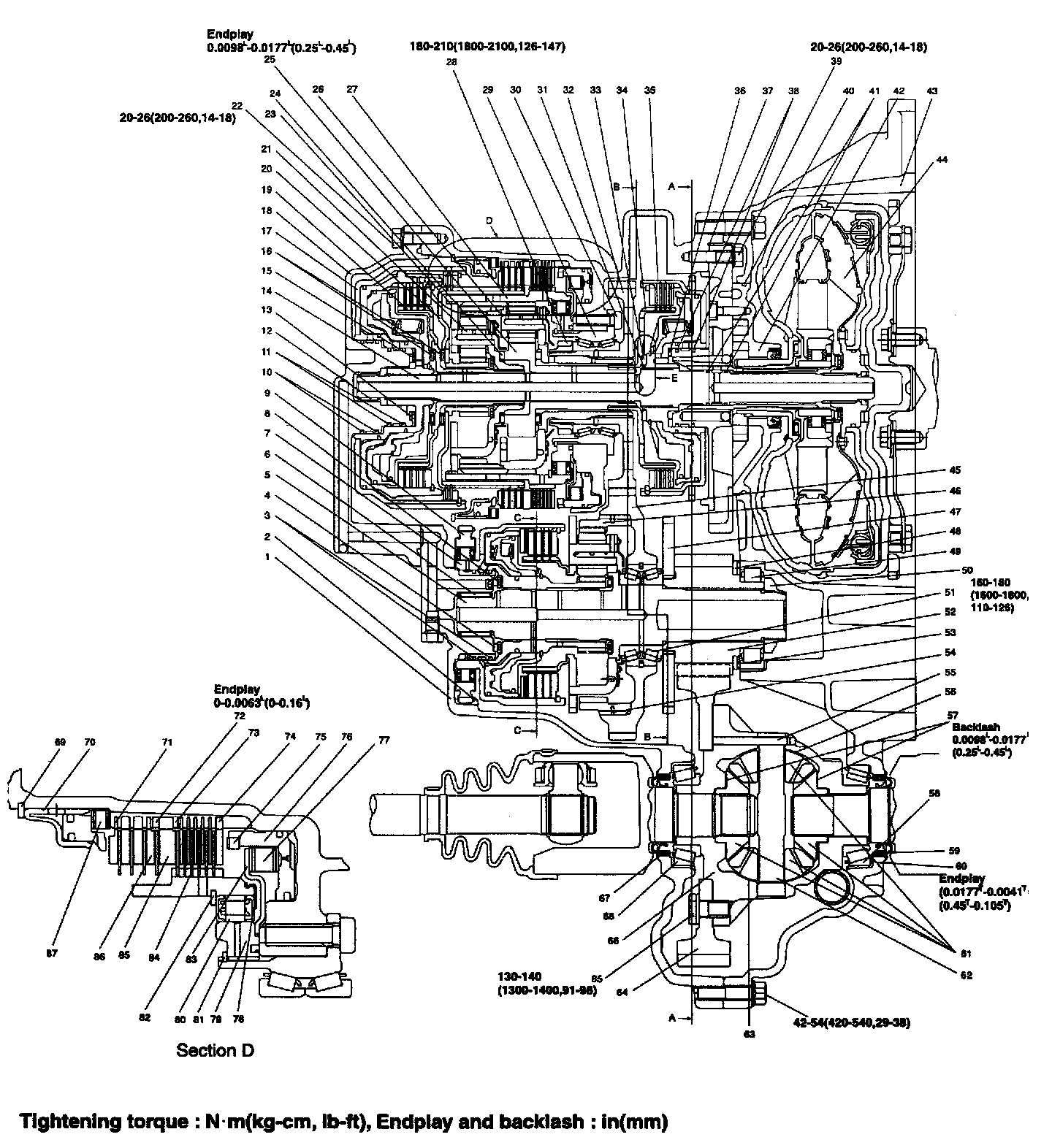

SECTIONAL VIEW

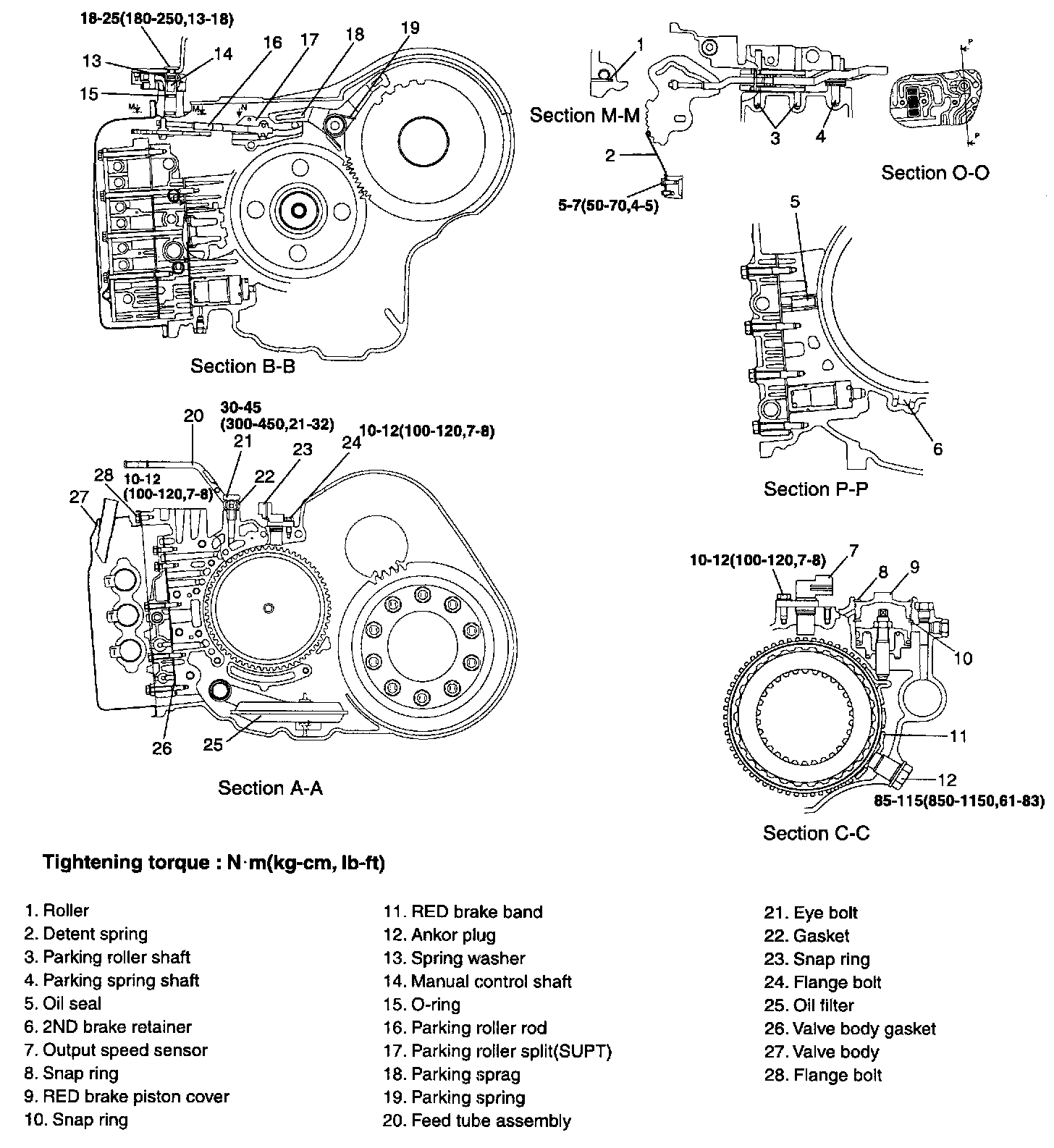

COMPONENTS (1)

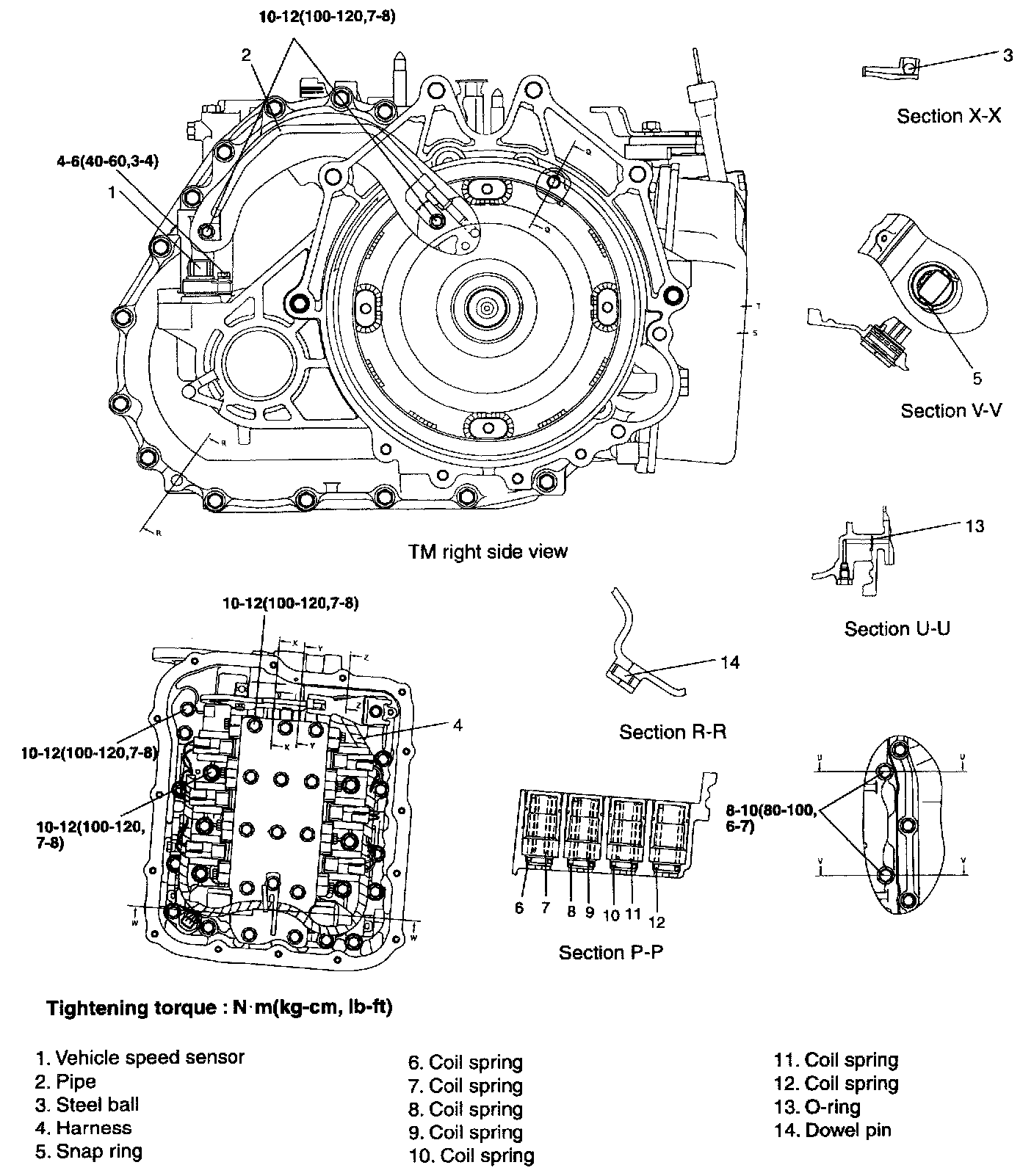

COMPONENTS (2)

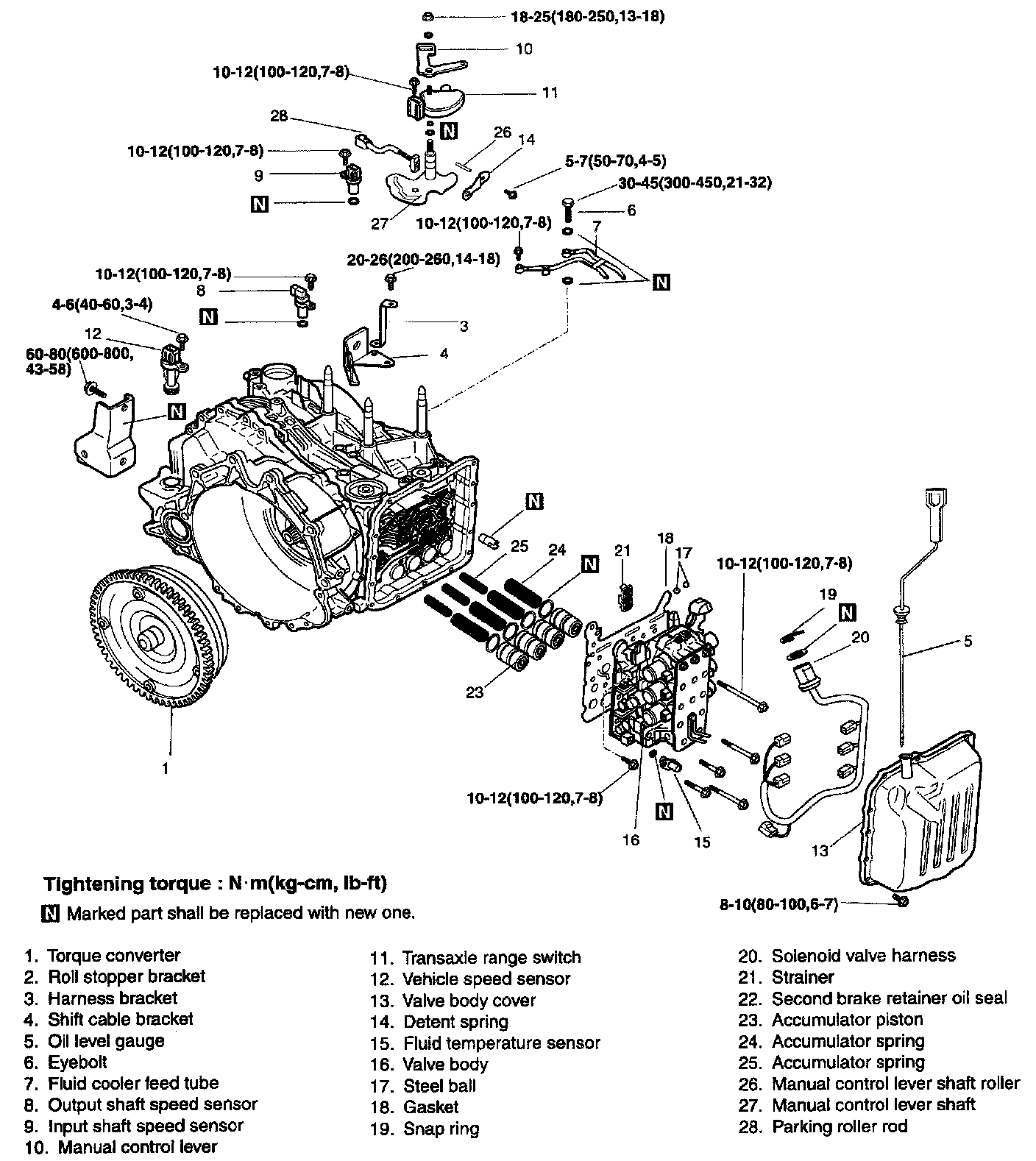

COMPONENTS (3)

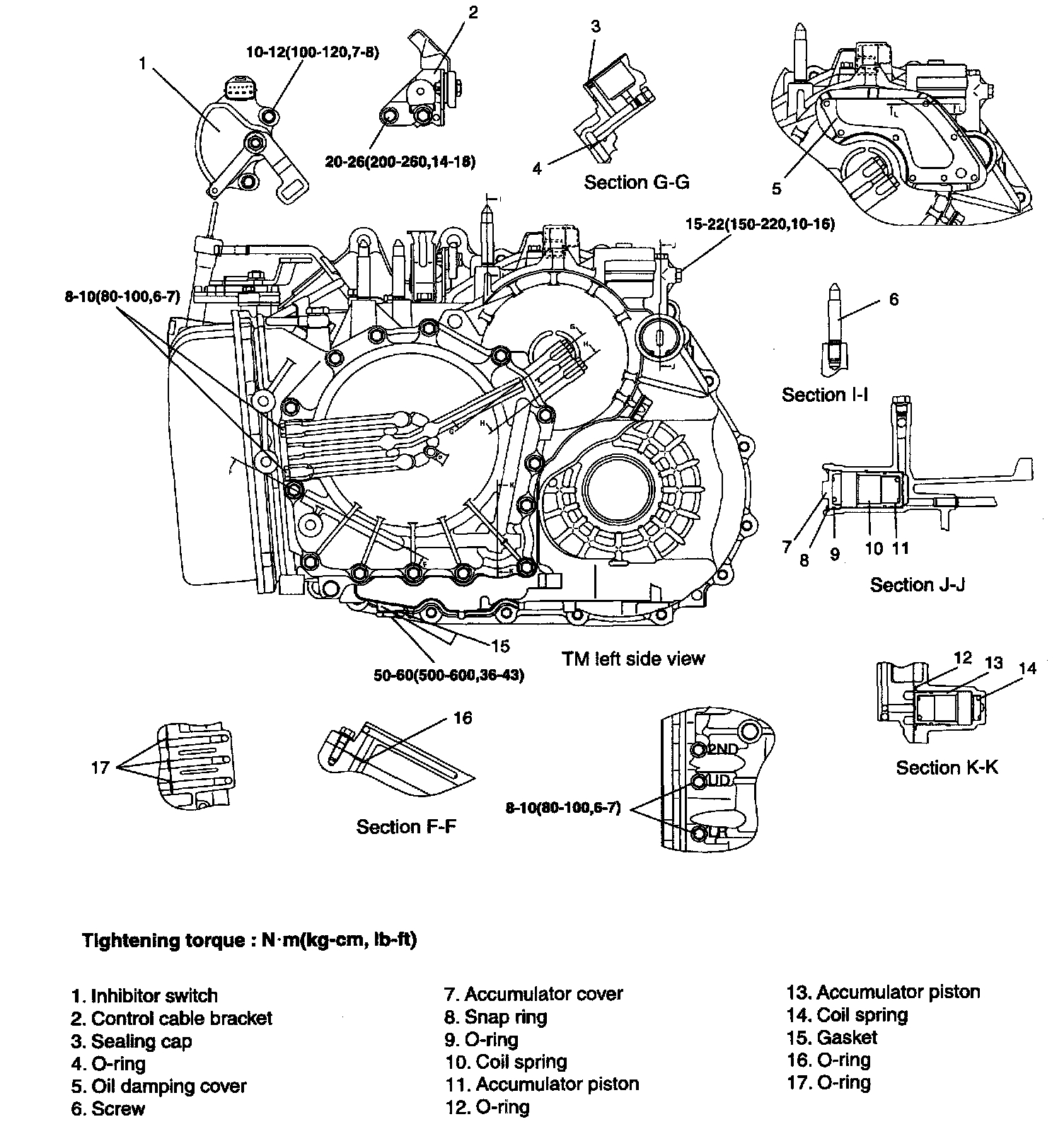

COMPONENTS (4)
