Electronic Brake Control Module
>>
ABS (Anti-Lock Brake System)
ABS (Anti-Lock Brake System)
ABS/TCS CONTROL UNIT

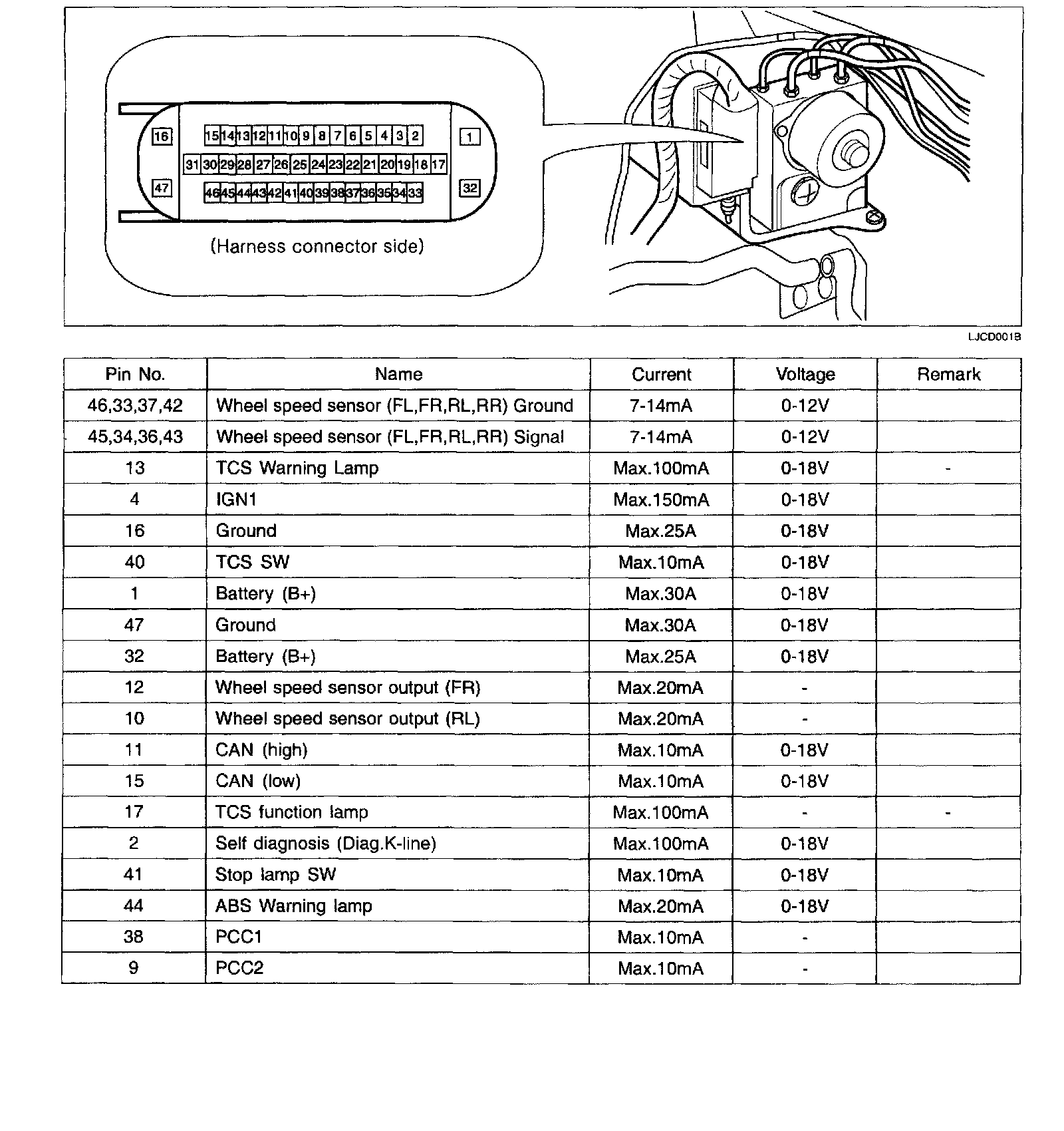

HECU CONNECTOR INSPECTION
