WARNING LAMP CONTROL

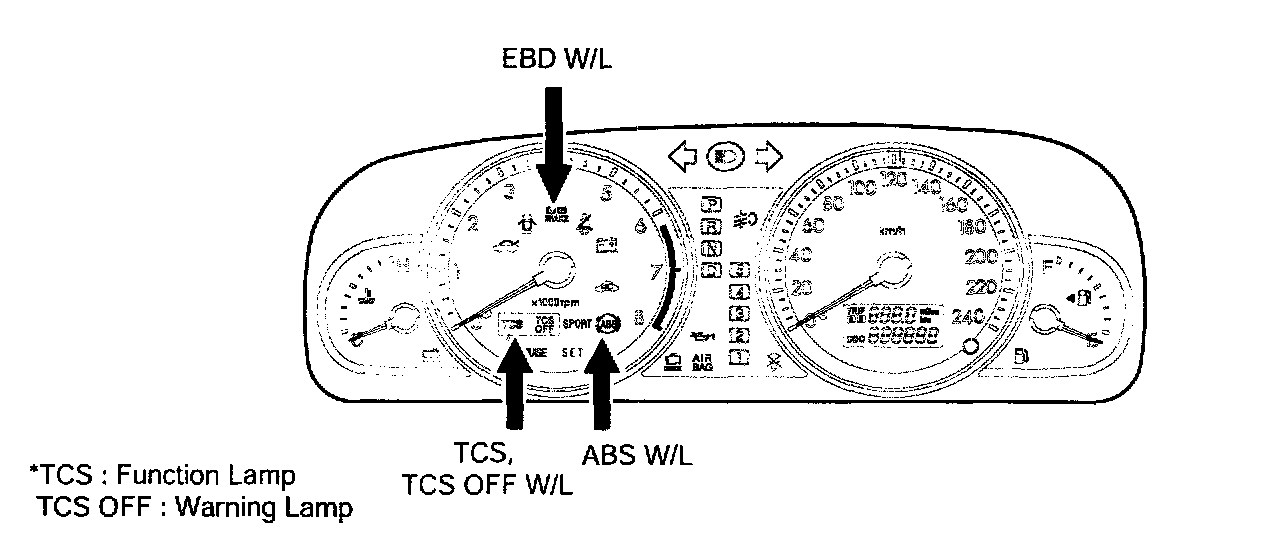

1. ABS warning lamp module
The active ABS warning lamp module indicates the operating condition of the ABS.
The ABS warning lamp is turned on under the following conditions.
- During the initialization phase after ignition switch ON (3 seconds).
- In the event of inhibition of ABS functions by failure.
- When the system ECU is shut down even though ignition power is applied.
- During diagnostic mode.

2. EBD warning lamp module
The active EBD warning lamp module indicates the operating condition of the EBD. However, in case the parking brake switch is turned on, the EBD warning lamp is always turned on regardless of EBD functions.
The EBD warning lamp is turned on under the following conditions.
- During the initialization phase after ignition switch ON. (3 seconds).
- When the system ECU is shut down even though ignition power is applied.
- When the parking brake switch is ON or brake fluid is low level.
- In the event of inhibition of EBD function.

3. TCS warning lamp module the passive TCS warning lamp module indicates the operating condition of the TCS.
The TCS warning lamp is turned on under the following conditions:
- During the initialization phase after ignition switch ON (3 seconds).
- In the event of inhibition of TCS functions by failure.
- During diagnostic mode.

4. TCS function lamp module
The TCS function lamp indicates the operating condition of TCS function.
The TCS function lamp is on under the following condition
- During the initialization phase (3 seconds). The TCS function lamp is blinking under the following conditions.
- During TCS control.
