Electrical Diagrams

Circuit Diagram - Integrated Memory System:

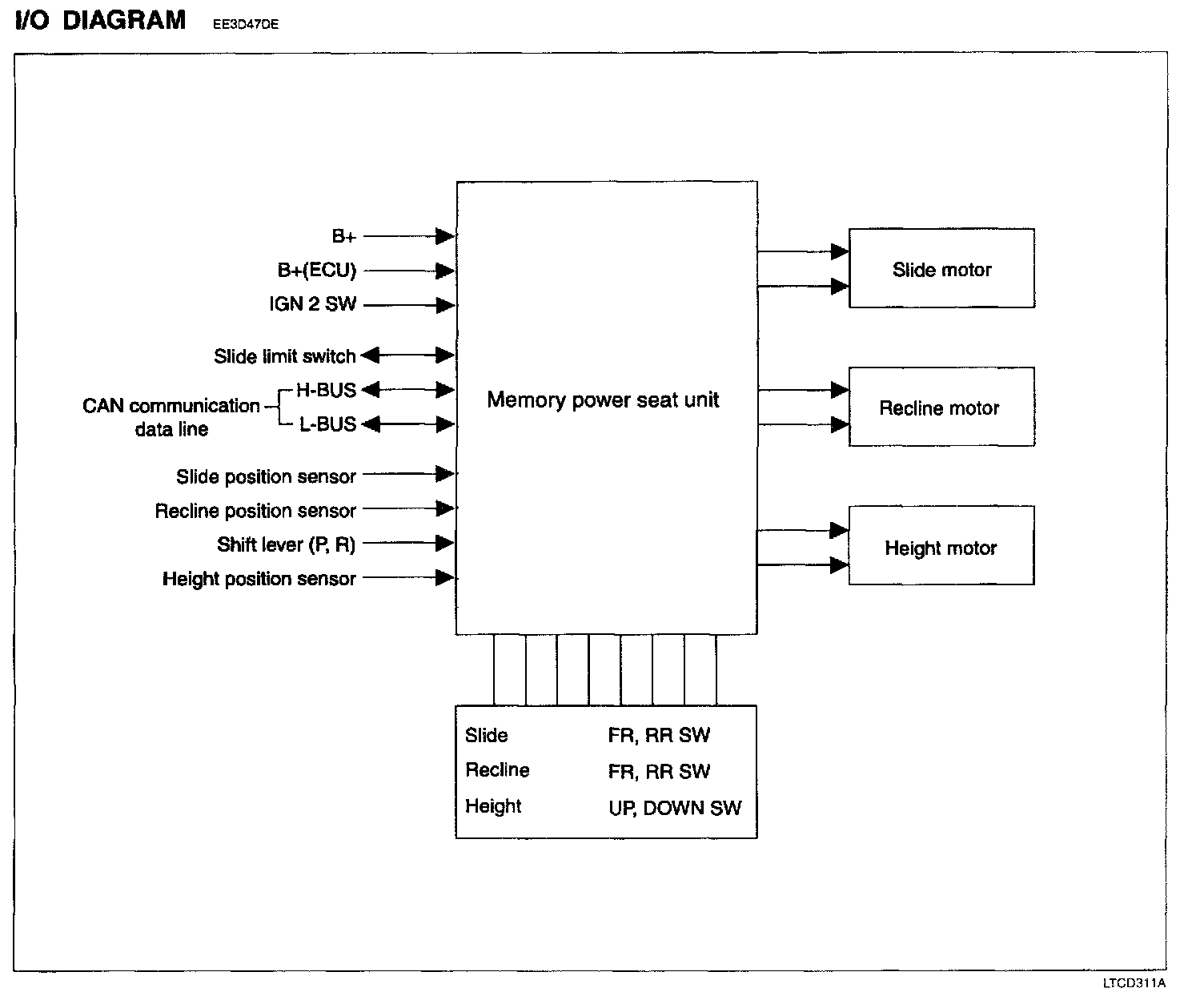

IMS Power Seat Control - I/O Diagram:

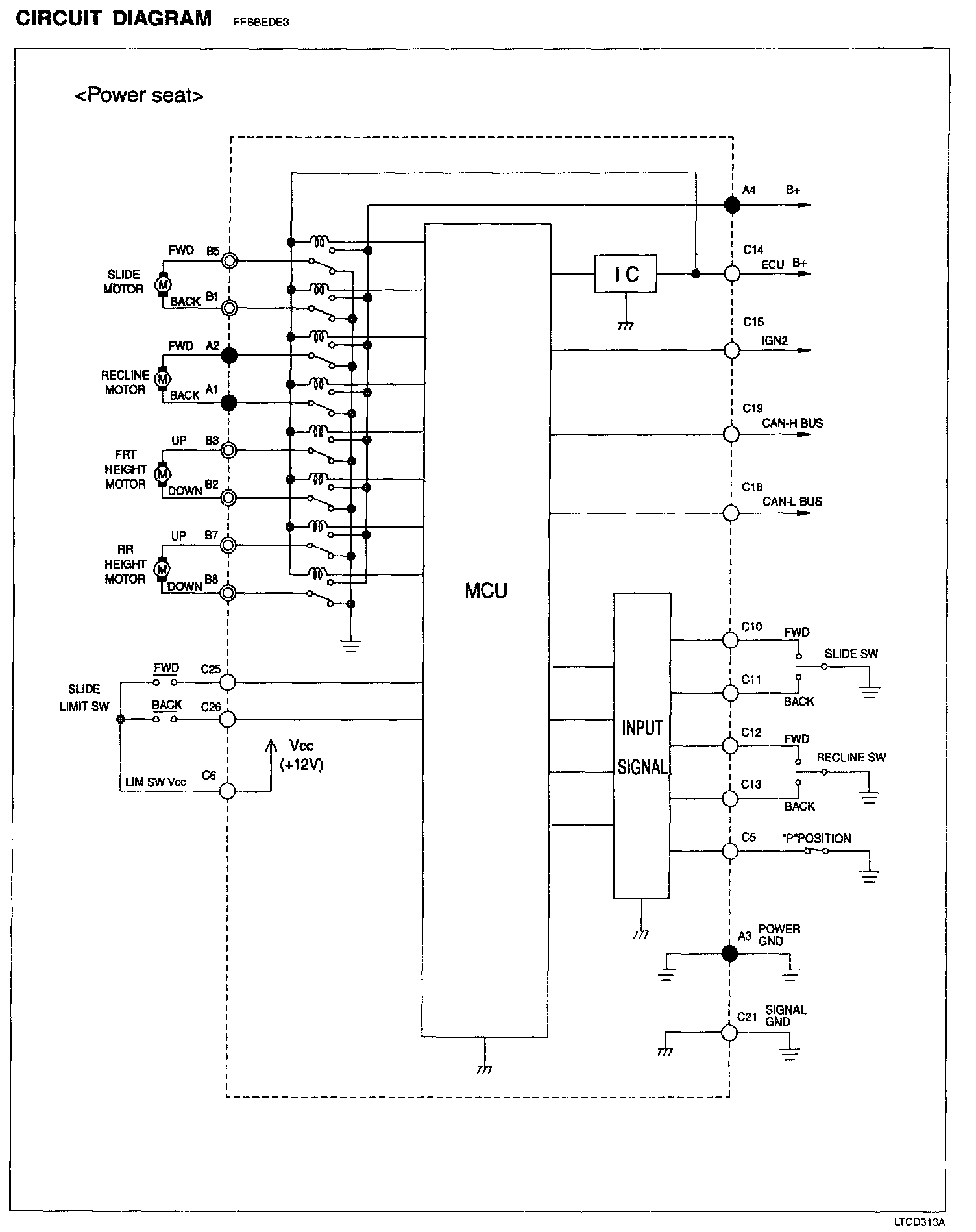

Power Seat - Circuit Diagram:

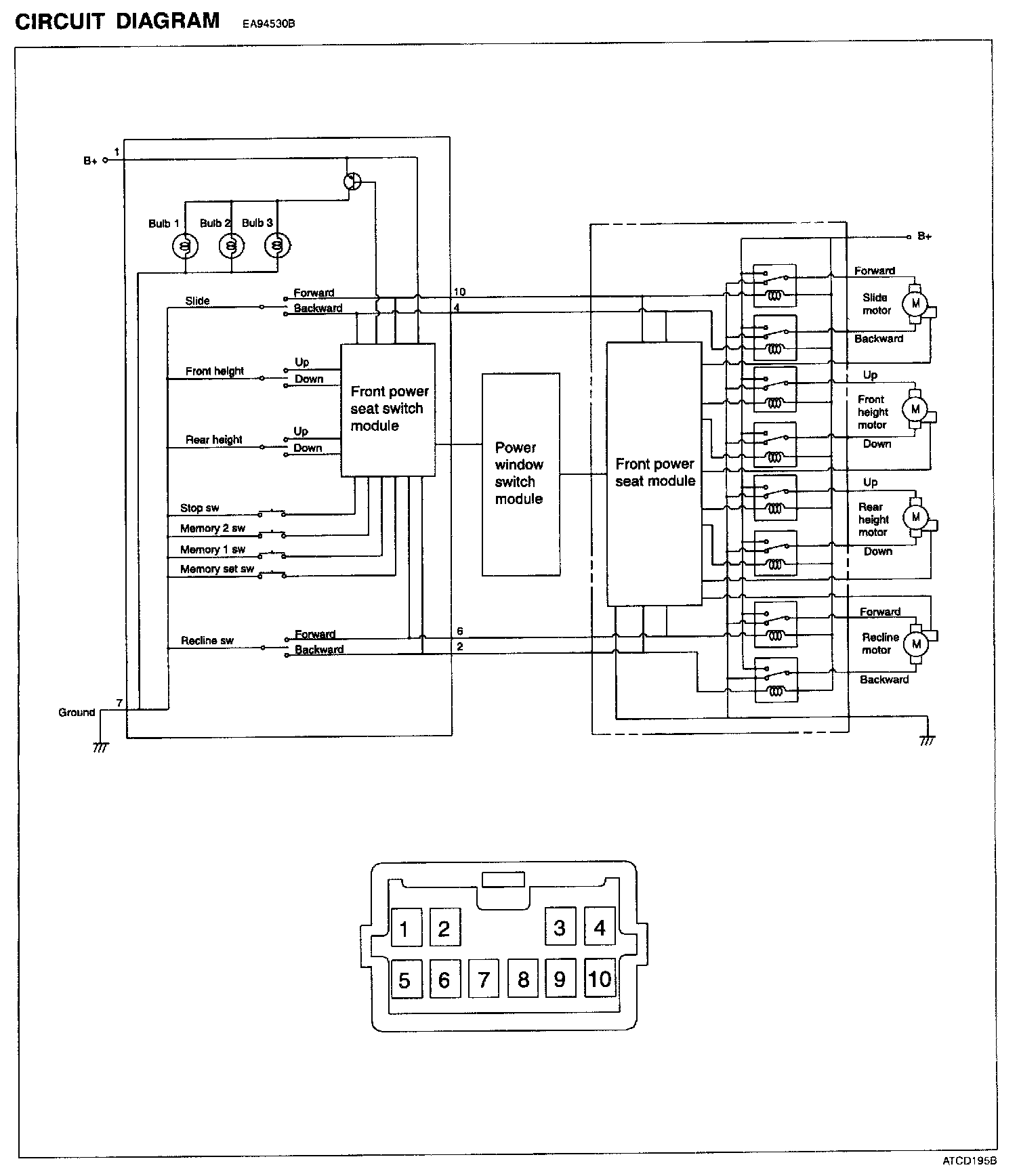

Memory Power Seat - Circuit Diagram:
