Home >> Kia >> 2004 >> Amanti V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Seat Temperature Control Module >> Locations

Seat Temperature Control Module: Locations

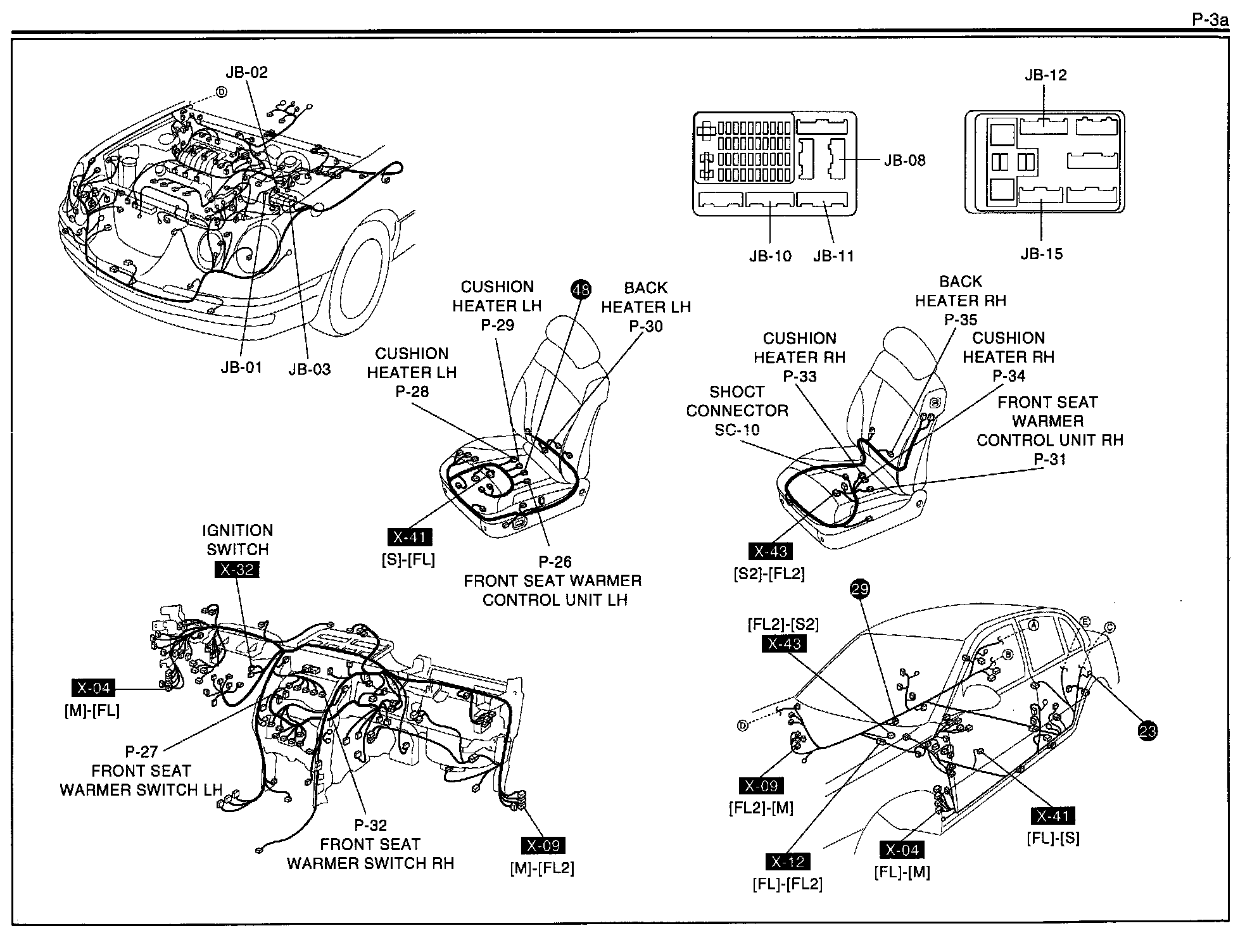

Routing View P-3a:



Routing View P-3b:
