P1195

P1195 ETS LimpHome Target Following Delay

General Description

The Electronic Throttle System (ETS) consists of ETS unit, ETS-motor, Accelerator Position Sensor (APS),Throttle Position Sensor (TPS) and Limp home valve. Among above-mentioned parts, Limp home valve is attached under the throttle body and helps air to flow from the outside through this valve to the engine combustion chamber to prevent the vehicle from engine stall when PCM detects ETS system malfunction.

DTC Description

This DTC is set if the deference betweeen the target value of throttle valve and the real value of throttle valve is higher than threshold value and the limp home valve operates.

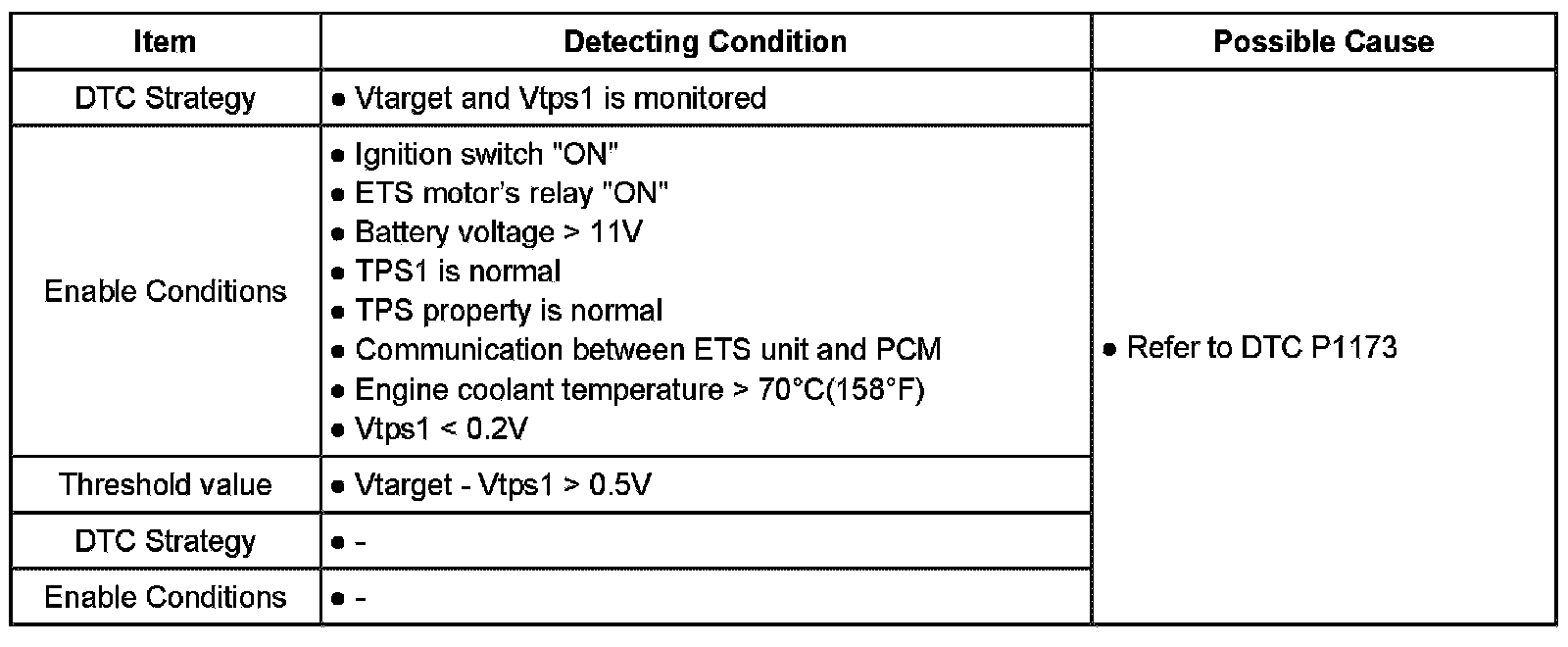

DTC Detecting Condition






- Vtps1: Output voltage of TPS1, Vtarget: Target output voltage of TPS

CAUTION

The inspection procedure for this diagnostic trouble code (P1195) goes to "Inspection & Repair" procedure of DTC P1173. P1173
