P1174 Throttle Actuator Control System - Stuck Closed

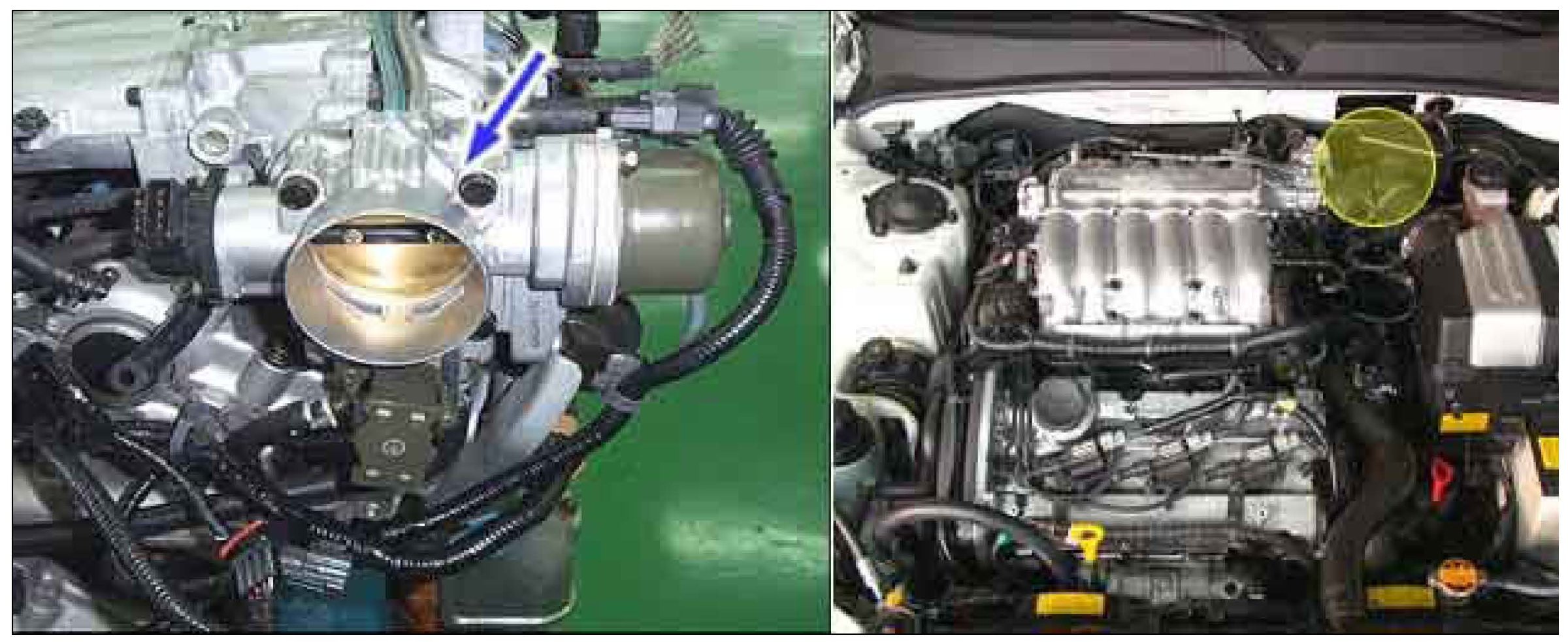

Component Location
General Description
The ETS (Electronic Throttle System) is the throttle body whose throttle angle is controlled by control module. It consists of ETS unit, ETS-motor, Accelerator Position Sensor(APS),Throttle Position Sensor (TPS) and Limp home valve. The PCM sends throttle valve target opening value to ETS unit after calculating from signals such as APS and other input values. The ETS unit controls ETS motor to meet PCM's throttle valve target opening value. TPS is mounted on throttle body assembly and detects the opening angle of the throttle valve. The TPS is a variable resistor (potentiometer) whose characteristic is that the resistance changes according to throttle position angle. TPS 1 and TPS 2 signals are used to monitor PCM's throttle valve target opening values activation between PCM and ETS unit. TPS1's output signal is the main signal to calculate the target value for opening throttle valve and to decide whether TPS2 is normal or not. TPS2's output signal is the sub signal to decide whether TPS1 is normal or not. And if TPS1's signal is abnormal, TPS2's output signal is used as the main signal.
DTC Description
DTC P1174 is set if the change of TPS in all area value is lower than the adaptive value in closed throttle area when initializing ETS.

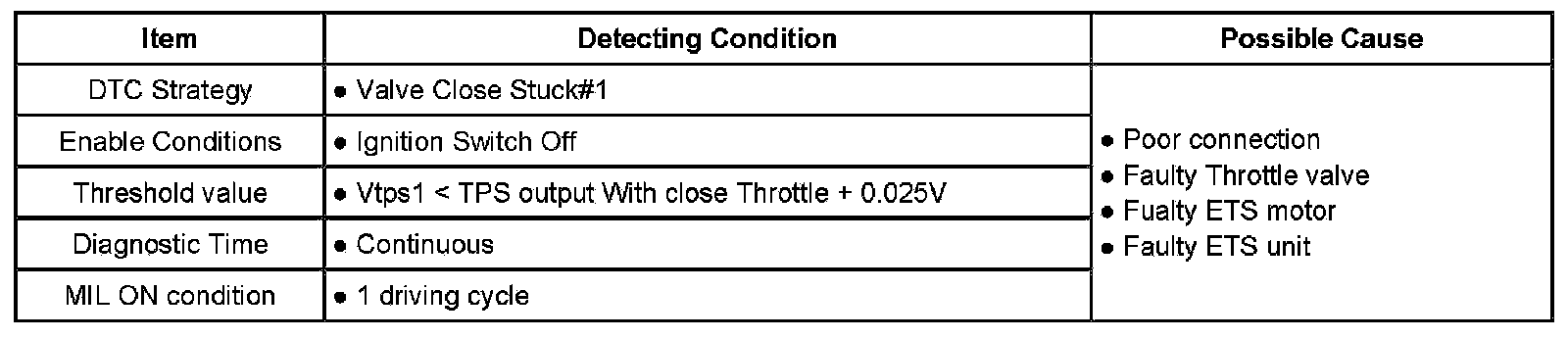

DTC Detecting Condition
Specification

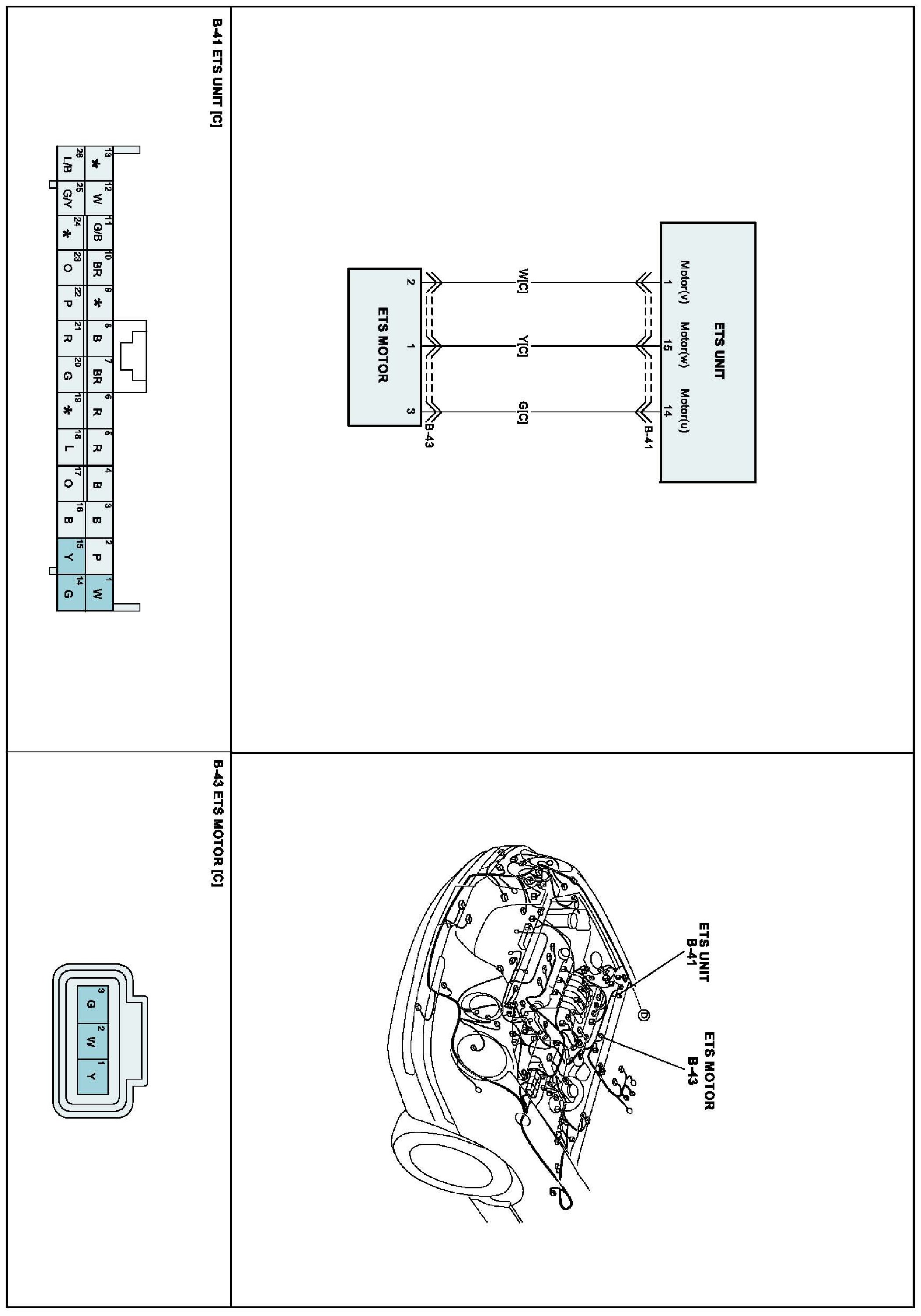

Schematic Diagram

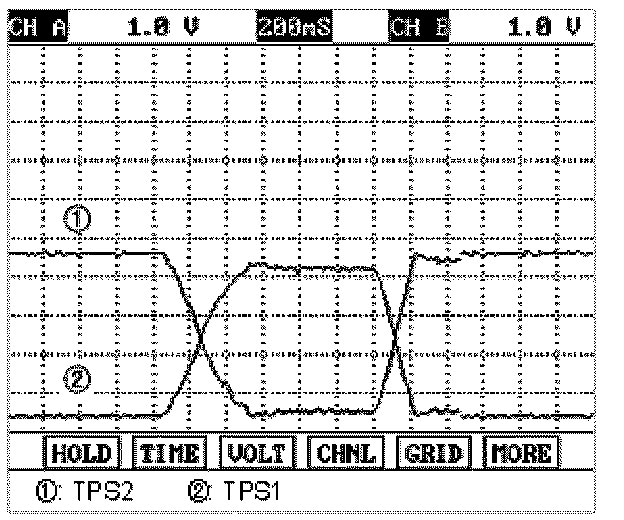

Signal Waveform

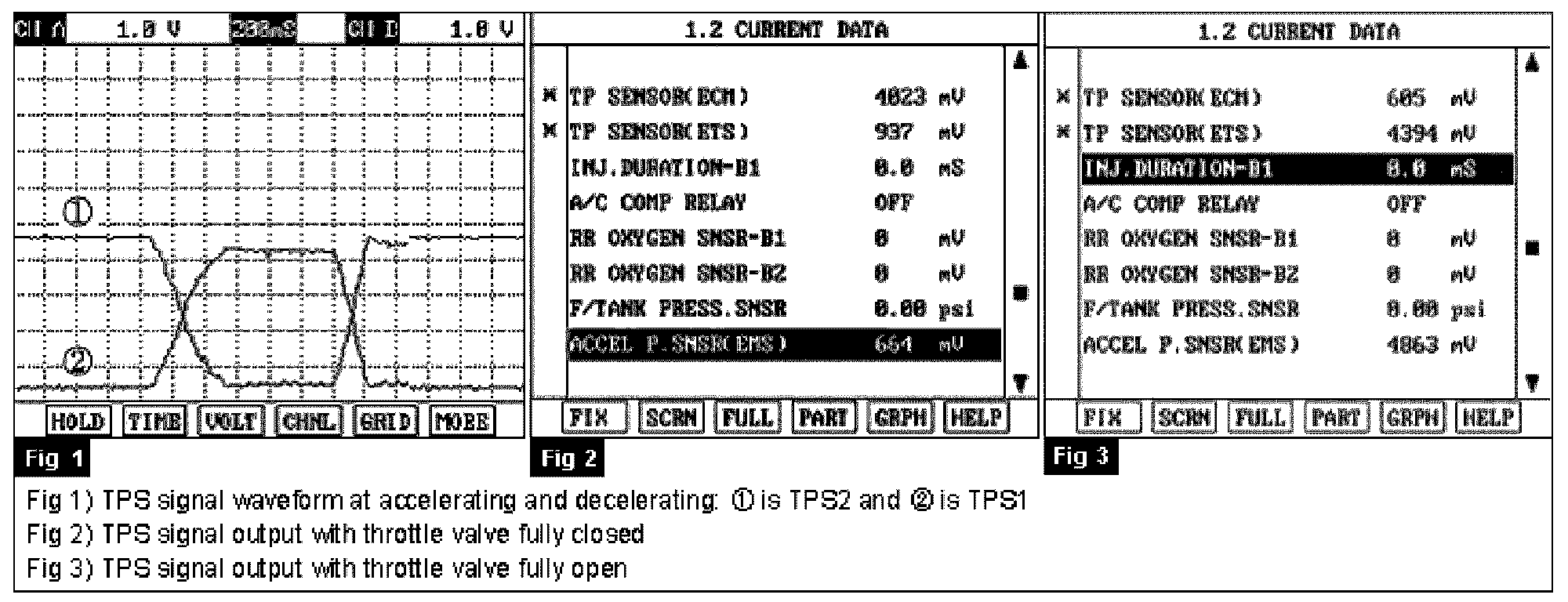

Monitor Scantool Data
1. Connect scantool to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.
3. Monitor the "TPS (EMS)" and "TPS (ETS)" parameter on the scantool.
4. Check signal waveform

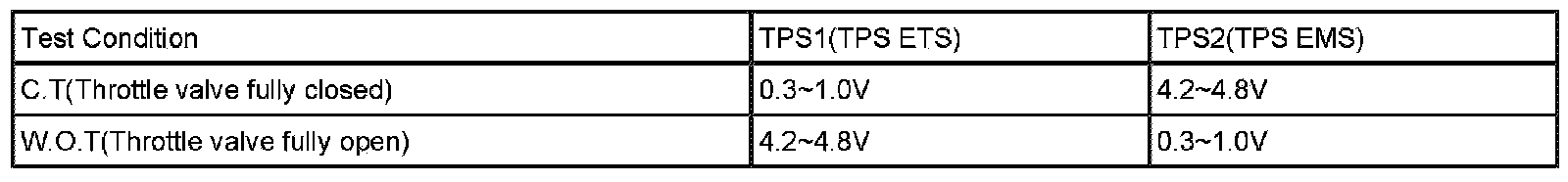

A. Specification
1) Approx. 0.3~1.0V at idle & No load (TPS1 or TPS ETS)
2) Approx. 4.2~4.8V at idle & No load (TPS2 or TPS EMS)
5. Is parameter displayed within specifications?
YES
1) Fault is intermittent caused by poor contact in the related sensor's and/or ETS unit connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "W/Harness Inspection" procedure.
Component Inspection
Visually Check ETS
1. Ignition "OFF".
2. Remove the air hose between MAF and Throttle body.
3. Visually check the overall ETS ( Throttle valve, ETS motor, AP Sensor and TP Sensor). Especially check the throttle valve for closed stuck.
4. Has a problem been found?
YES
1) Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.
NO
1) Go to " Check ETS Motor " as below.
Check ETS Motor
1. Ignition "OFF".
2. Disconnect ETS motor connector

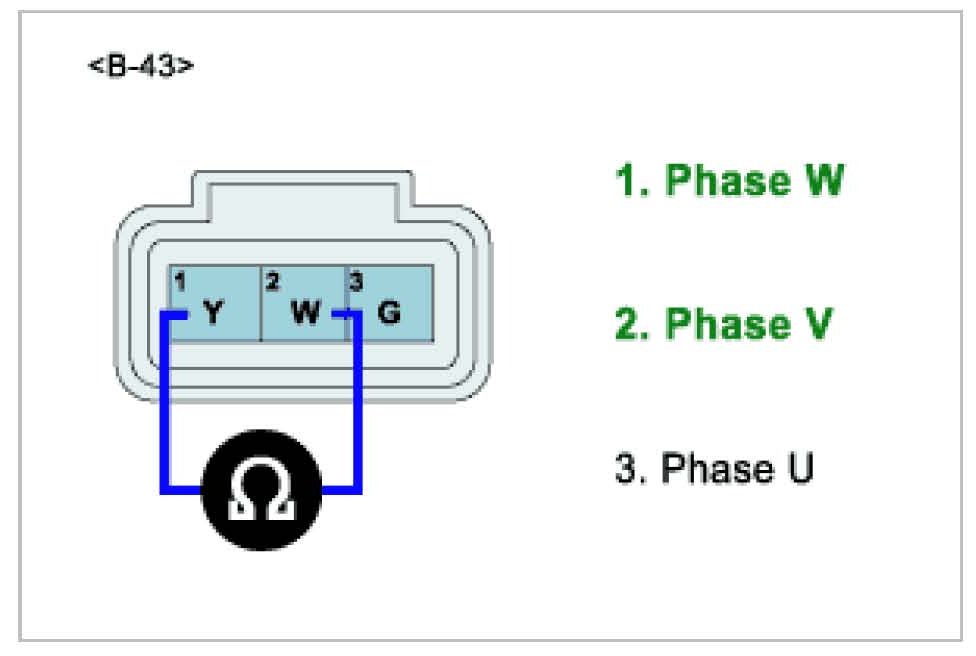

3. Measure resistance between terminals "1" and "2" of the ETS motor connector. (Component side)
4. Measure resistance between terminals "1" and "3" of the ETS motor connector. (Component side)
5. Measure resistance between terminals "2" and "3" of the ETS motor connector. (Component side)
A. Specification
1) Approx. 0.6 ~ 1.5O ("1" to "2")
2) Approx. 0.6 ~ 1.5O ("1" to "3")
3) Approx. 0.6 ~ 1.5O ("2" to "3")
- Difference between each resistance should be less than 0.5O
6. Is the ETS motor resistance within specifications?
YES
1) Substitute with a known-good ETS unit and check for proper operation. If the problem is corrected, replace ETS unit and then go to "Verification of Vehicle Repair" procedure.
If ETS unit needs to be replaced, do initialization after it is replaced.
NO
1) Check ETS motor for contamination,deterioration, or damage. Substitute with a known-good ETS motor and check for proper operation. If the problem is corrected, replace ETS motor and then do initialization. And go to "Verification of Vehicle Repair" procedure.
- Procedure of Initialization
1. Erase the trouble codes on PCM
2. Turn the ignition key on less than 1second and turn it off(Do not start the engine)
3. Turn the ignition key off and keep this condition until the main relay is turned off. (It will takes 10 second)
4. Turn ignition key on more than 1second to record the throttle motor position on the EEPROM.
Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code (DTC) which has been diagnosed
2. Using a Scantool, Clear DTC.
3. Operate the vehicle within conditions noted in the freeze frame data or enable conditions
4. Monitor that all readiness test have been verified as "Complete"
5. Are any DTC�s present ?
YES
1) Go to the applicable troubleshooting procedure.
NO
1) System is performing to specification at this time.
