Symptom Index

Part 1:

Part 2:

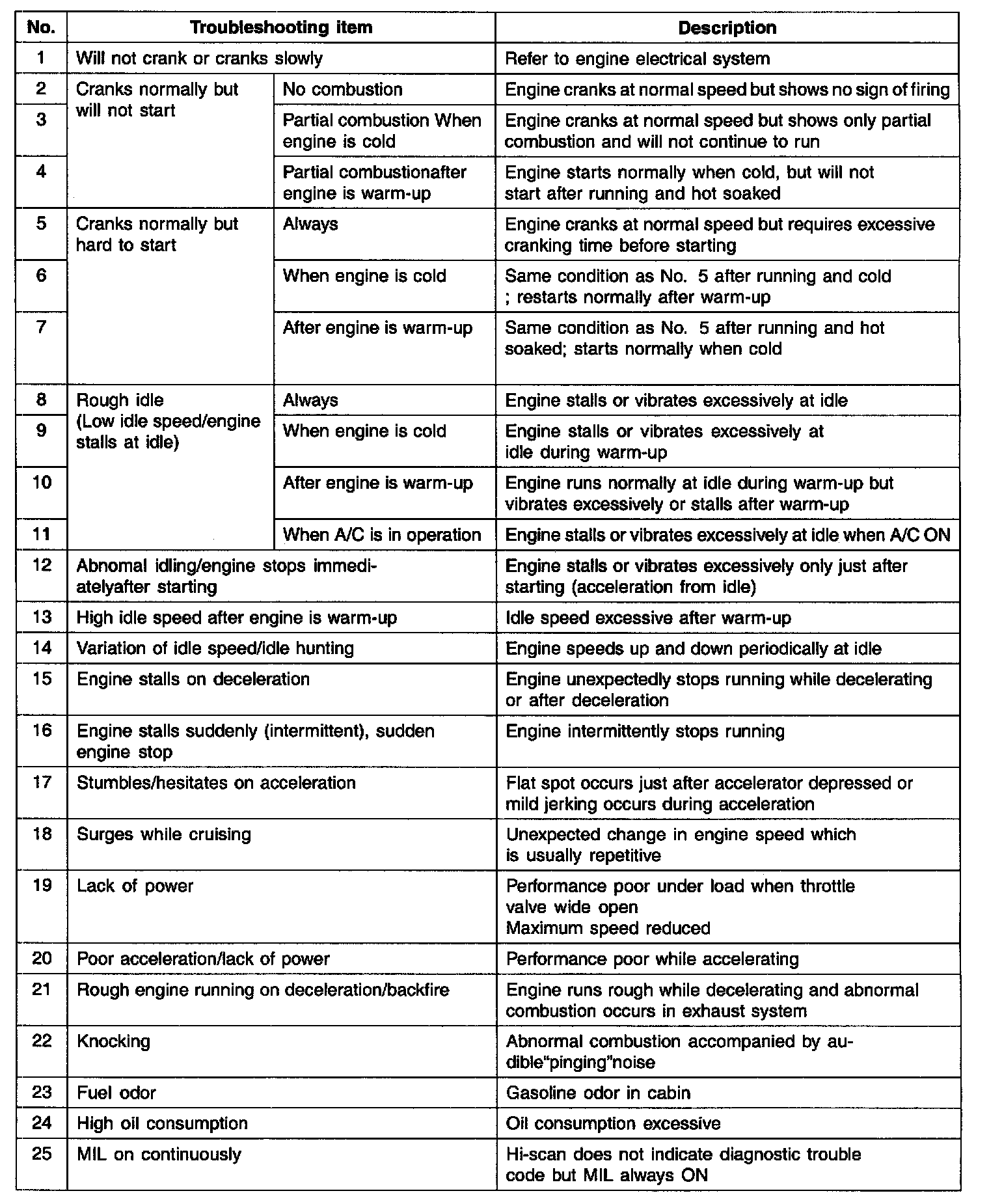

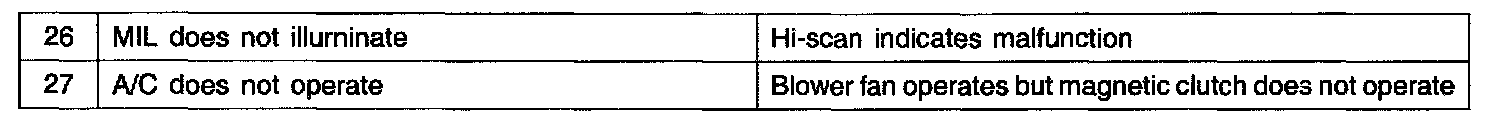

Diagnostic Symptom Index

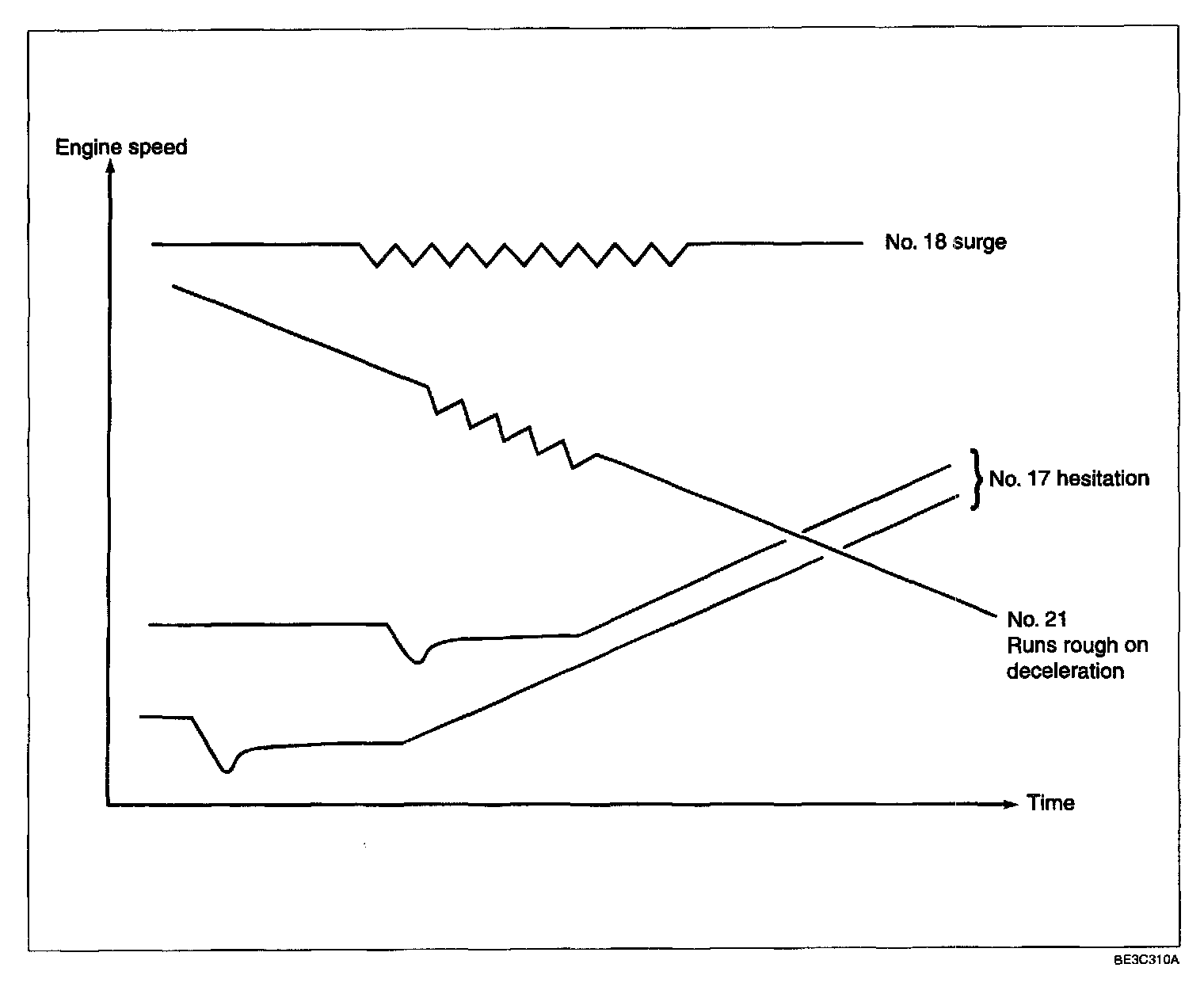

DRIVEABILITY DEFINITIONS

Stumble: Mild jerking during acceleration

Hesitation: Delay in increase in engine speed occurring just after the accelerator pedal is depressed.

Surge: Continuous soft jerking during cruise.

Precautions for symptom diagnosis




Fuel system pressure release

WARNING: The fuel system remains under pressure when the engine is not running. Release fuel system pressure before disconnecting any fuel line to reduce the chance of personal injury or fire damage to vehicle components. Fuel is explosive. An empty fuel tank can still contain explosive gases. Supply adequate ventilation to the work area. Do not smoke, and keep sparks and open flames away. Refer to fuel system for fuel system pressure release procedure.
