Automatic Transaxle Control System

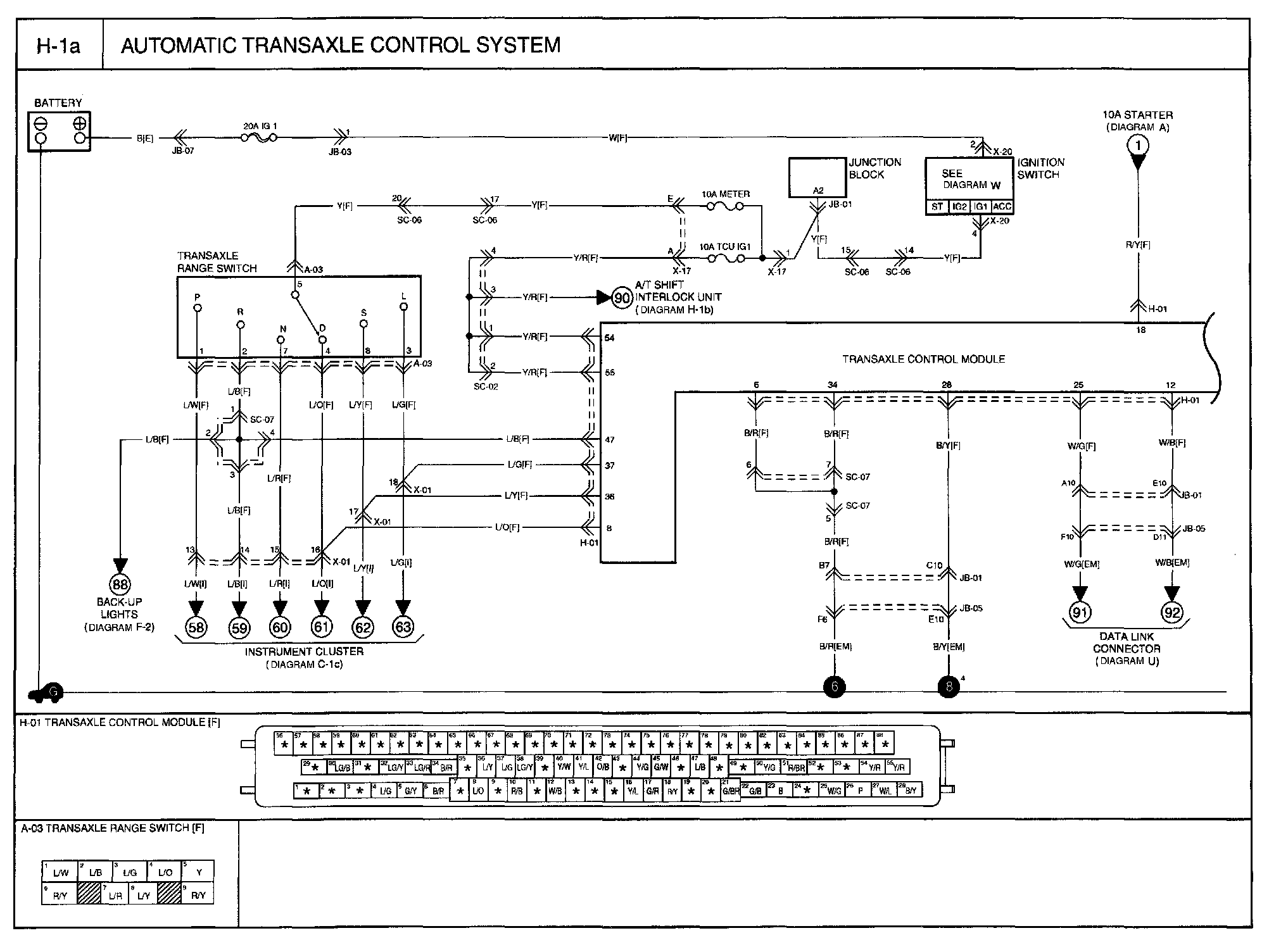

Diagram H-1a:

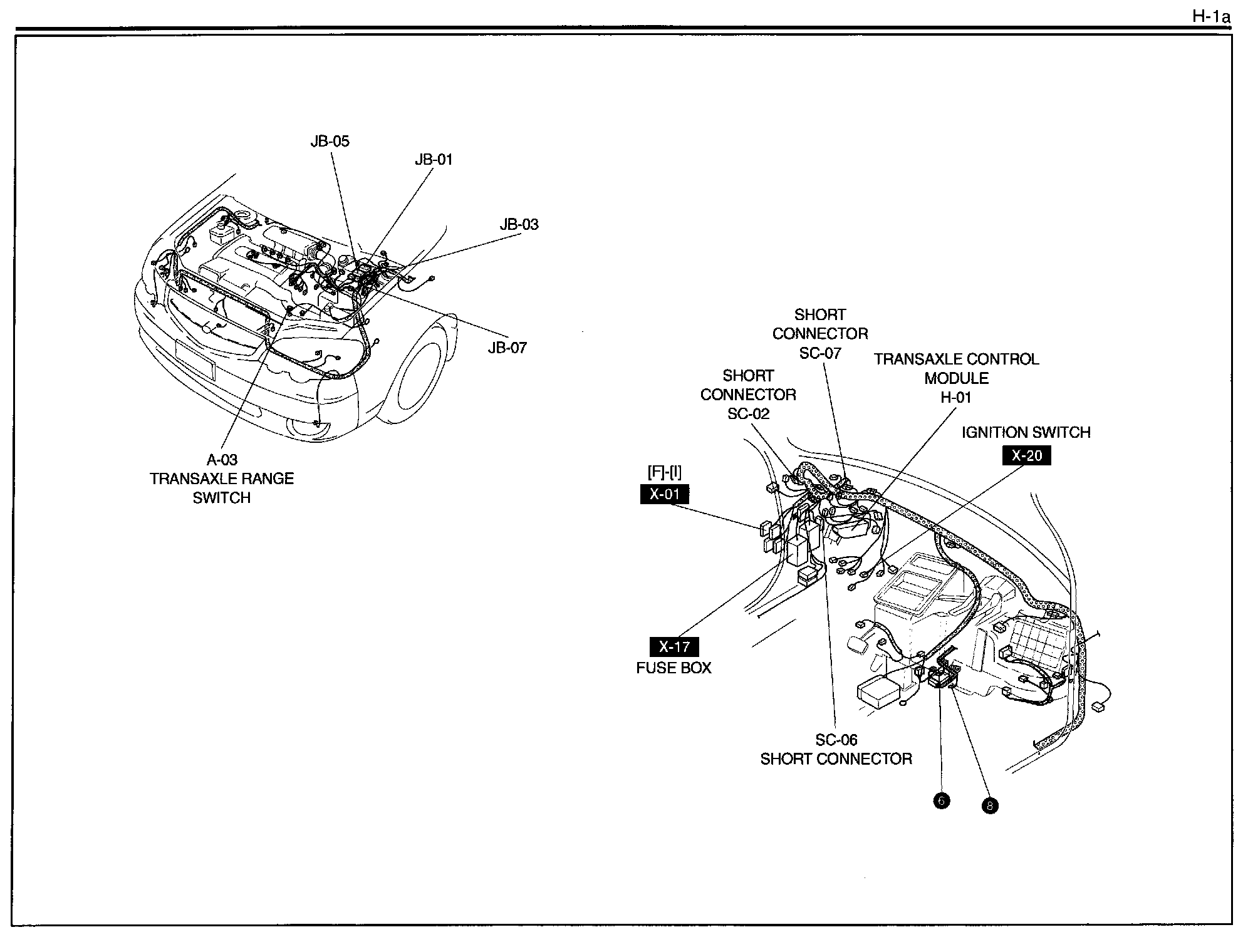

Routing View H-1a:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
