Vehicle Lifting and Jacking

JACK AND SAFETY STAND POSITIONS

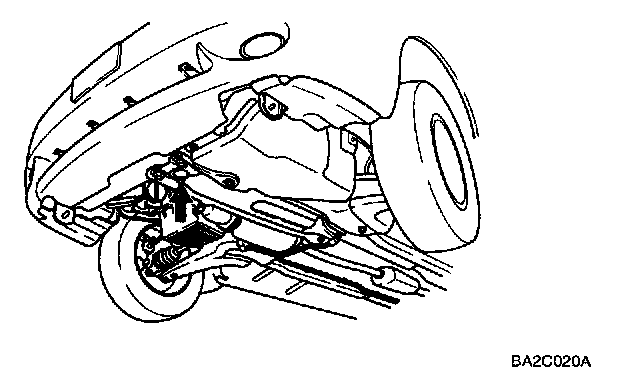

FRONT END JACK POSITION:




At the front subframe

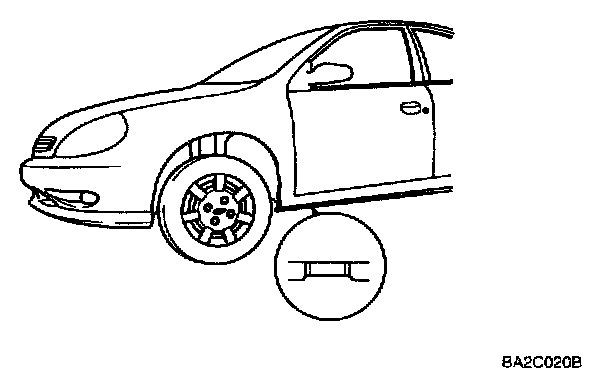

SAFETY STAND POSITIONS:




On both sides of the side sills

JACK AND SAFETY STAND POSITIONS

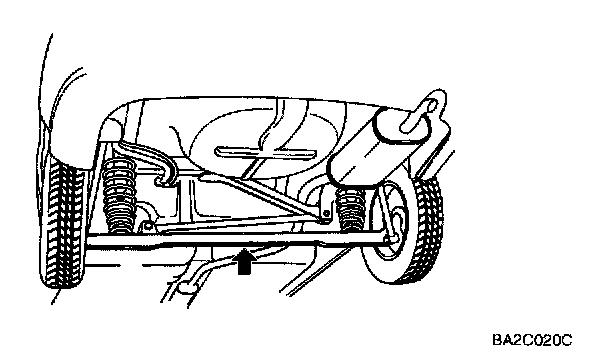

JACk POSITION:




At the center of the rear crossmember

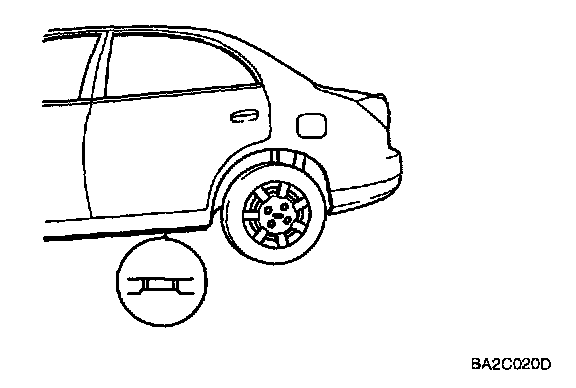

SAFETY STAND POSITIONS:




On both sides of the side sills

VEHICLE LIFT(2-SUPPORT TYPE) POSITIONS

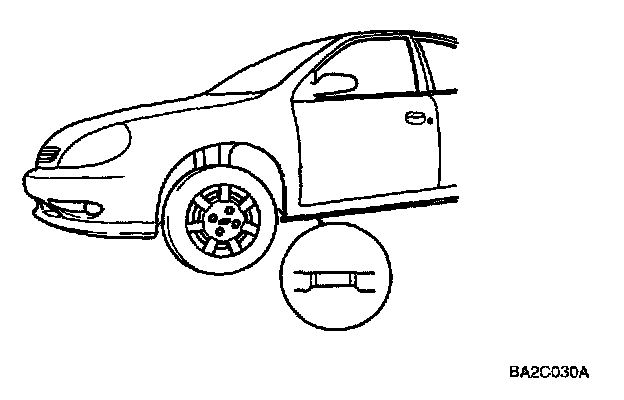

FRONT END




Side sills(both sides)

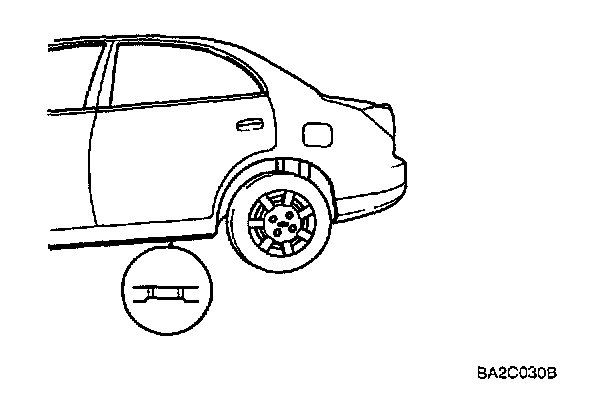

REAR END




Side sills(both sides)
