B-Pillar Upper Trim

Interior Trim:

REMOVAL

1. Remove front and rear scuff plate.
2. Unfasten B-pillar lower trim with a trim removal tool.
3. Remove B-pillar lower trim.
4. Remove two mounting screws from belt guide.
5. Remove upper anchor mounting bolt from safety belt.

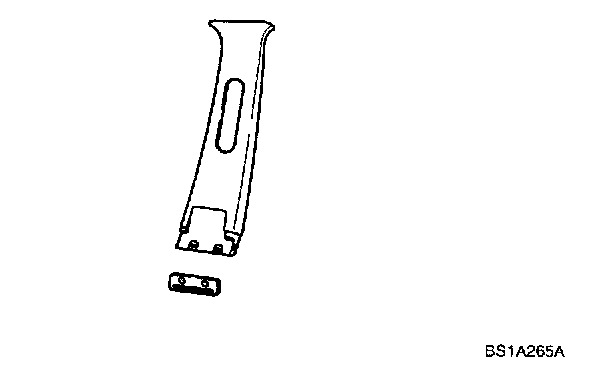

6. Remove B-pillar upper trim with a trim removal tool.

INSTALLATION

1. Position B-pillar upper trim.
2. Install upper anchor mounting bolt to safety belt.

Tighten mounting bracket bolt to 40 - 55 N.m (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

3. Install two screws to belt guide.
4. Position B-pillar lower trim and press B-pillar lower trim.
5. Install front and rear scuff plate.
