Windshield Washer Spray Nozzle: Adjustments
1.

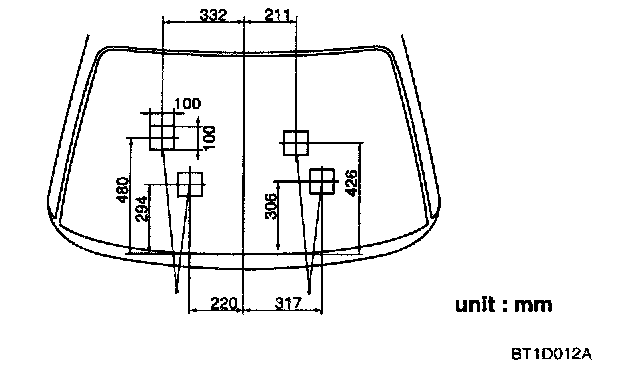

Spray should center on driver and passenger sides of front windshield. If off-line, adjust by slightly turning the nozzle.
2.
If clogged or restricted, use a needle or wire to clear nozzle exit.
