Electrical Diagrams

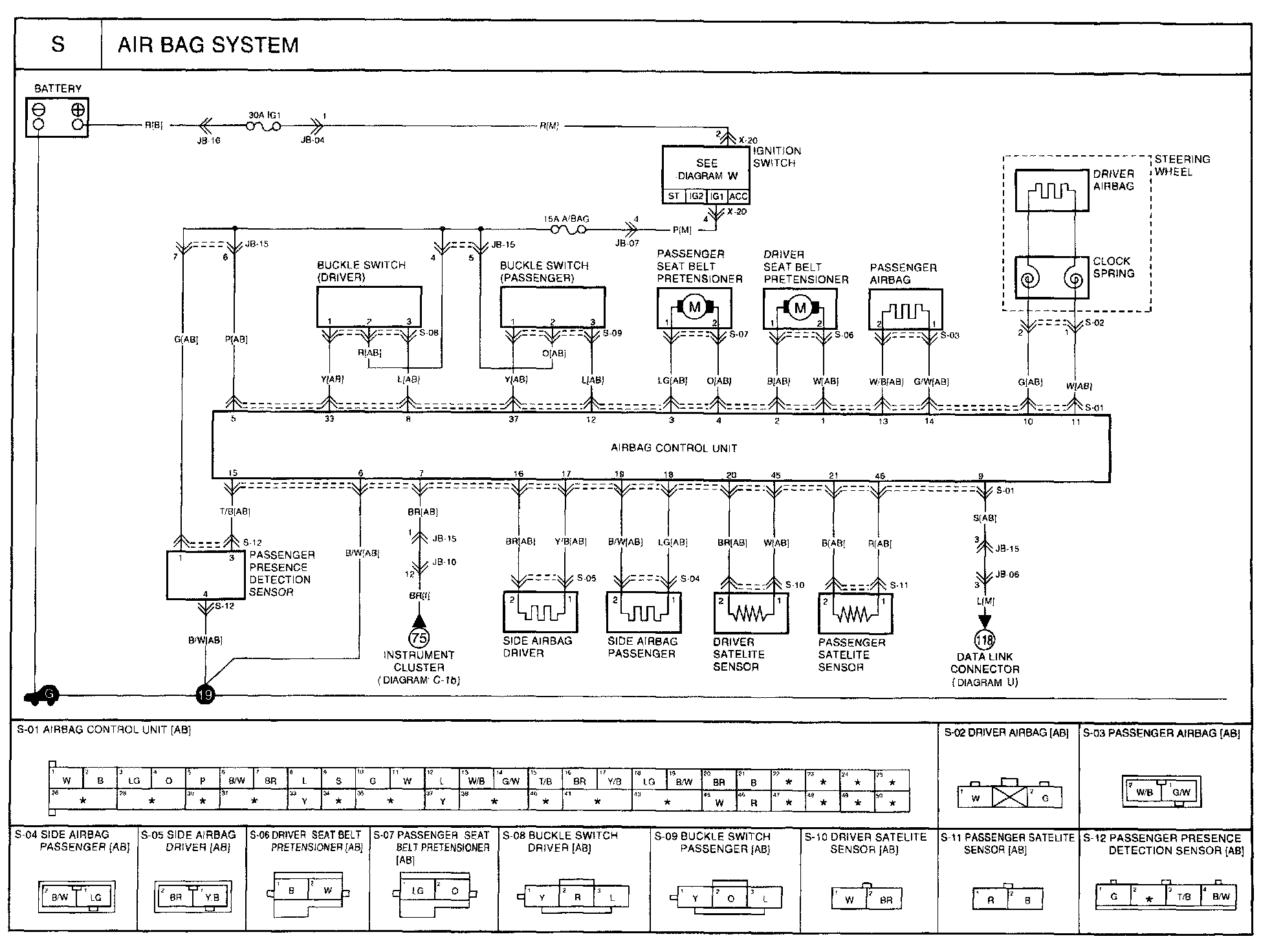

Diagram S:

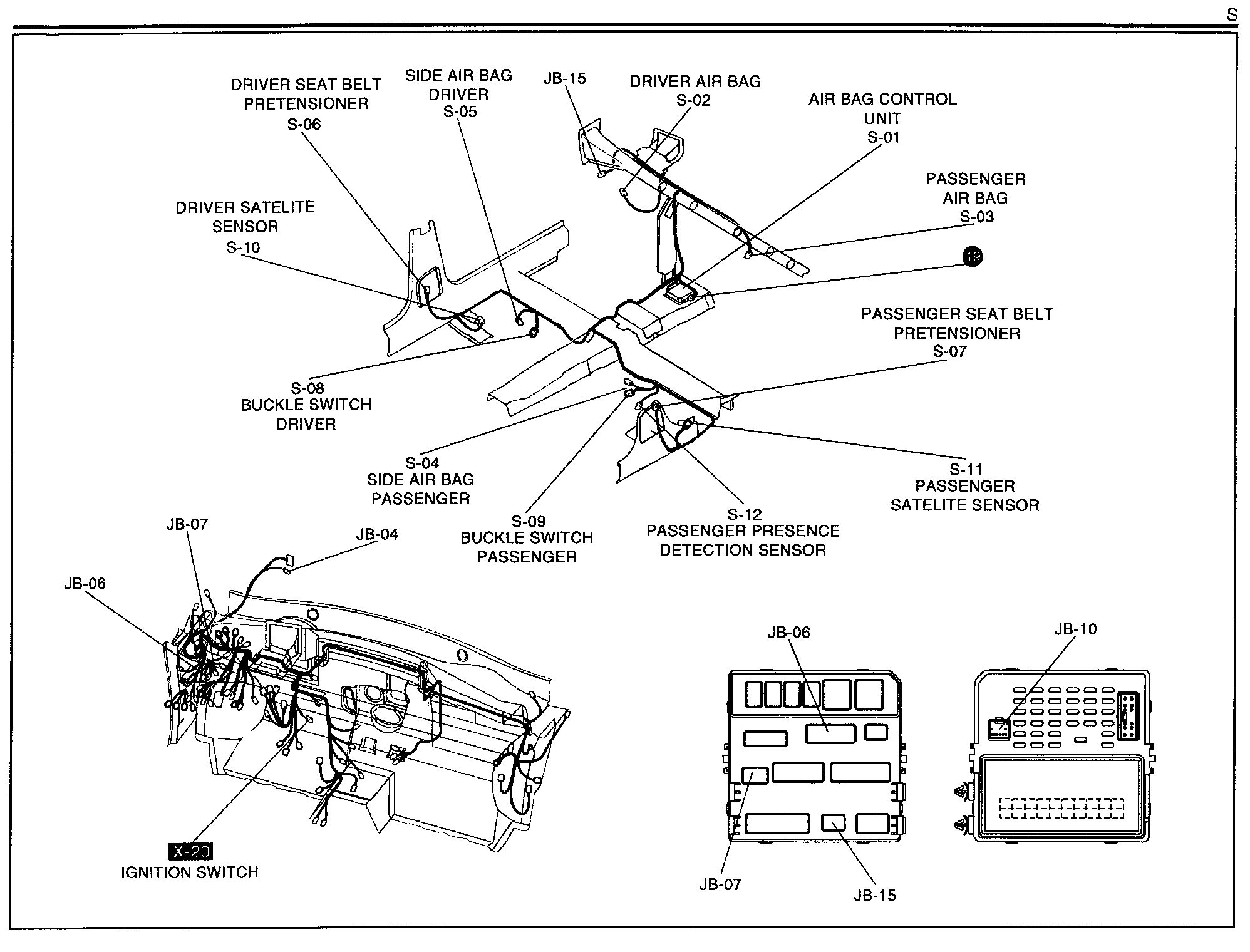

S - Air Bag System Harness/Connector Symbols:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
