Fuel Pump: Testing and Inspection

FUEL PUMP OPERATION CHECK

1. Turn the ignition switch to the OFF position.

2. Apply battery voltage to the fuel pump drive connector to check that the pump operates.

NOTE: The fuel pump is in-tank type and its operating sound is hard to hear without removing the fuel tank cap.

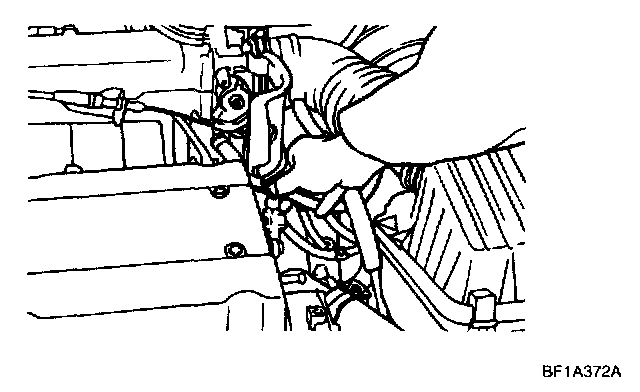

3. Pinch the hose to check that fuel pressure is felt.
