Oil Filter: Service and Repair

Filter Selection

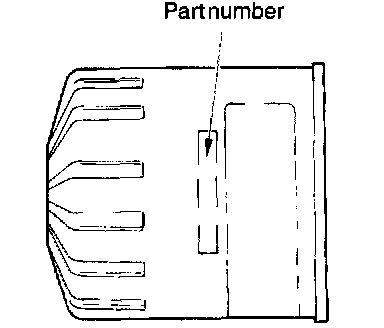

All Kia engines are equipped with a high quality, throw-away oil filter. This filter is recommended as a replacement filter on all vehicles. The quality of replacement filters is various considerably. High quality replacement filters should be used to assure the most efficient service. Make sure that the rubber gasket from the old oil filter is completely removed from the contact surface on the engine block before installing the new filter.

Procedure for Replacing Oil Filter
1. Use a filter wrench to remove the oil filter.





2. Before installing the new oil filter on the engine, apply clean engine oil to the surface of the rubber gasket.
3. Tighten the oil filter to the specified torque.
Oil filter 17 - 25 Nm (170 - 250 kg.cm, 12 - 28 ft. lbs.)
4. Start and run the engine and check for engine oil leak.
5. After stopping the engine, check the oil level and add oil as necessary.
