Combination Switch: Testing and Inspection

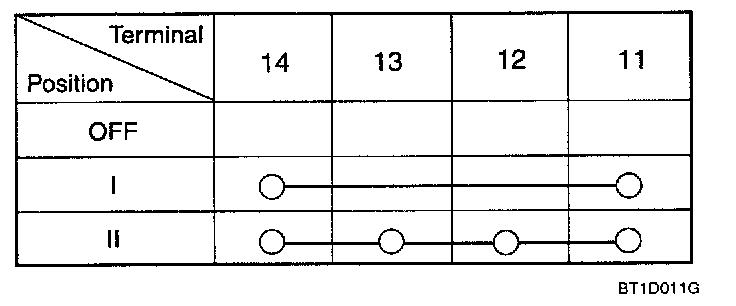

Lighting Switch (Connector "1"):

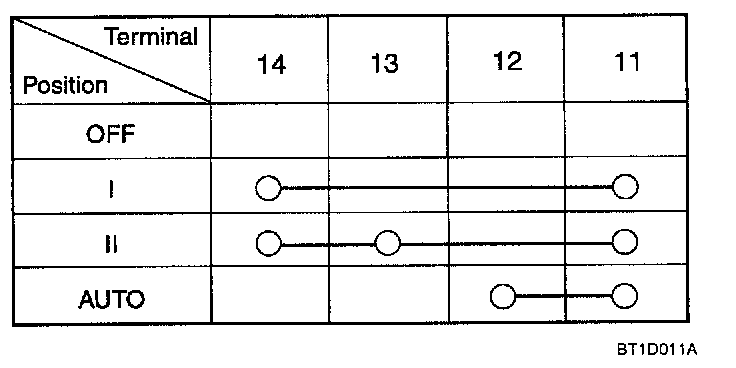

Lighting Switch-Auto Light (Connector "1"):

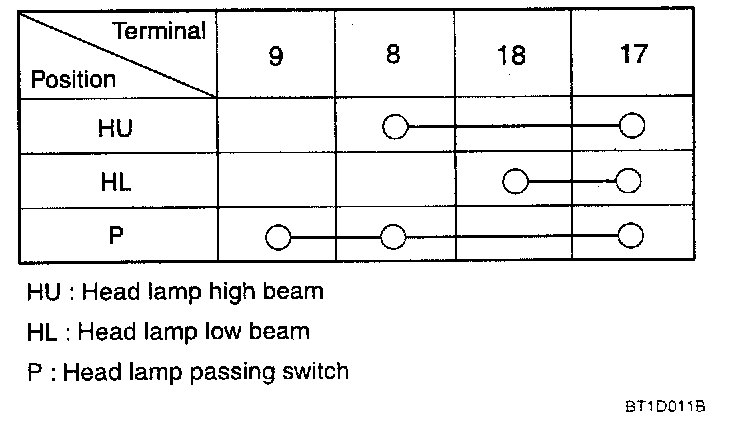

Dimmer And Passing Switch (Connector "1"):

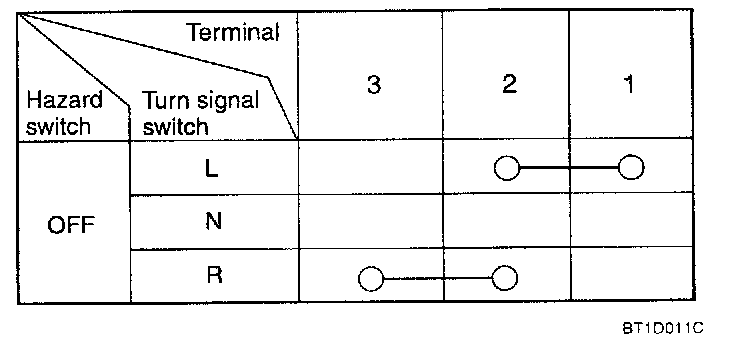

Turn Signal And Lane Change Switch (connector "1"):

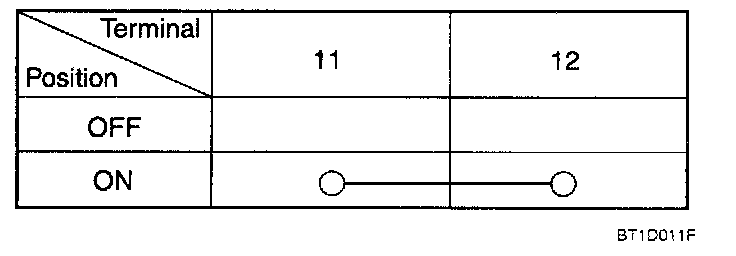

Front Fog Switch (connector "1"):

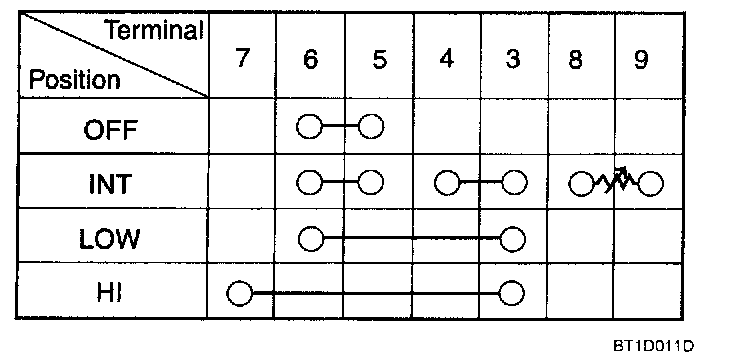

Wiper Switch (connector "2"):

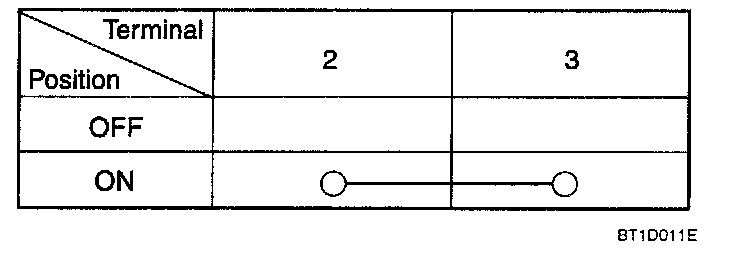

Washer Switch (connector "2"):

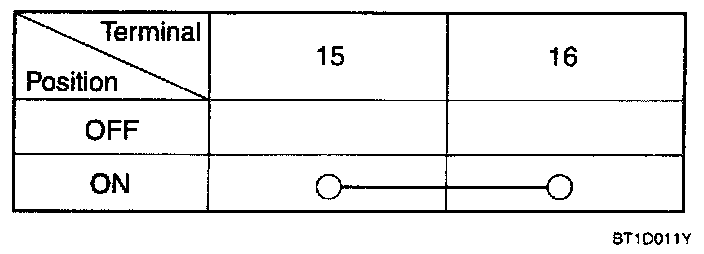

Mist Switch (connector "2"):

CHECK THE CONTINUITY BETWEEN THE TERMINALS WHILE OPERATING THE SWITCH
