Campaign - A/C Receiver Dryer Replacement

VOLUME
3

GROUP
Campaign

NUMBER
033

MODEL
Optima

DATE
September 2003

SUBJECT
Service Campaign: Optima A/C Receiver-Drier

This bulletin provides information on a service campaign to replace the air conditioning system receiver-drier on 2003MY Optima models produced from 11/14/02 through 4/16/03.





The desiccant bag inside the receiver-drier may come apart allowing the desiccant material to enter the system and plug the expansion valve. Should this occur, the A/C system will not cool. To correct the potential for this occurring, Kia is conducting a service campaign to replace the receiver-drier in affected vehicles.

* NOTICE
There is no charge to the customer for this repair.

INSPECTION:

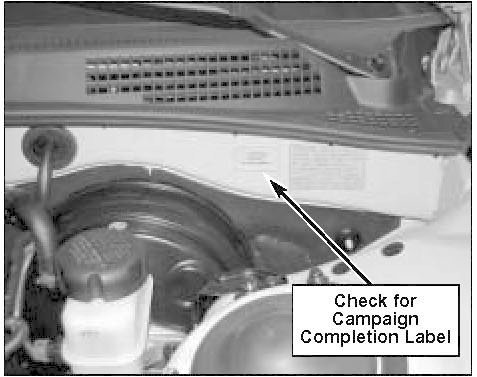

Open hood and check for SC033 Campaign Completion Label.

REPAIR PROCEDURE:

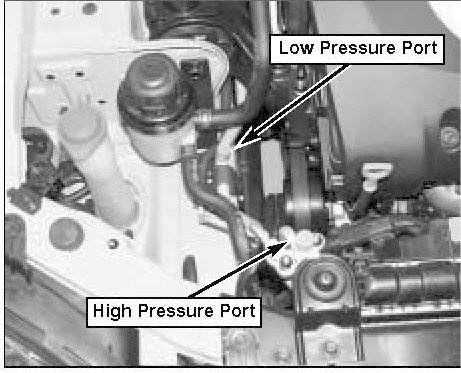

1. Connect charging station and recover refrigerant following instructions for charging station being used.

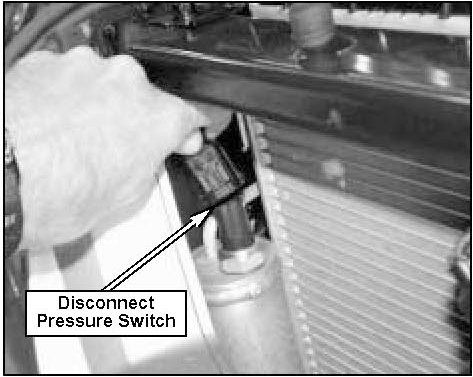

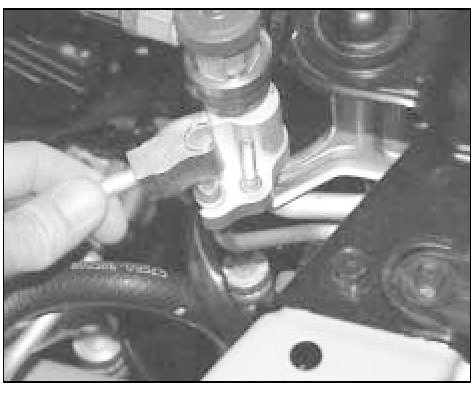

2. Disconnect electrical connector from pressure switch.

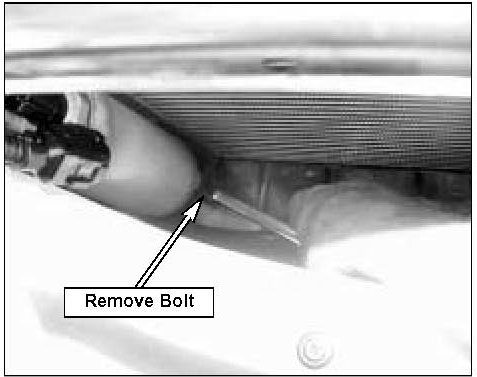

3. Remove bolt securing inlet line into receiver-drier.

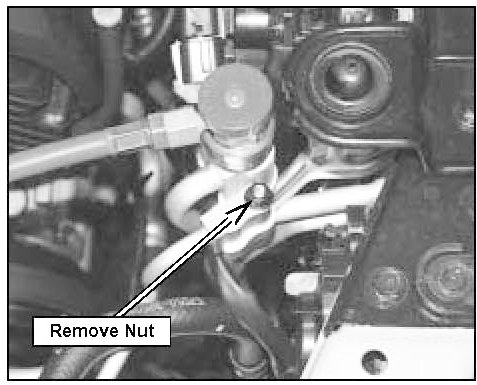

4. Remove nut securing liquid line to condenser fitting.





5. Remove liquid line from fitting.

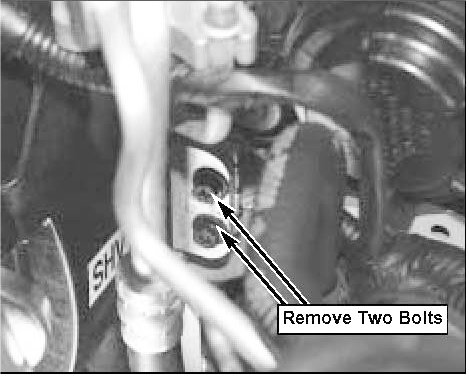

6. Remove two bolts securing receiver-drier to condenser.

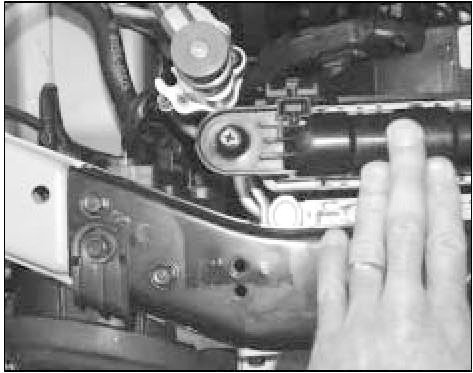

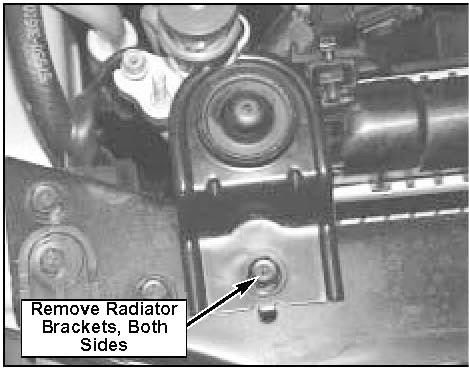

7. Remove bolts securing upper radiator brackets to core support, remove brackets.





8. Lean radiator rearward for clearance and remove receiver-drier from vehicle.

CAUTION
Take care to avoid damage to condenser and bumper when removing receiver-drier from vehicle.





9. Remove pressure switch from removed receiver-drier. Remove and discard old 0 ring.

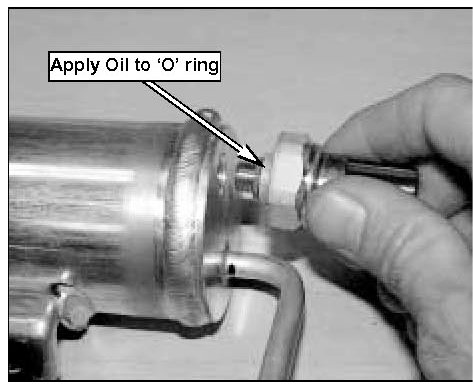

10. Apply a small amount of clean refrigerant oil to new 0 ring and install onto pressure switch. Install pressure switch into new receiver-drier. Torque switch to 104-129 lb-in. Do not overtighten.





11. Install a new 0 ring onto receiver-drier inlet (lower) line. 0 ring is already installed on receiver-drier outlet (upper) tube.

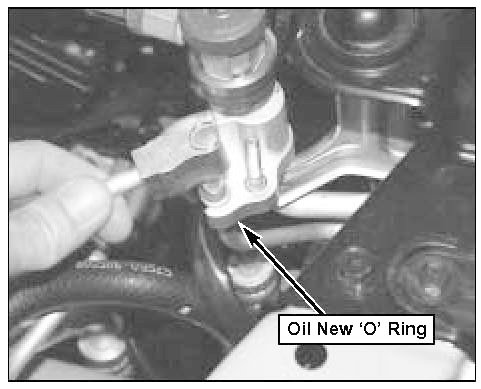

12. Apply a small amount of clean refrigerant oil to 0 rings on inlet and outlet lines.

NOTICE
Do not add refrigerant oil; new receiver-drier is supplied with correct amount of refrigerant oil.

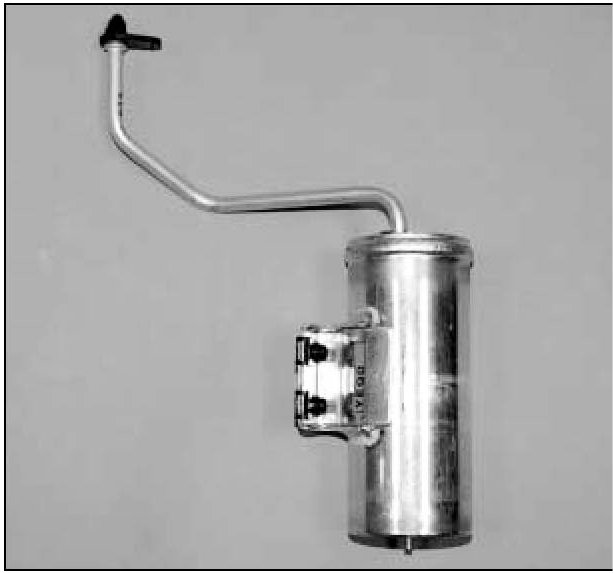

13. Install new receiver-drier, reconnect A/C lines.

^ Torque inlet (lower) line to 52-86 lb-in.

^ Torque outlet (upper) line to 44-51 lb-in. Torque mounting bolts to 44-51 lb-in.

CAUTION
Take care to avoid damage to condenser and bumper when installing receiver-drier into vehicle.

14. Reinstall radiator brackets.

15. Evacuate and recharge A/C system with 1.5lb (1 lb 8 oz) (680g) R-134a.





16. Apply Campaign 033 Completion Label to bulkhead above master cylinder.

AFFECTED PRODUCTION RANGE:

All Optima models with production dates from 11/14/02 through 4/16/03.

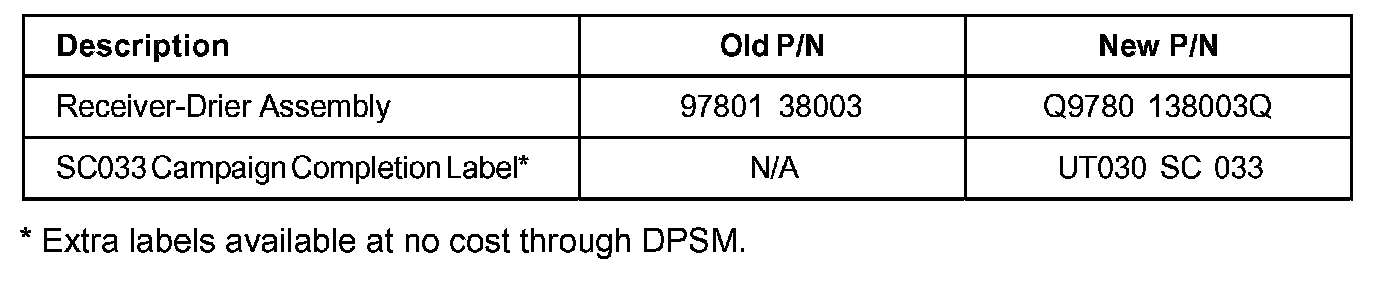

PART NUMBER INFORMATION:





WARRANTY INFORMATION:
