Displaying & Reading Trouble Codes

HI-SCAN CHECK
1. Turn the ignition OFF.

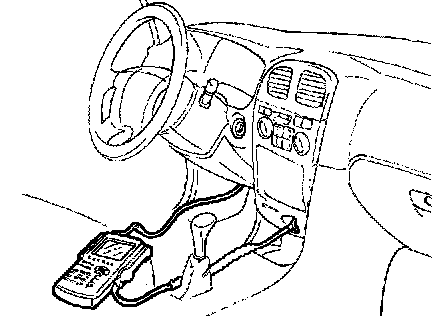

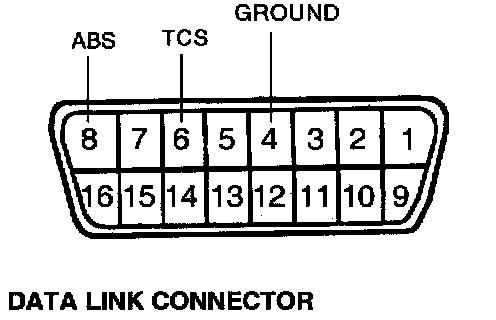

2. Connect the hi-scan to the data link connector located underneath low crash pad panel.
3. Turn the ignition ON.





4. Use the hi-scan to check the self-diagnosis codes.
After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults codes using the clear key.
5. Disconnect the hi-scan.

CONNECTOR CHECK
1. Remove the battery negative (-) terminal.
2. Disconnect the connectors and check terminals follow the troubleshooting procedure.

NOTE: When you check terminals, be sure to use enough small pin which is not damaged to the connector terminals.
