EBD (Electronic Brake-Force Distribution)

EBD (ELECTRONIC BRAKE-FORCE DISTRIBUTION)

EBD (ELECTRONIC BRAKE-FORCE DISTRIBUTION)
The EBD is additionally applied instead of the proportioning valve to make the ideal distribution of a fluid pressure to the front and rear brake to prevent the brakes from skidding in the event of rear wheel lock and to obtain a higher brake efficiency within the range of service brake application.

ADVANTAGES
^ Function improvement of base-brake system
^ Compensation of different friction coefficients
^ Elimination of proportioning valve
^ Failure recognition by warning lamp

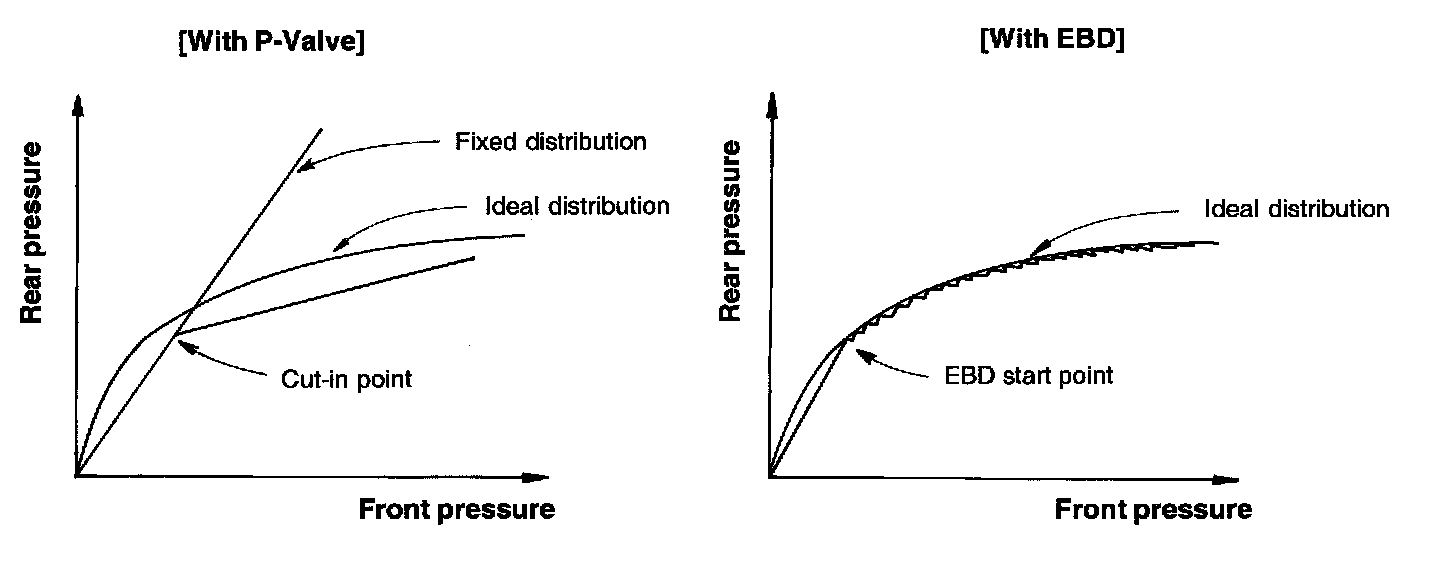

COMPARISON BETWEEN WITH P-VALVE AND WITH EBD
