Overhaul

Sun Roof:

DISASSEMBLY

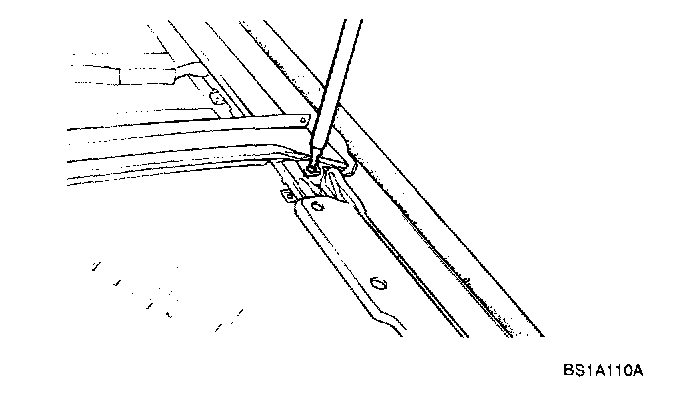

1. Remove the drip rail.

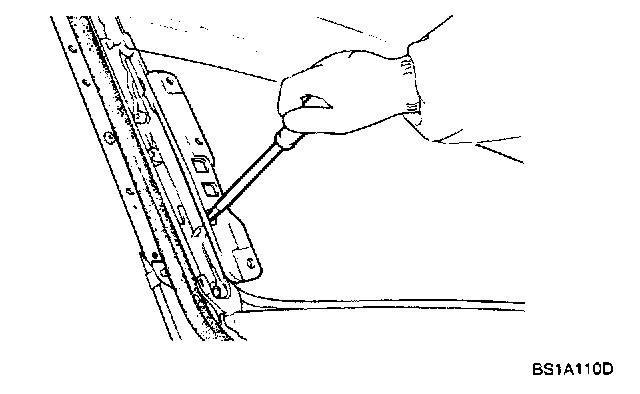

2. Remove the stopper.

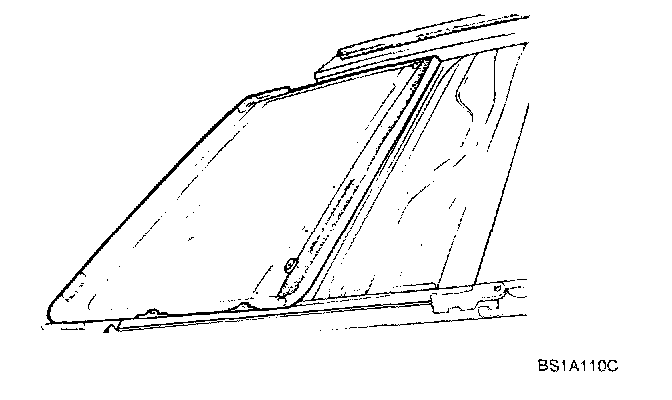

3. Remove the sunshade.

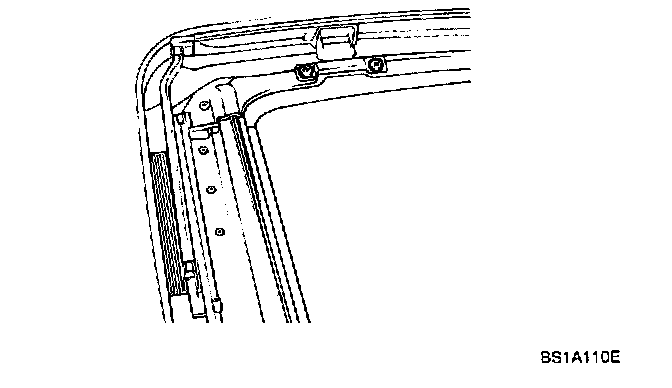

4. Remove the guide assembly.

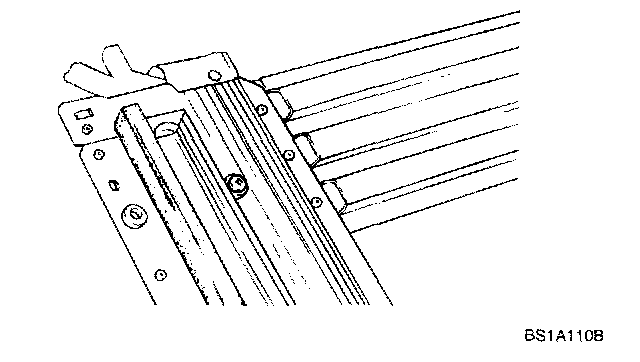

5. Remove the deflector.




6. Remove the motor assembly.

CAUTION: When removing the motor, the slider assembly should always be in the fully closed position. If there is a discrepancy between the glass position and the motor ring fully closed position, the sunroof will not operate correctly.

ASSEMBLY
Assembly is the reverse of disassembly.
