Front Door Panel: Service and Repair

Interior Trim:

REMOVAL

1. Disconnect negative battery cable.
2. Remove door garnish.
1. Unfasten garnish.
2. Disconnect electrical connector.

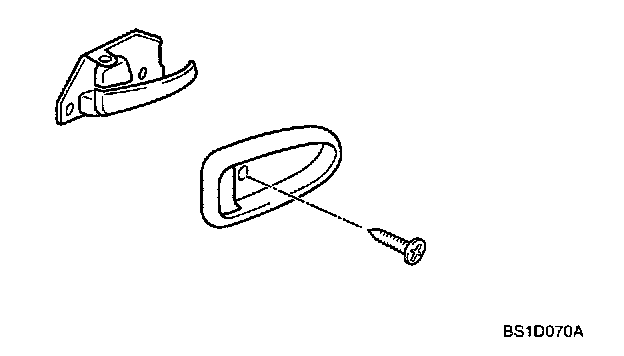

3. Remove inside handle cover.
1. Remove one screw.
2. Unfasten inside handle cover.

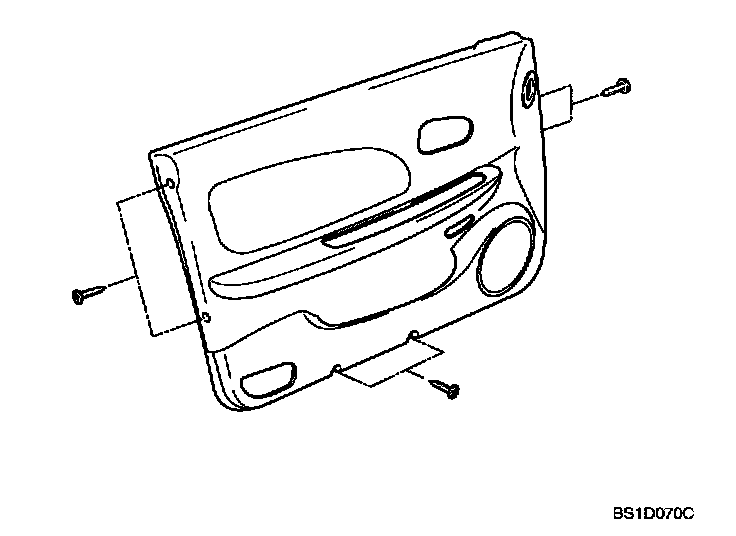

4. Remove door trim.




1. Remove one screw on pull handle bracket.




2. Remove two screws on right side of door trim.
3. Remove two screws and cover on left side of door trim.
4. Remove two screws on bottom of door trim.
5. Unfasten door trim.
6. Remove front door trim by lifting front door trim up.
7. Disconnect electrical connector.

INSTALLATION

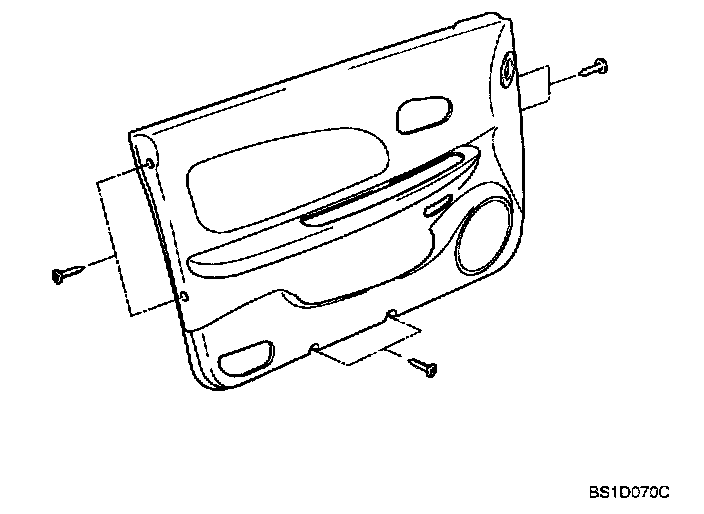

1. Install door trim.
1. Connect electrical connector.
2. Place front door trim.




3. Install two screws on bottom of door trim.
4. Install two screws and cover on left side of door trim.
5. Install two screws on right side of door trim.
6. Install one screw on pull handle bracket.

2. Install inside handle cover.
1. Fasten inside handle cover.
2. Install one screw and cover.

3. Install door garnish.
4. Connect negative battery cable.
