Home >> Kia >> 2002 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications

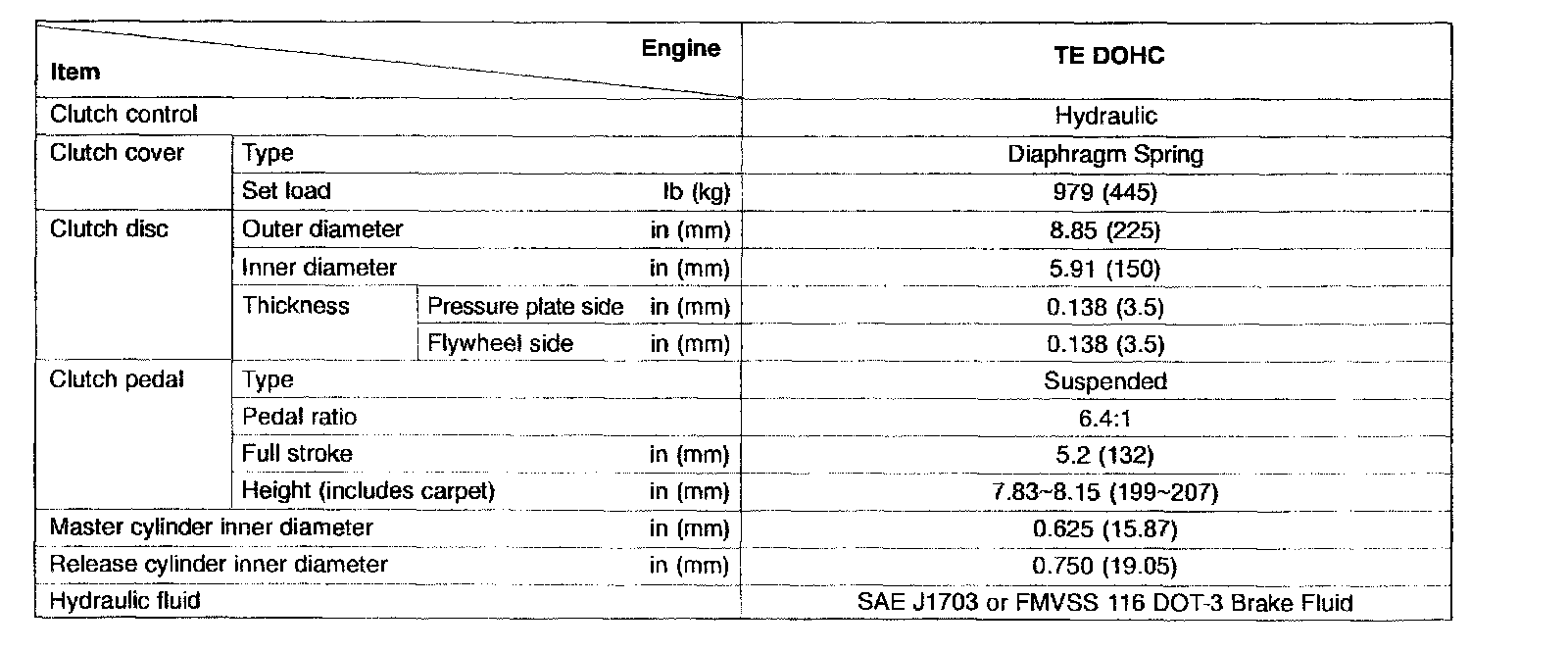

System Specifications

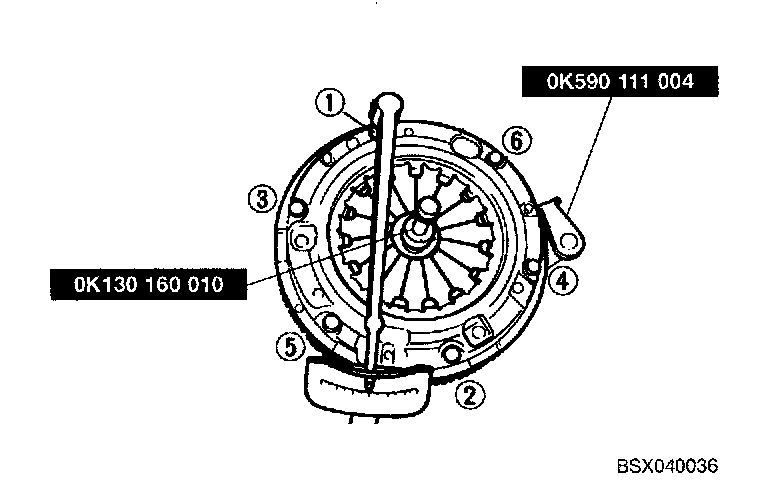

Tighten Clutch Cover to 17.6 - 26.5 Nm (13.0 - 19.5 lb. ft.)
