Jack and Safety Stand Positions

Jack And Safety Stand Positions

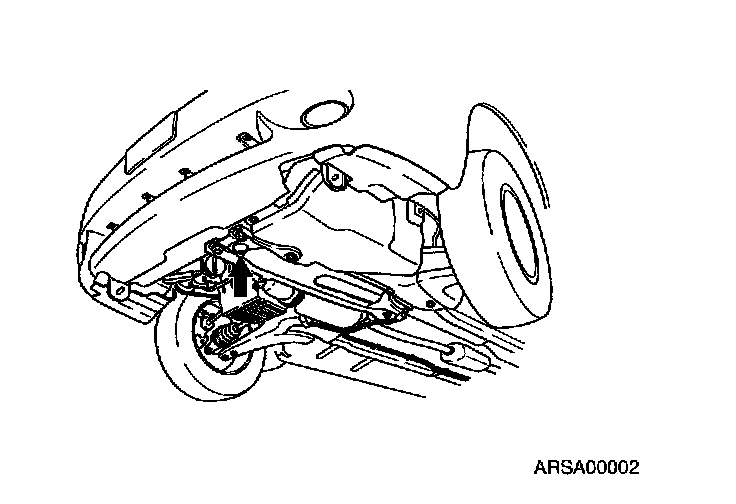

Front end




Jack position:
At the front crossmember

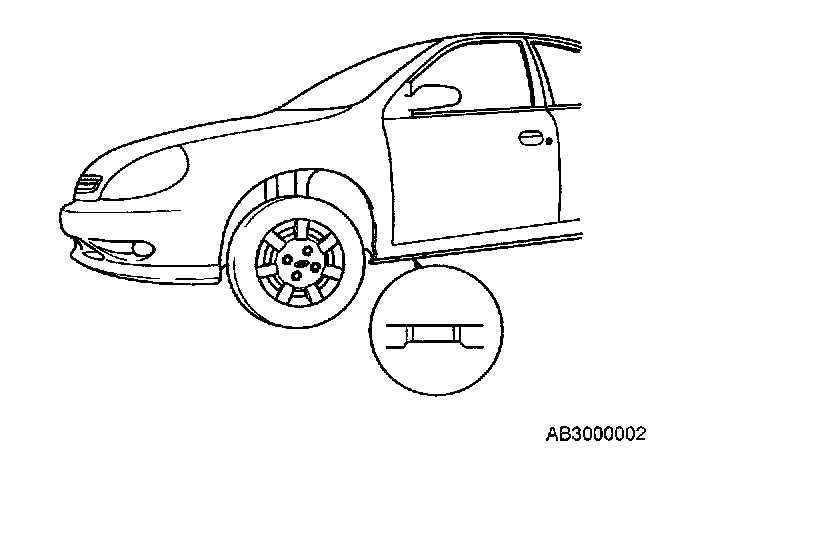

Safety stand positions:
On both sides of the body frame

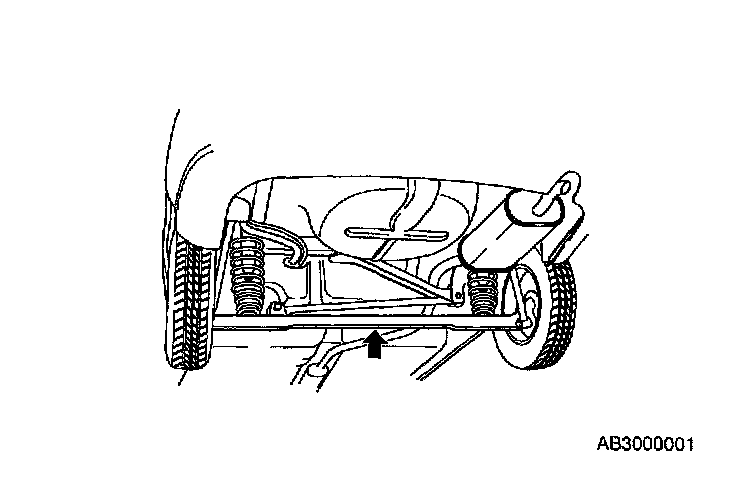

Rear end Jack position:
At the center of the rear crossmember

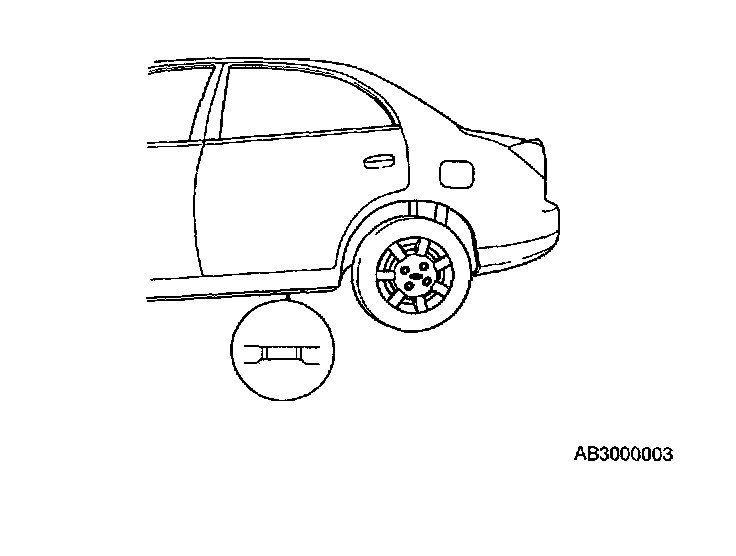

Safety stand positions:
On both sides of the body frame
