Rear Lap / Shoulder Belt Assembly
4 DOORRear lap/Shoulder belt assembly
Removal
1. Remove rear seat cushion.
2. Remove one bolt from side bolster.
3. Remove one bolt from lap belt mounting bracket.
4. Retract belt slowly as far as belt will go.

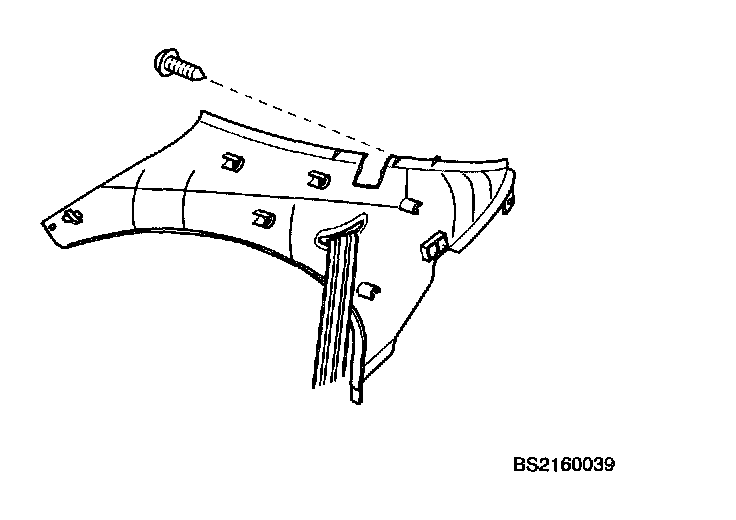

5. Remove C-pillar trim.
6. Remove one anchor bolt.
7. Fold rear seatback for the floor of body.
8. Remove package tray.
9. Remove one bolt and one sheet metal screw to attach retractor assembly.
Installation
1. Install retractor mounting bolt and sheet metal screw.
Tighten mounting bolt to 28 - 58 lb.ft (39 - 80 N.m, 3.9 - 8.0 kg.m)
2. Install package tray.
3. Install one anchor bolt.
Tighten mounting bolt to 28 - 58 lb.ft (39 - 80 N.m, 3.9 - 8.0 kg.m)
4. Install C-pillar trim.
5. Install one bolt through lap belt mounting bracket.
Tighten mounting bolt to 28 - 58 lb.ft (39 - 80 N.m, 3.9 - 8.0 kg.m)
6. Install side bolster.
7. Install rear seat cushion.
5 DOOR
Rear Lap/Shoulder Belt Assembly
Removal
1. Remove rear seat cushion.
2. Remove one bolt from side bolster.
3. Remove one bolt from lap belt mounting bracket.
4. Retract belt slowly as far as belt will go.
5. Remove C-pillar trim.
6. Remove one anchor bolt.
7. Fold rear seatback for the floor of body.
8. Remove package tray.
9. Remove one bolt and one sheet metal screw to attach retractor assembly.
Installation
1. Install retractor mounting bolt and sheet metal screw.
Tighten mounting bolt to 29 - 58 lb.ft (38 - 78 N.m, 3.9 - 8.0 kg.m)
2. Install package tray.
3. Install one anchor bolt.
Tighten anchor bolt to 29 - 58 lb.ft (38 - 78 N.m, 3.9 - 8.0 kg.m)
4. Install C-pillar trim.
5. Install one bolt through lap belt mounting bracket.
Tighten mounting bracket bolt to 29 - 58 lb.ft (38 - 78 N.m, 3.9 - 8.0 kg.m)
6. Install side bolster.
7. Install rear seat cushion.
