Fresh and Recirculation Actuator

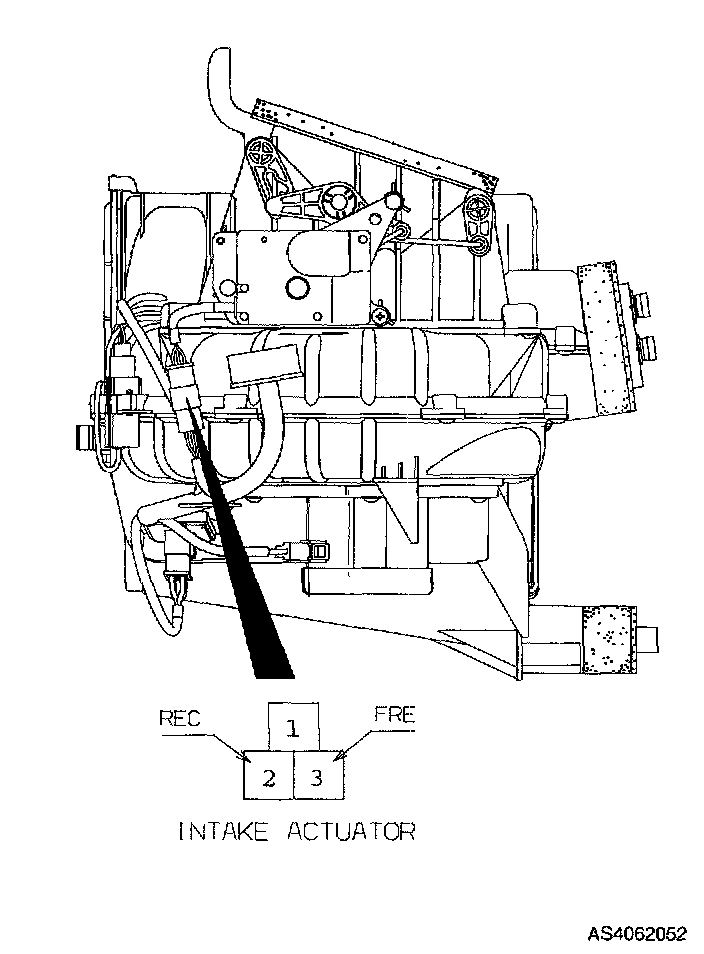

Fresh/Recirculation actuator
1. Verify that fresh/recirculation actuator operates to fresh direction when applying 12 V to fresh/recirculation actuator terminal 1 and grounding fresh/recirculation actuator terminal 3.




2. Verify that fresh/recirculation actuator operates to recirculation direction when grounding fresh/recirculation actuator terminal 2.
3. If not as specified, replace the fresh/recirculation actuator.
