Symbols

Symbols:

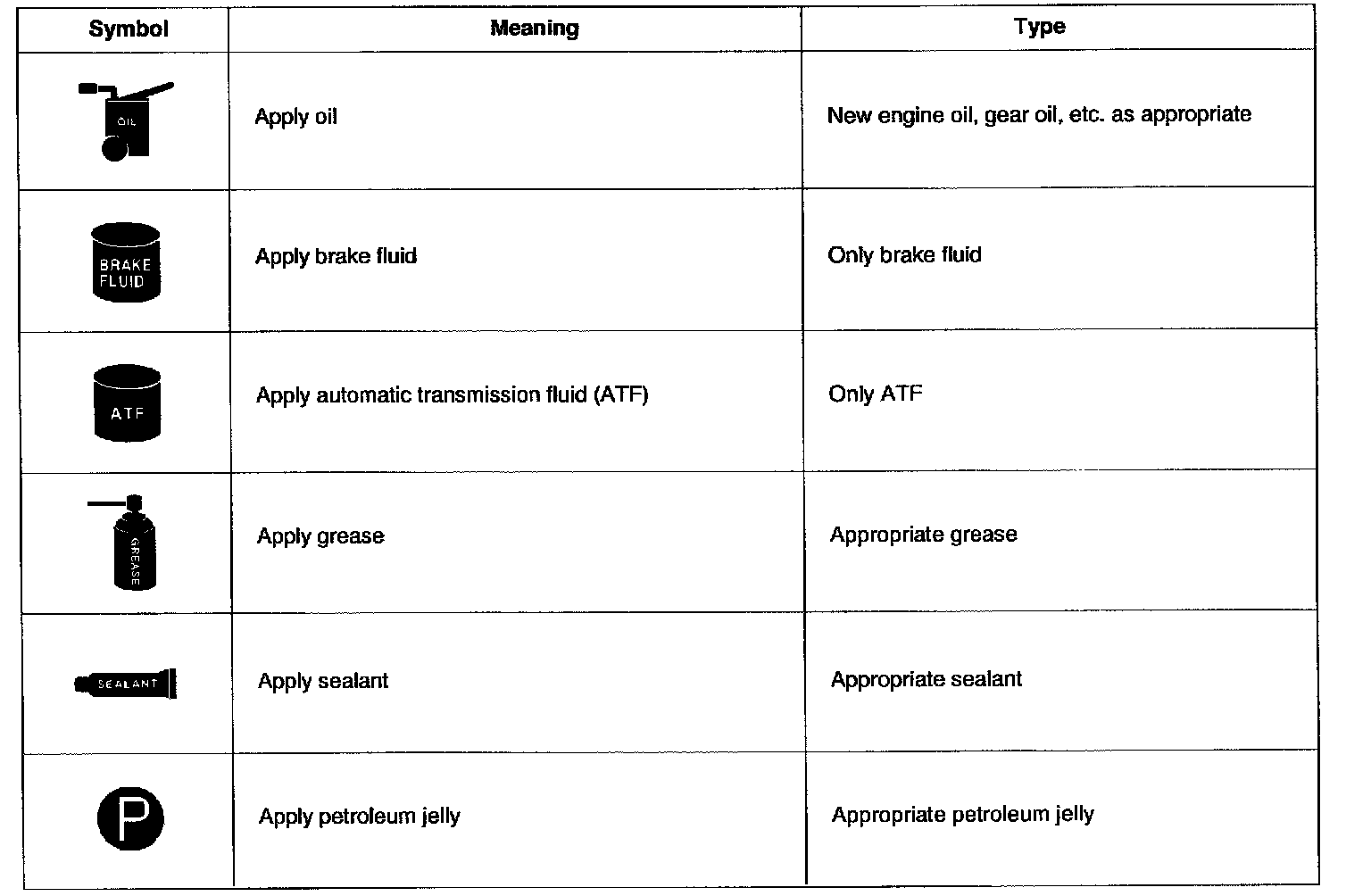

There are six primary symbols used to complement illustrations. These symbols indicate the areas to apply such materials during service.

NOTE: Whenever special oil or grease is required, it will be identified in figure.
