F-1 - Turn & Hazard Flasher Unit
F-1 - Turn & Hazard Flasher Unit

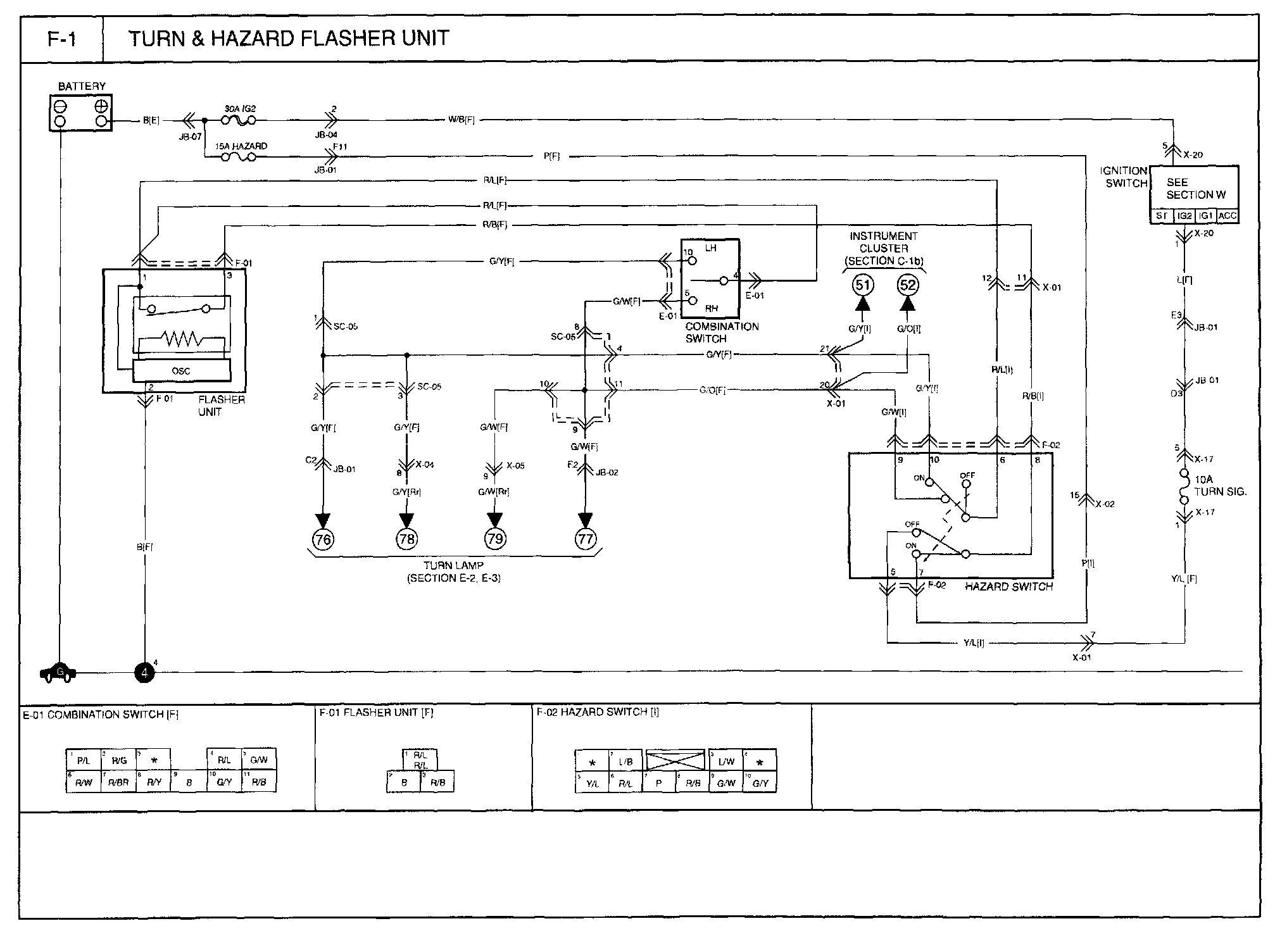

F-1 - Turn & Hazard Flasher Unit Circuit:
