Home >> Kia >> 2002 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connectors >> G-1A - Heater & Air Conditioner System

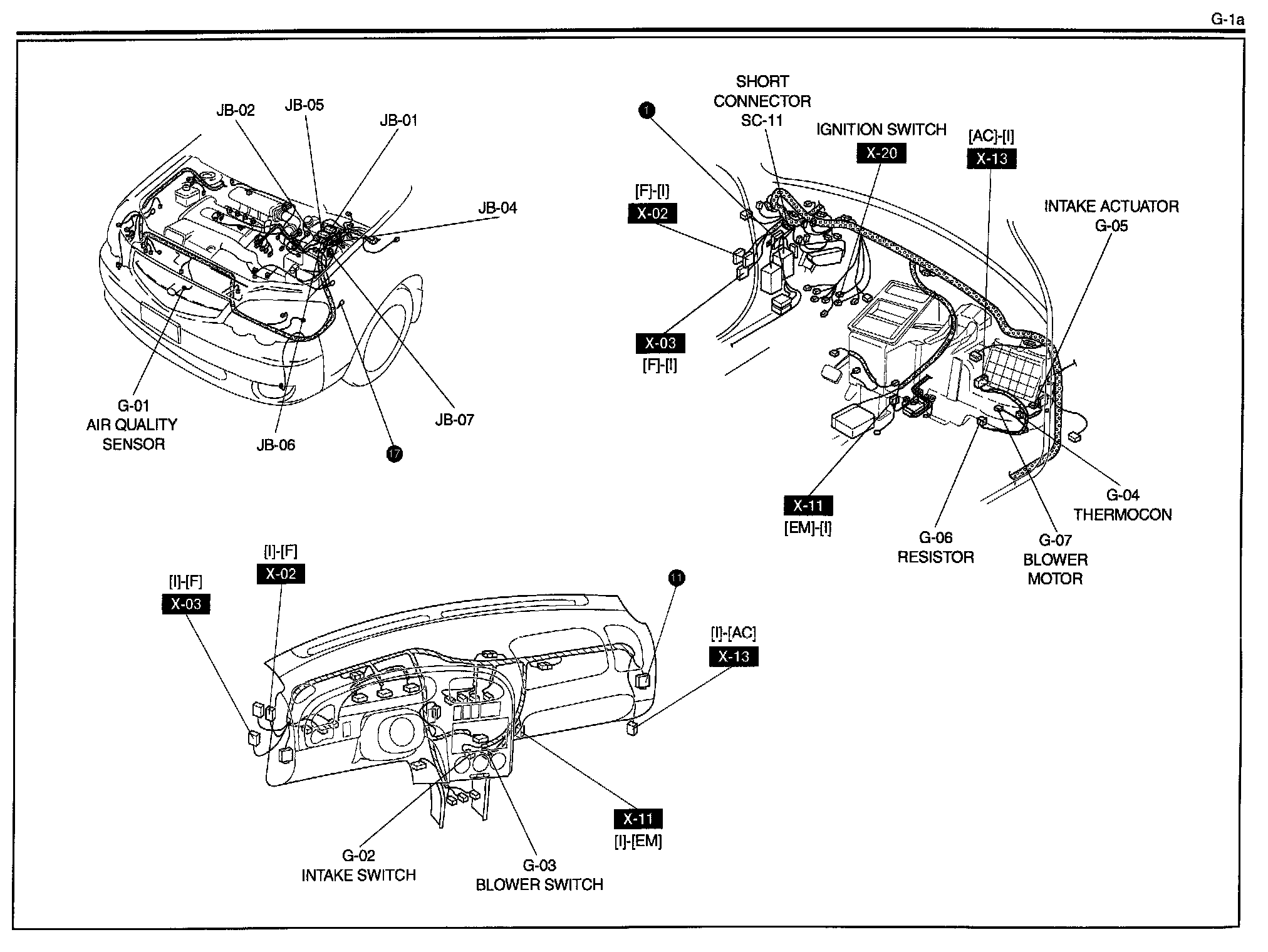

G-1A - Heater & Air Conditioner System

G-1a - Heater & Air Conditioner System Harness / Connectors Symbols:
