FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2002
>>
Spectra GSX L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sections A Thru Z
>>
A - Starting and Charging System
A - Starting and Charging System

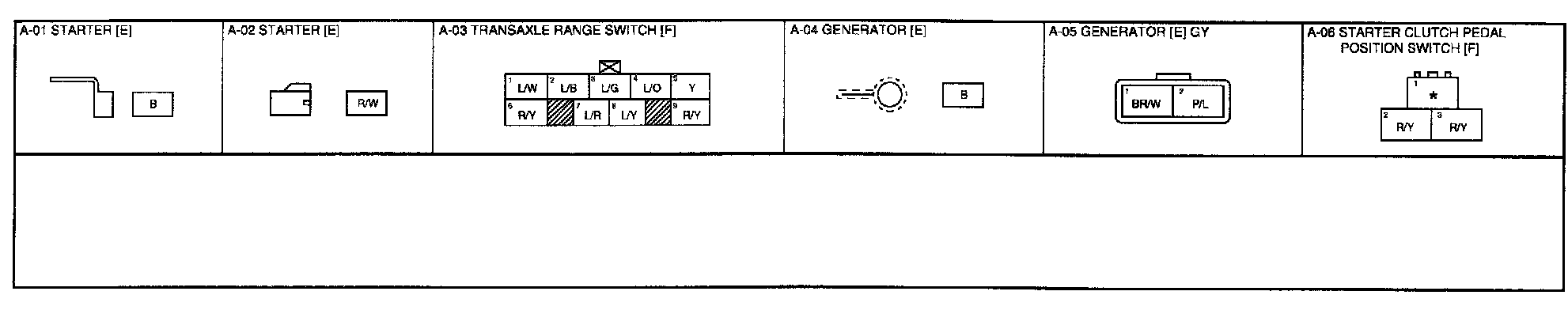

A - Starting System, Charging System Connectors:
