Brake Hose/Line: Testing and Inspection

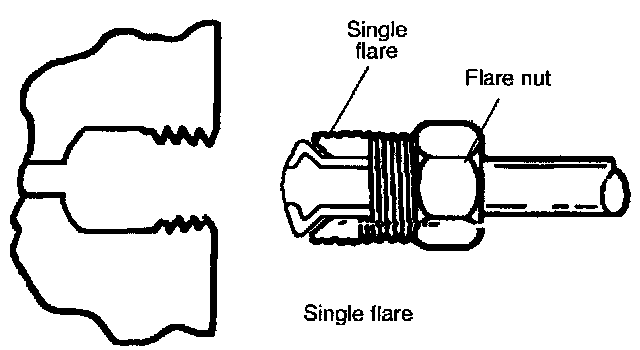

Brake pipe





Check for cracks, damage and corrosion of brake pipe. Replace pipe or flare nut(s) if necessary.

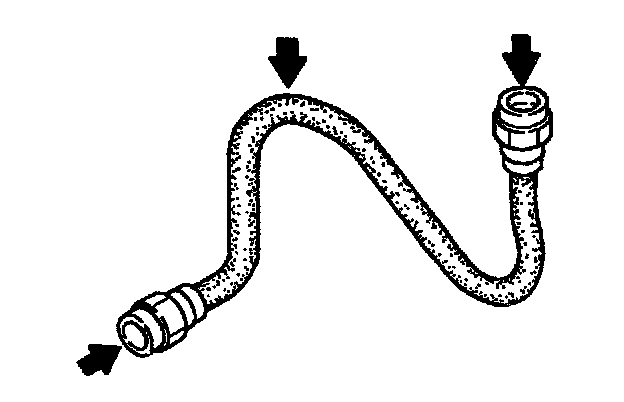

Flexible hose





Check for scars, cracks and swelling of flexible hose. Replace hose if necessary.
